Home >> Nissan-Datsun >> 2005 >> Altima SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Transmission (Re5F22A) >> Repair For Component Parts >> Differential Gear Assembly >> Components

Differential Gear Assembly: Components

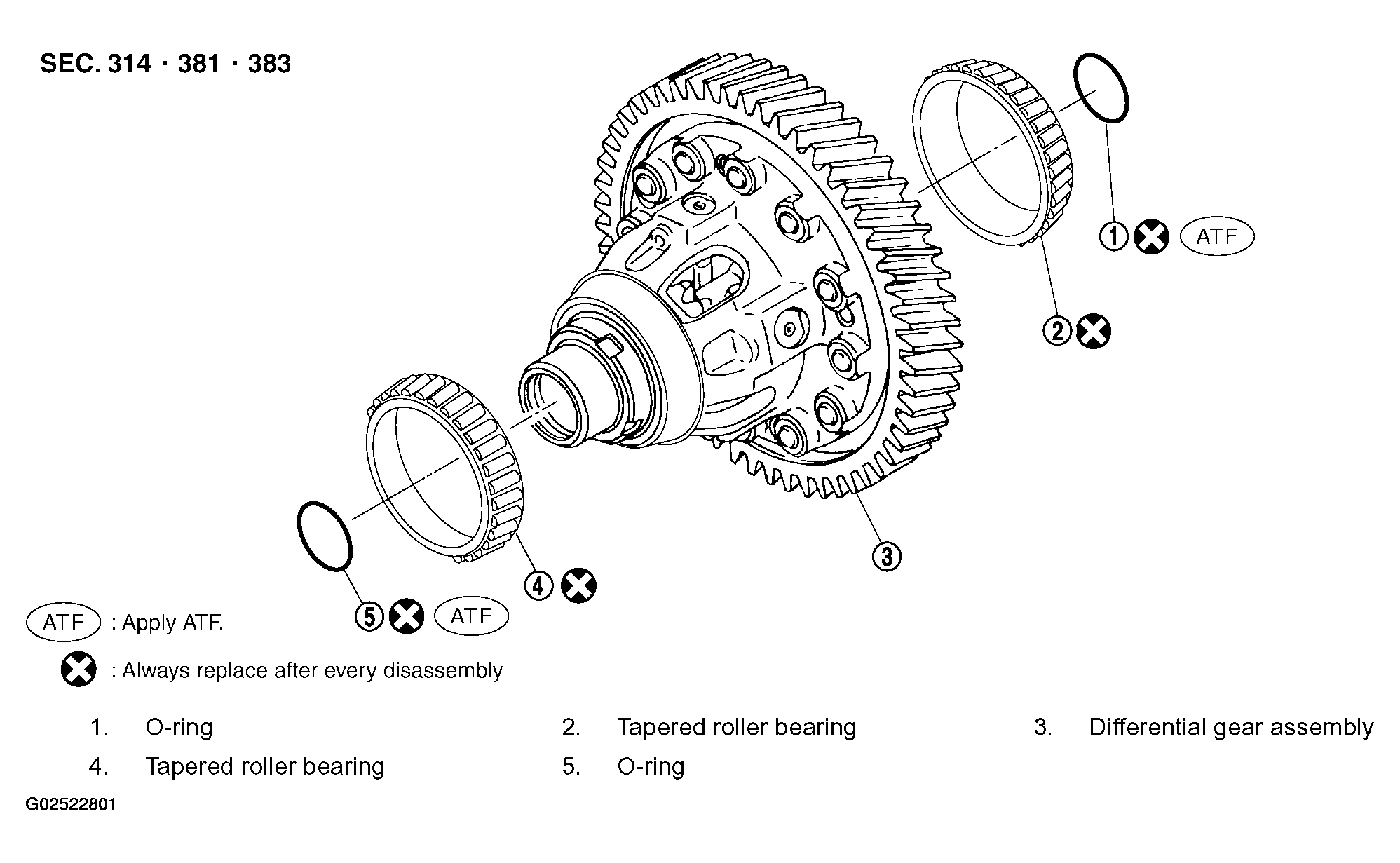

Fig 1: Identifying Differential Gear Assembly Components

G02522801

Courtesy of NISSAN MOTOR CO., U.S.A.
