TCM Initialization Patterns

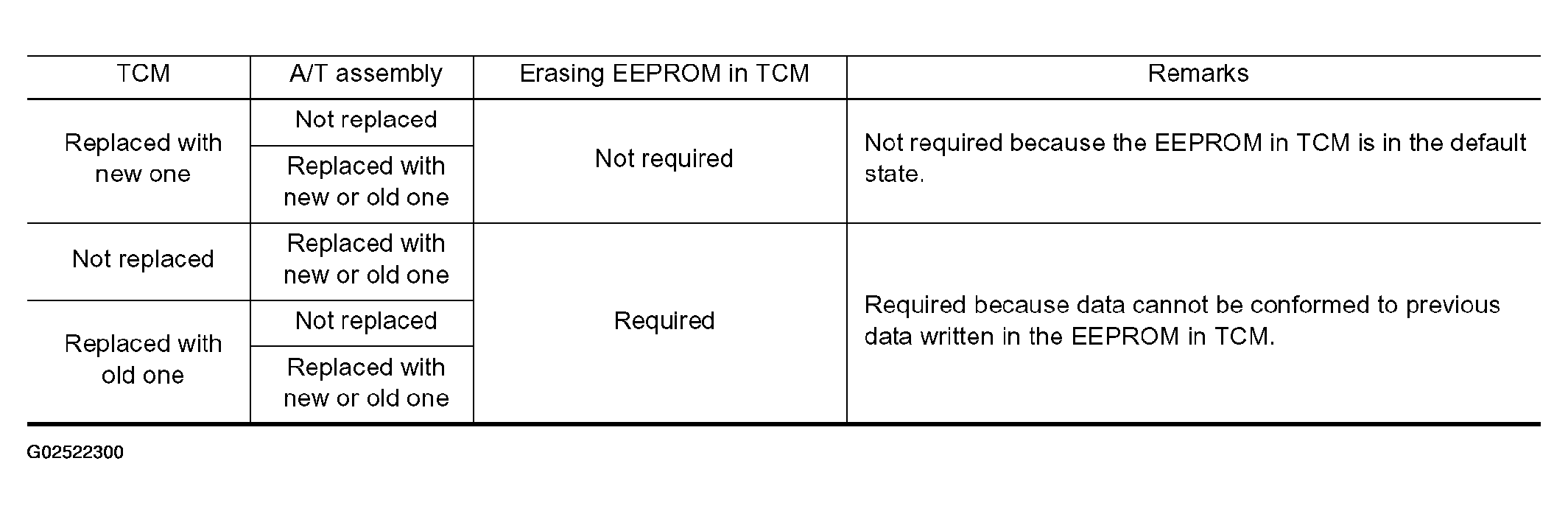

Fig 1: TCM Initialization Patterns Chart

G02522300

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: "Old one" is the TCM or A/T assembly that has been used on other vehicles.
