Revolution Sensor Replacement

  1. Remove intake air duct.
  2. Disconnect electrical connector.
  3. Remove revolution sensor from A/T.
  4. Reinstall any part removed.
NOTE: Do not reuse seal bolt.

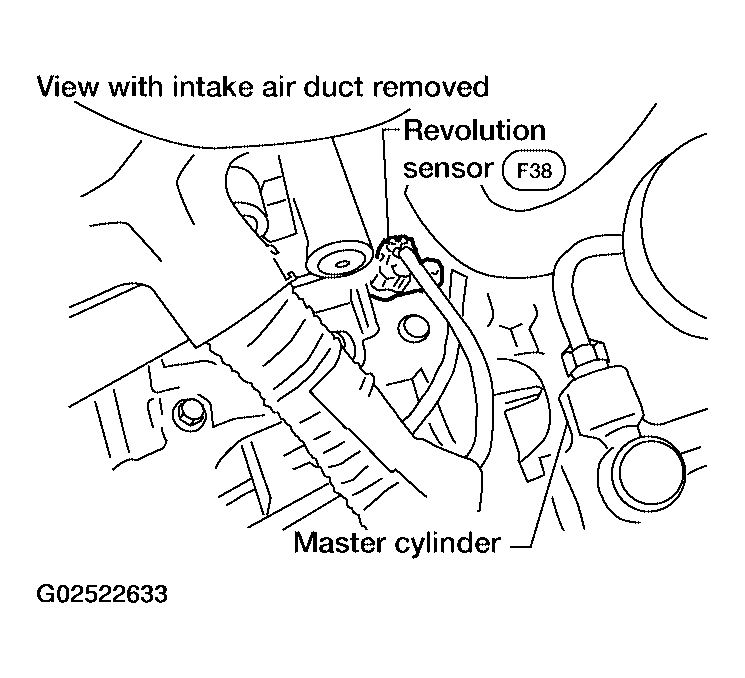

Fig 1: Identifying Location Of Revolution Sensor
G02522633Courtesy of NISSAN MOTOR CO., U.S.A.
