On-Vehicle Service: Installation

Installation is the reverse order of removal.

NOTE: Do not reuse sealing parts.

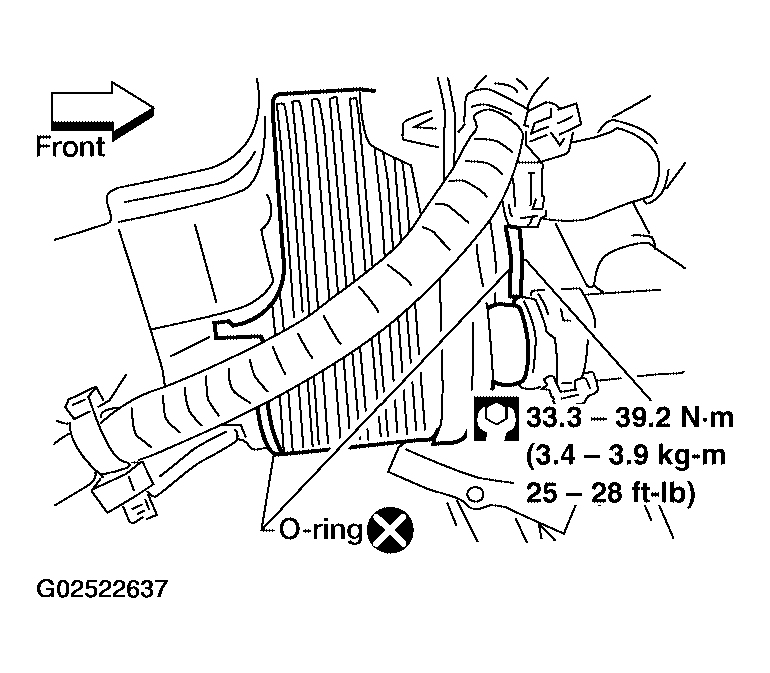

Fig 1: Installing Hose Clamps And Hoses From ATF Cooler - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
