Component Inspection

Make sure that ATF cooler valve is fully opened at room temperature.
Dimension "A": More than 72.0 mm (2.835 in)

A: Distance between ATF cooler valve port end face and valve shaft end face.

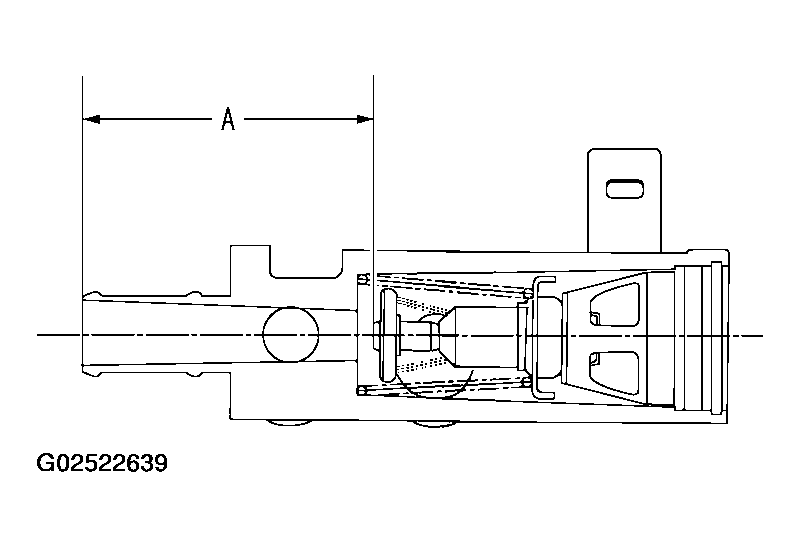

Fig 1: Identifying Distance Between ATF Cooler Valve Port End Face And Valve Shaft End Face
Courtesy of NISSAN MOTOR CO., U.S.A.
Submerge ATF cooler valve in a water-filled container, and then heat it up with temperature of over 82°C (180°F) for 10 minutes more.

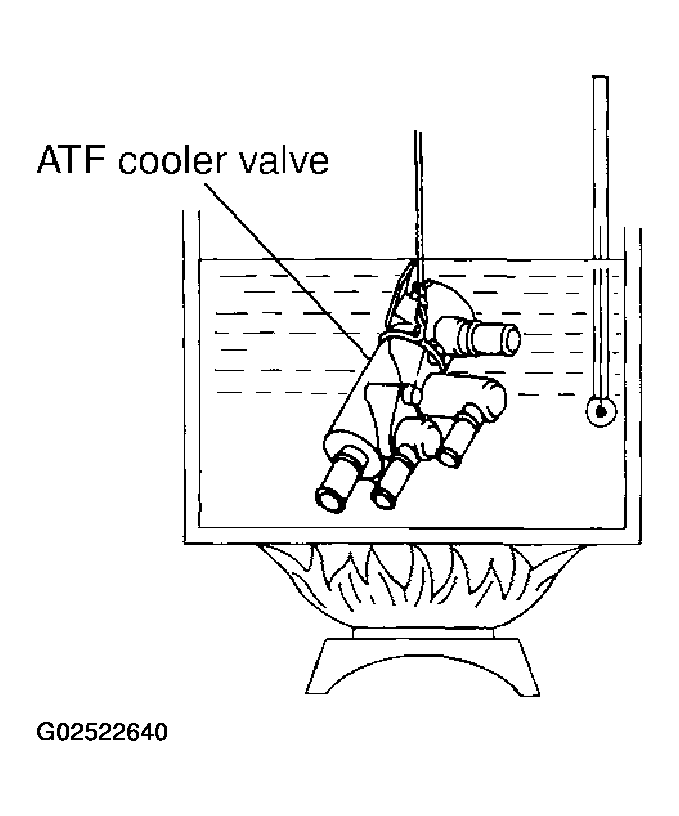

Fig 2: Submerging ATF Cooler Valve In A Water-Filled Container
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that ATF cooler valve is fully closed.
Dimension "A": Less than 66.5 mm (2.618 in)

A: Distance between ATF cooler valve port end face and valve shaft end face.

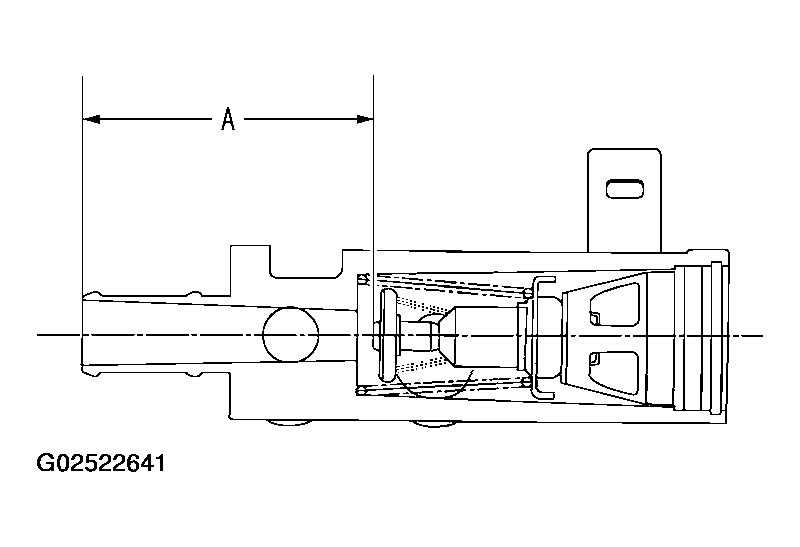

Fig 3: Checking ATF Cooler Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
