A/T Fluid Temperature Sensor

  1. Remove side cover. Refer to "SIDE COVER ".
  2. Disconnect A/T fluid temperature sensor.
  3. Check resistance between terminals 4 and 8.

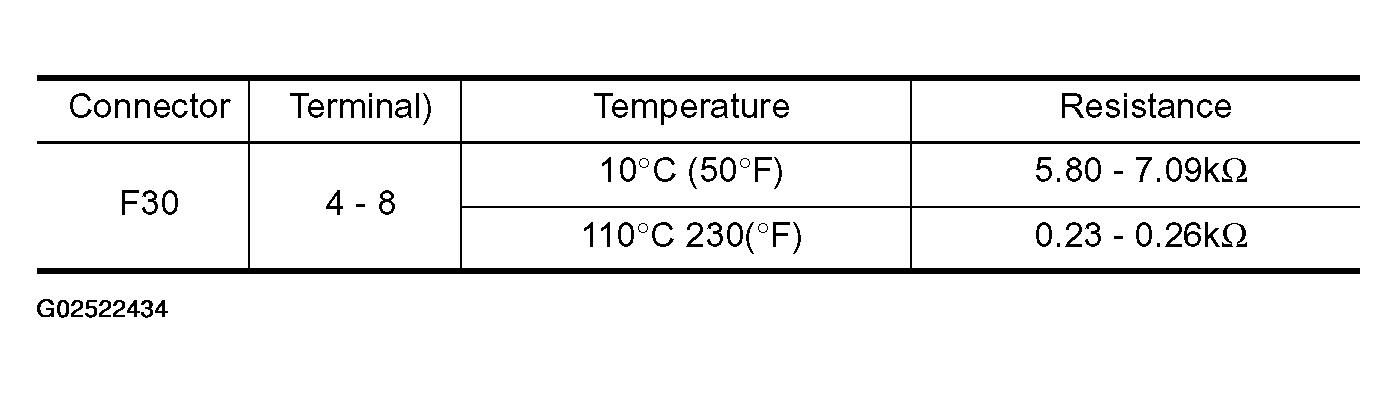

    Fig 1: Terminal Cord Assembly Terminals Resistance Reference Chart
    G02522434Courtesy of NISSAN MOTOR CO., U.S.A.

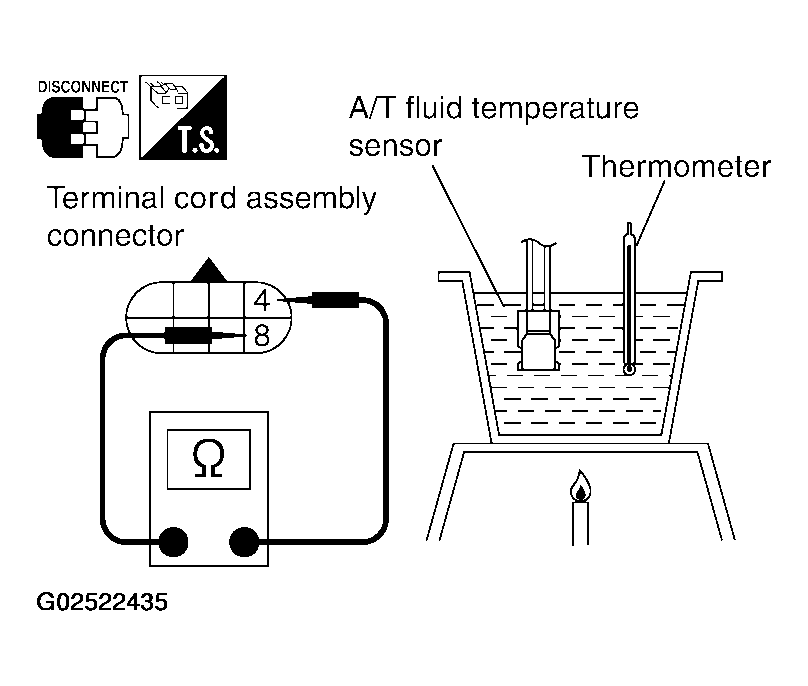

    Fig 2: Checking Resistance Between Terminal Cord Assembly Terminals 4 And 8
    G02522435Courtesy of NISSAN MOTOR CO., U.S.A.
