Shift Lock Solenoid

CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.
SHIFT LOCK SOLENOID CONNECTOR TERMINAL CONNECTION

Connector Terminal
M34 9 (Battery voltage)- 10 (Ground)

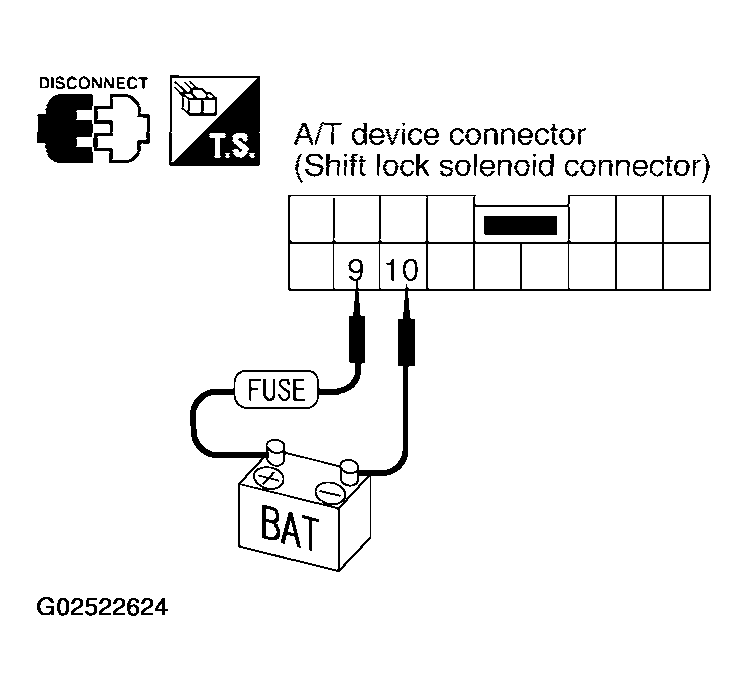

Fig 1: Checking Shift Lock Solenoid Operation
G02522624Courtesy of NISSAN MOTOR CO., U.S.A.
