Control System Outline

The automatic transaxle senses vehicle operating conditions through various sensors or signals. It always controls the optimum shift position and reduces shifting and lock-up shocks.

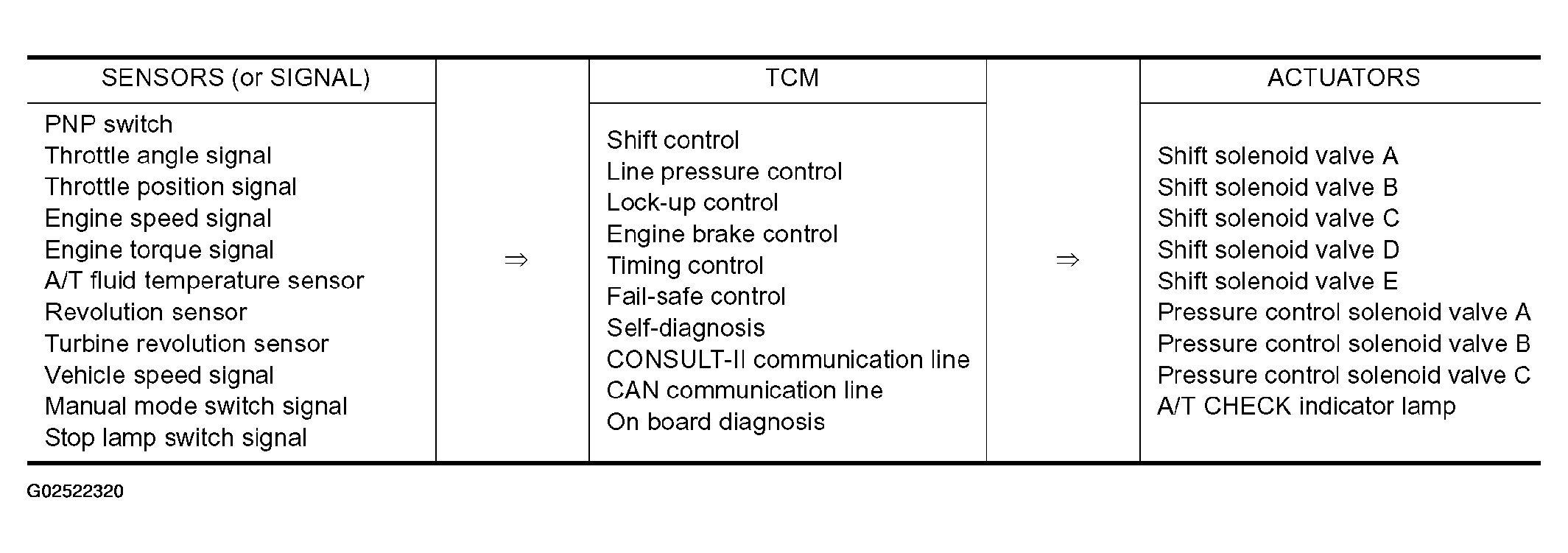

Fig 1: Sensors, TCM And Actuators Reference Chart
G02522320Courtesy of NISSAN MOTOR CO., U.S.A.
