Home >> Nissan-Datsun >> 2005 >> Altima SE-R, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Front Suspension Member >> Removal and Installation >> Notes

Removal and Installation: Notes

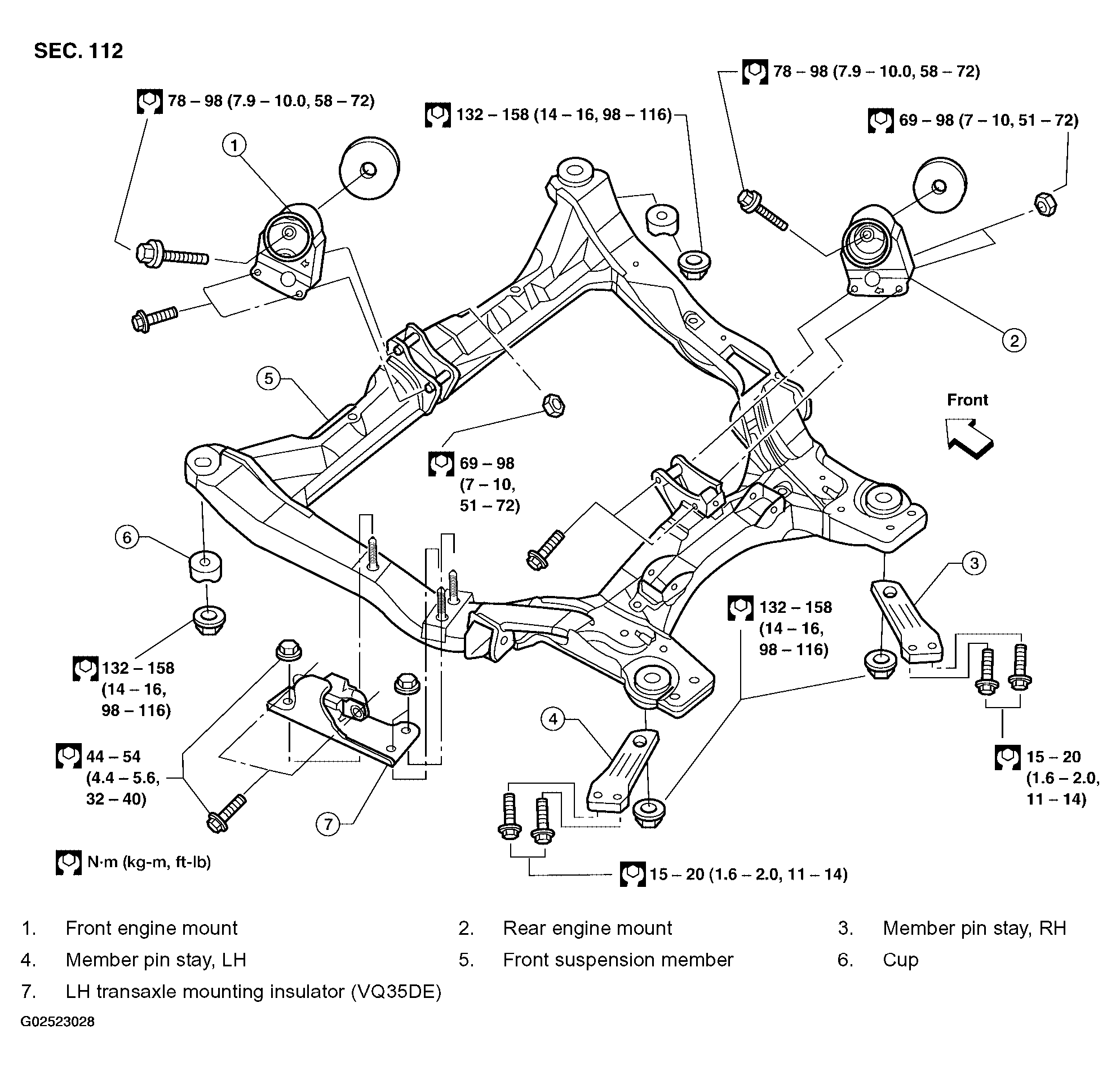

Fig 1: Identifying Front Suspension Member Components

G02523028

Courtesy of NISSAN MOTOR CO., U.S.A.
