Front Wheel Turning Angle

  1. Rotate steering wheel all the way right and left; measure turning angle. Refer to "GENERAL SPECIFICATIONS (FRONT) ".
  2. If it is not within specifications, check rack stroke. Refer to "STEERING GEAR AND LINKAGE ".

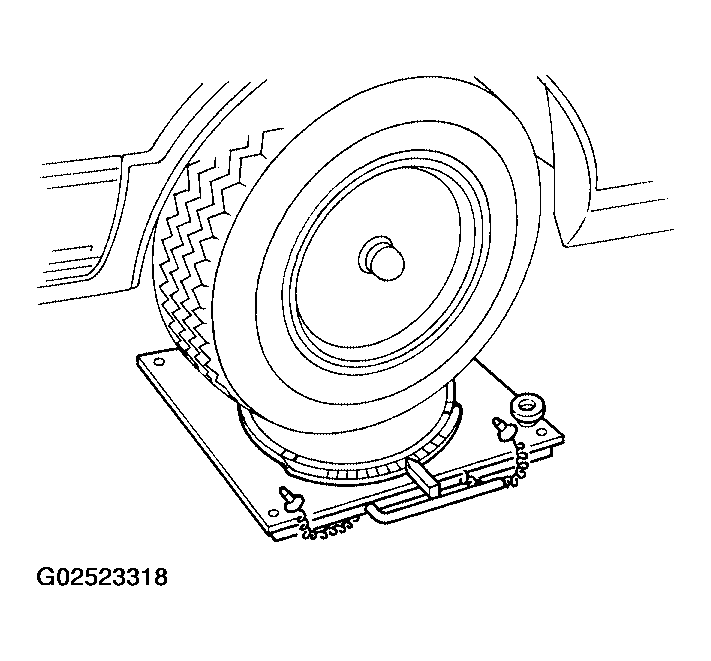

    Fig 1: Checking Front Wheel Turning Angle
    G02523318Courtesy of NISSAN MOTOR CO., U.S.A.
