Section 7 (Clutch)
>>
Operating Cylinder
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

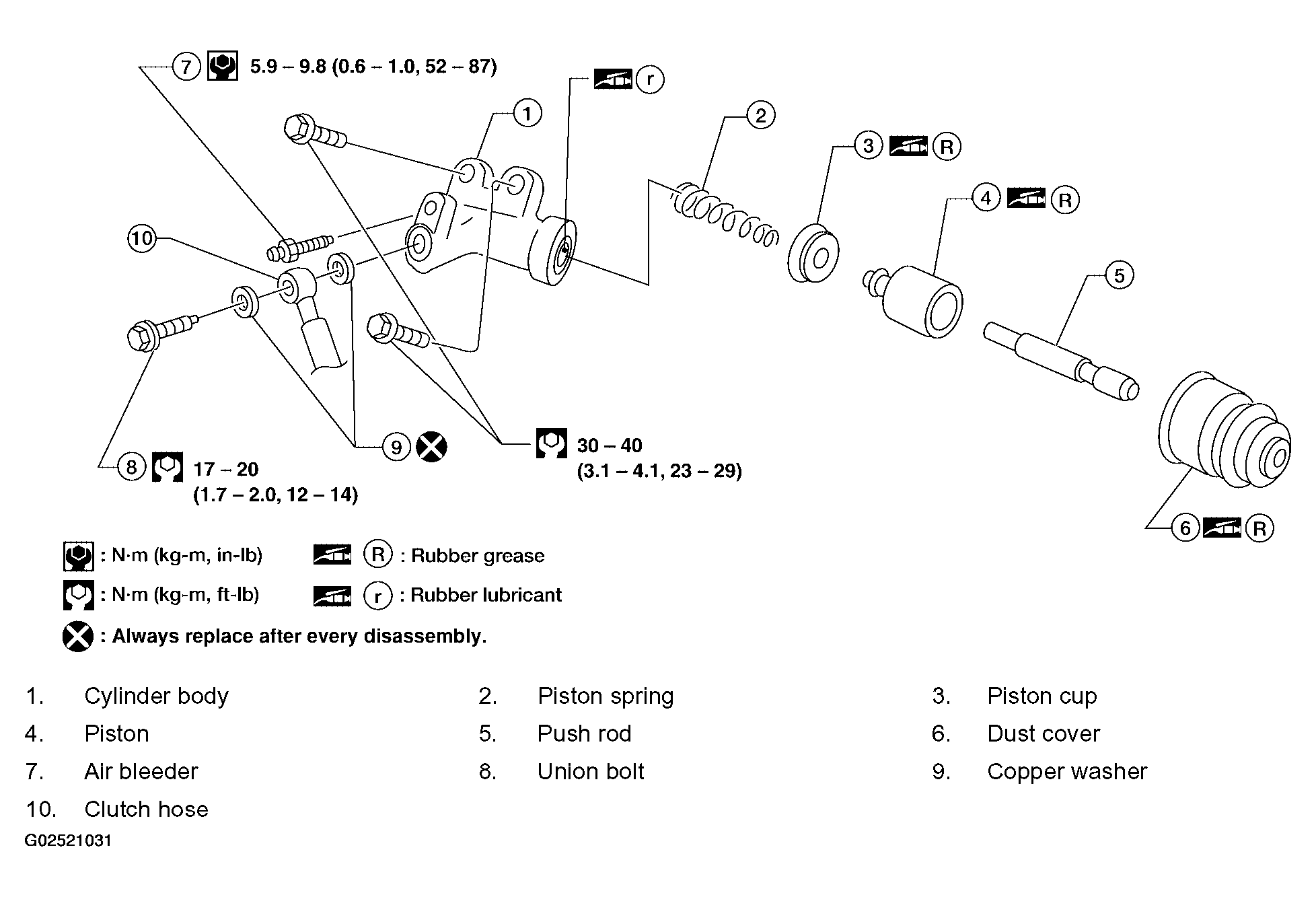

Fig 1: Identifying Operating Cylinder Components
Courtesy of NISSAN MOTOR CO., U.S.A.
