Clutch Master Cylinder: Components: Notes

WARNING: This page is about a different variant/trim than selected.

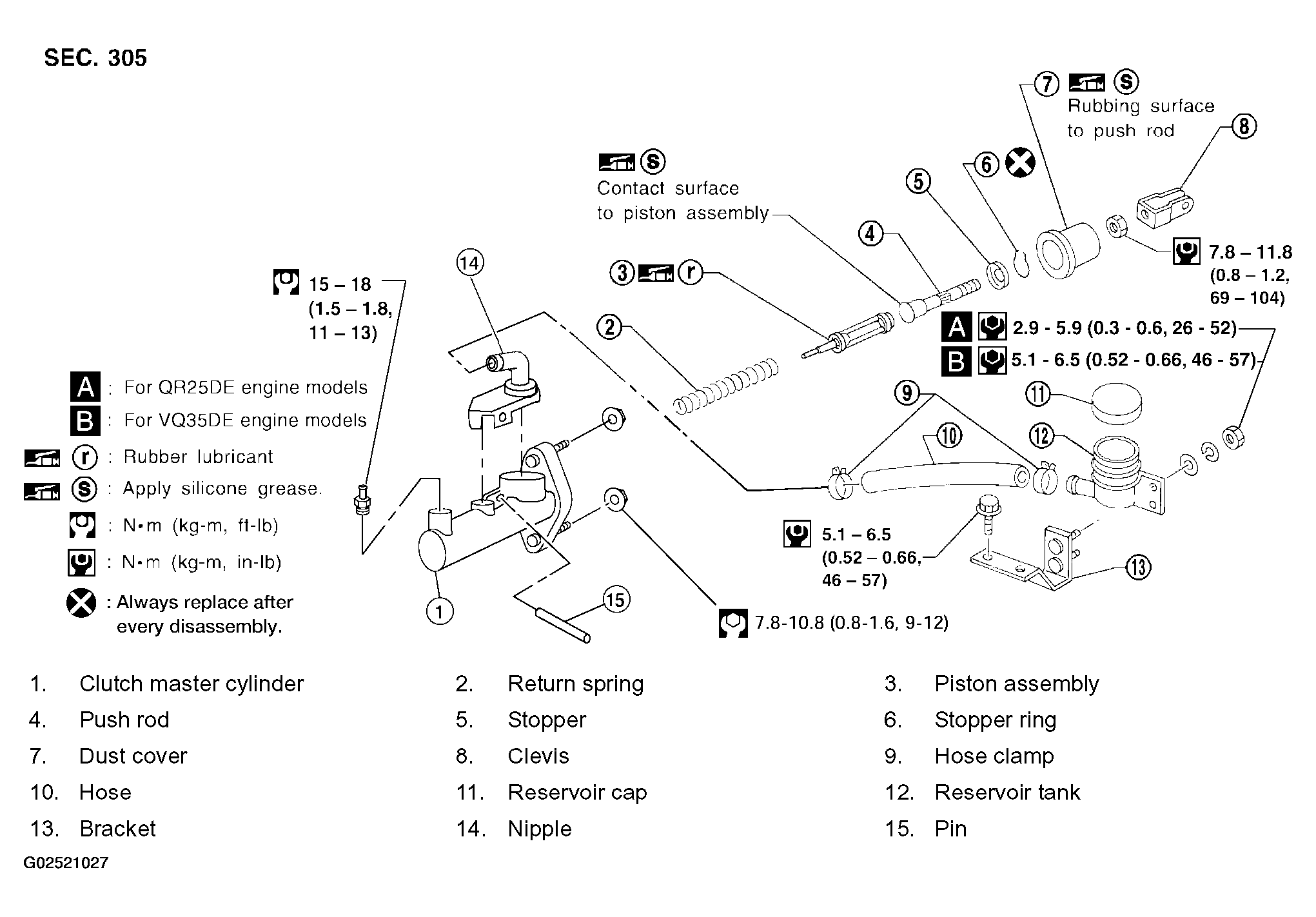

Fig 1: Identifying Clutch Master Cylinder Components
G02521027Courtesy of NISSAN MOTOR CO., U.S.A.
