Section 5 (Automatic Transmission (Re4F04B))
>>
Shift Control System
>>
Control Device
Control Device
WARNING:
This page is about a different variant/trim than selected.

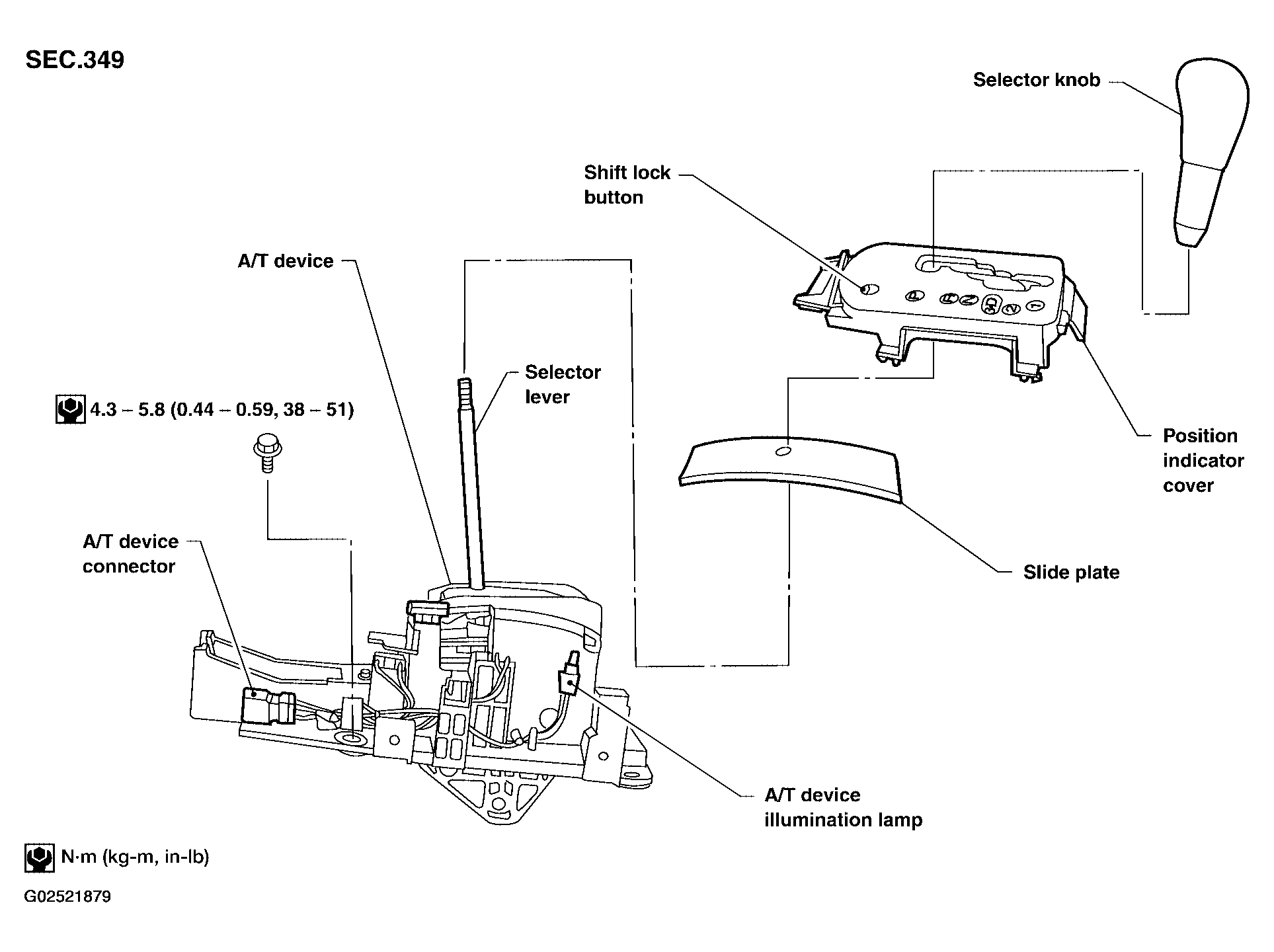

Fig 1: Shift Control System Replacement Components (Control Device) -- With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
