Final Drive: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove final gear using suitable tool.

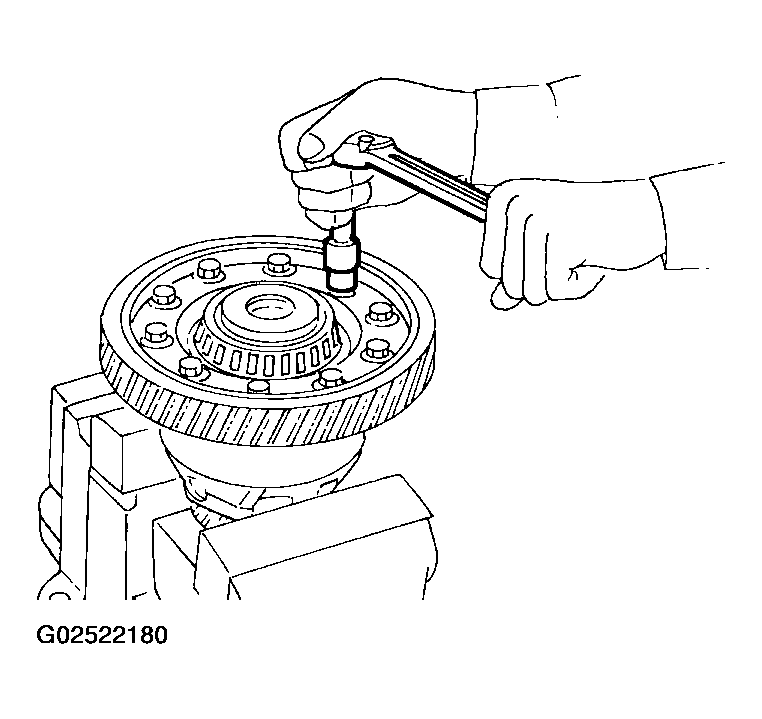

Fig 1: Removing Final Gear Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Press out differential side bearings using Tool.
Tool number: ST3301001 (J-22888-D)

Tool number: ST33061000 (J-8107-2)

CAUTION: Be careful not to mix up the right and left bearings.

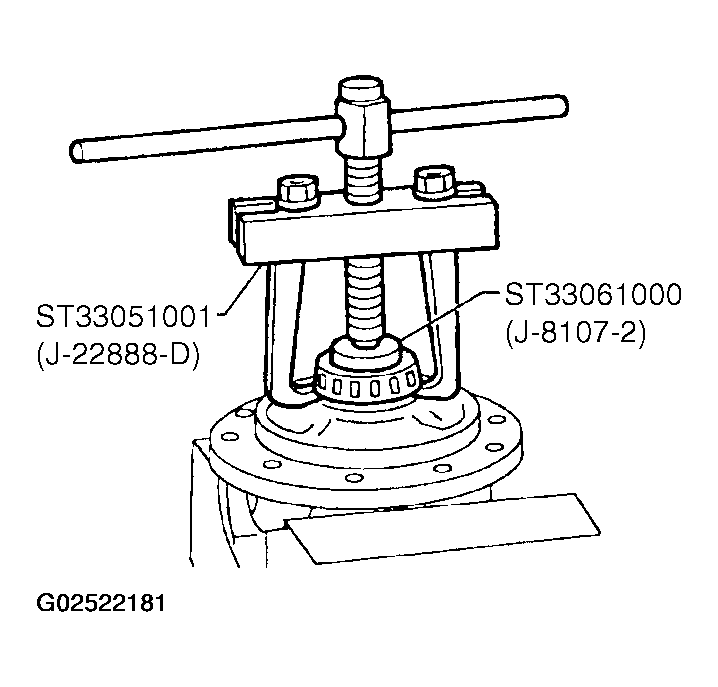

Fig 2: Removing Differential Side Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side bearing outer race and side bearing adjusting shim from transaxle case using Tool.
Tool number: KV381054S0 (J-34286)

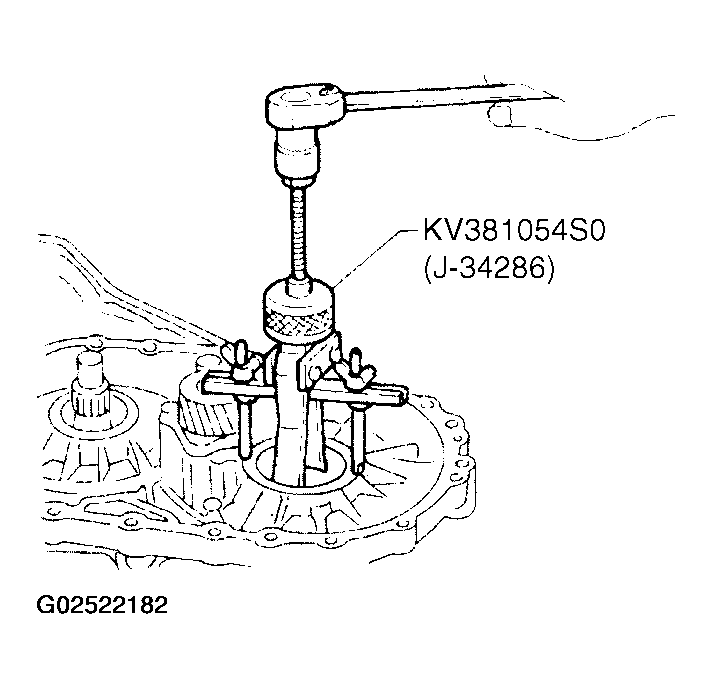

Fig 3: Removing Differential Side Bearing Outer Race And Side Bearing Adjusting Shim From Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove speedometer drive gear.

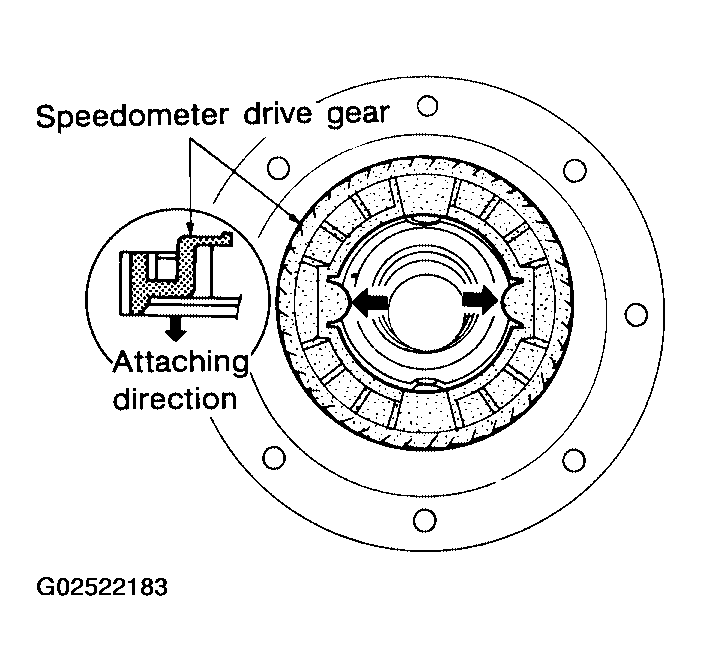

Fig 4: Removing Speedometer Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out pinion mate shaft lock pin using Tool.
Tool number: KV32101000 (J-25689-A)

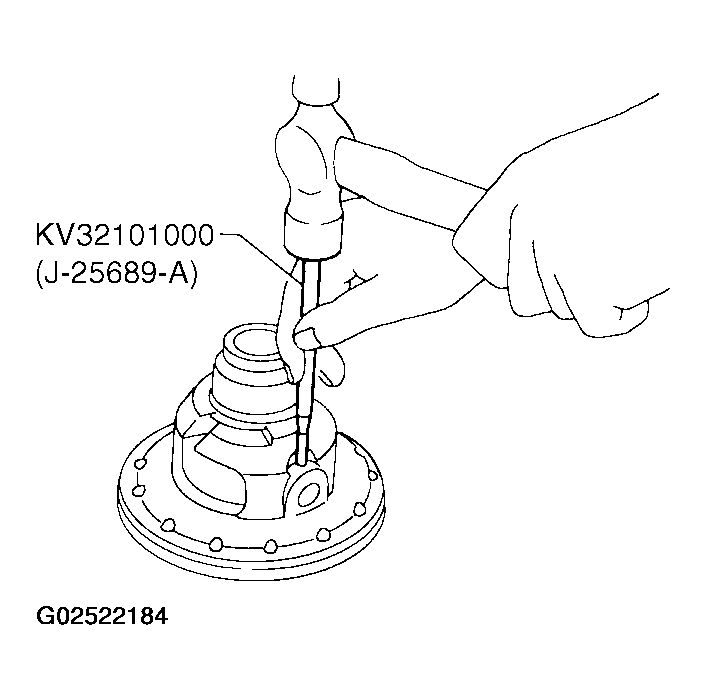

Fig 5: Removing Pinion Mate Shaft Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Draw out pinion mate shaft lock pin.
Remove pinion mate gears and side gears.

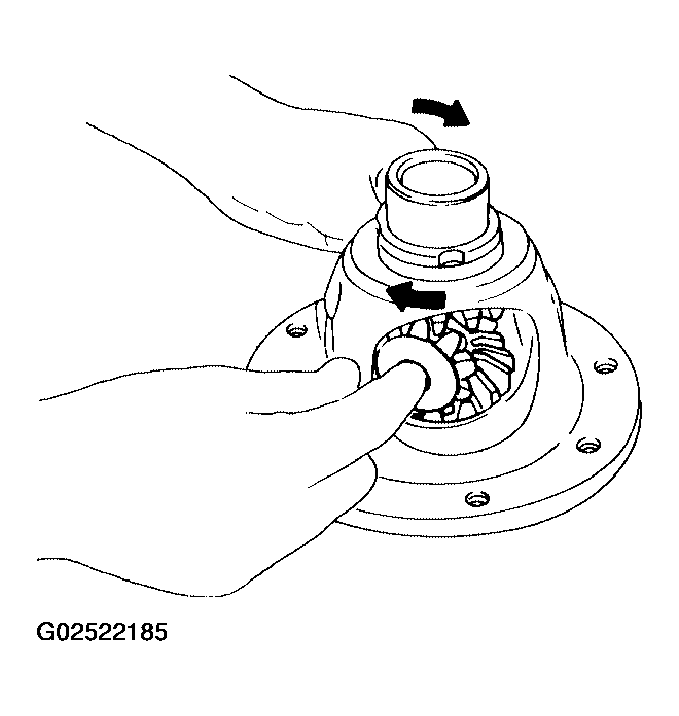

Fig 6: Removing Pinion Mate Gears And Side Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
