Final Drive: Assembly

WARNING: This page is about a different variant/trim than selected.

Attach side gear thrust washers to side gears, then install pinion mate thrust washers and pinion mate gears in place.
NOTE: Apply ATF to any parts during assembly.

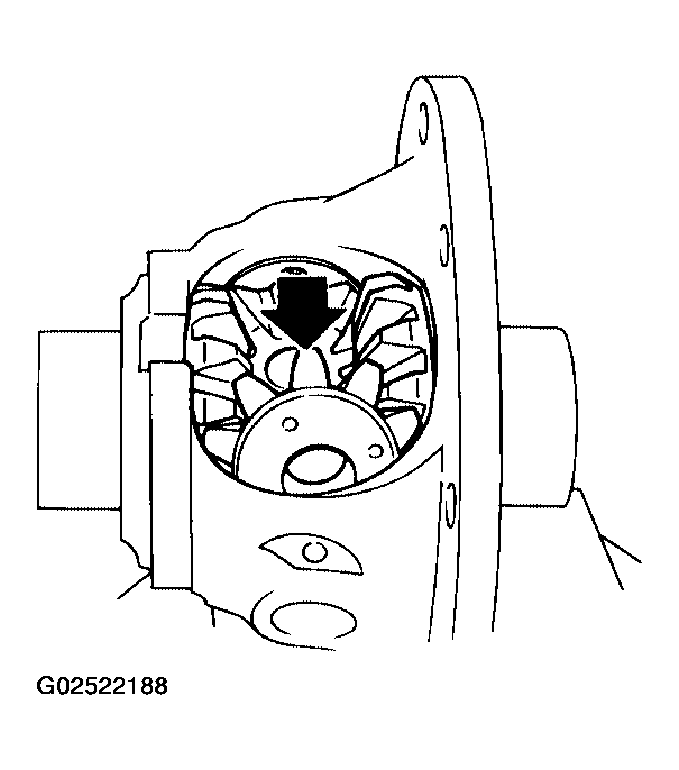

Fig 1: Installing Pinion Mate Thrust Washers And Pinion Mate Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert pinion mate shaft.
CAUTION: When inserting, be careful not to damage pinion mate thrust washers.

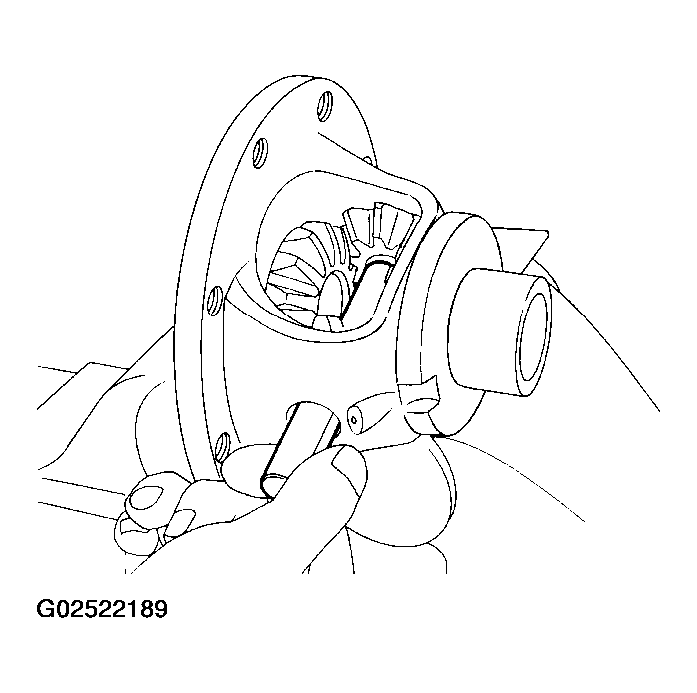

Fig 2: Installing Pinion Mate Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between side gear and differential case with washers following the procedure below using Tool:
Tool number (J-39713)
1. Set Tool and dial indicator on side gear.

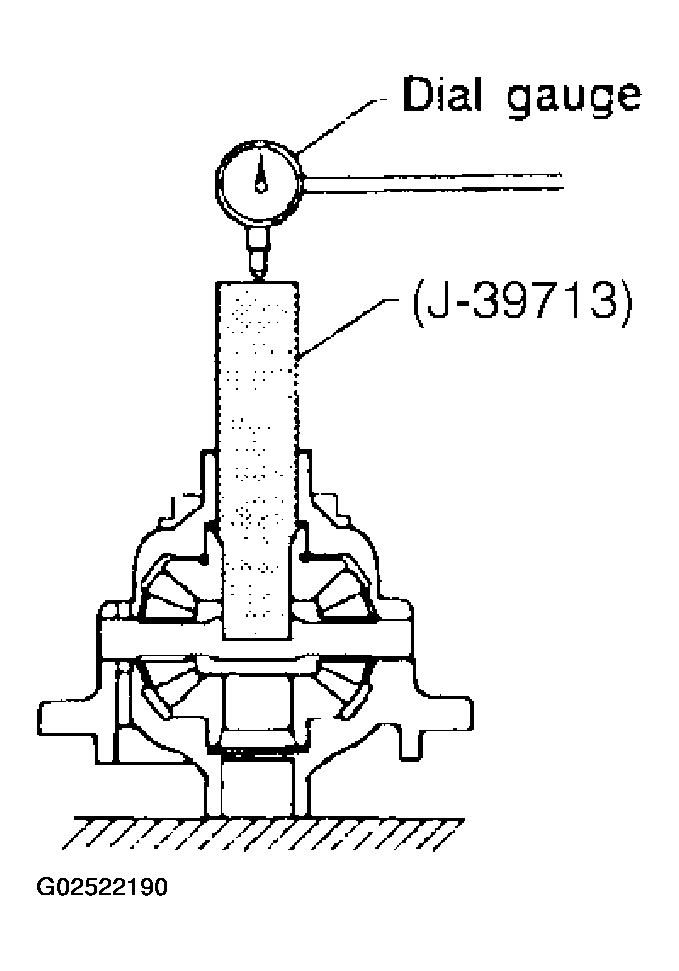

  Fig 3: Setting Tool And Dial Indicator On Side Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Move side gear up and down to measure dial indicator deflection. Always measure indicator deflection on both side gears.
  Clearance between side gear and differential case with washer: 0.1 - 0.2 mm (0.004 - 0.008 in)
3. If not within specification, adjust clearance by changing thickness of differential side gear thrust washers.
  Differential side gear thrust washers: Refer to "DIFFERENTIAL SIDE GEAR THRUST WASHERS ".

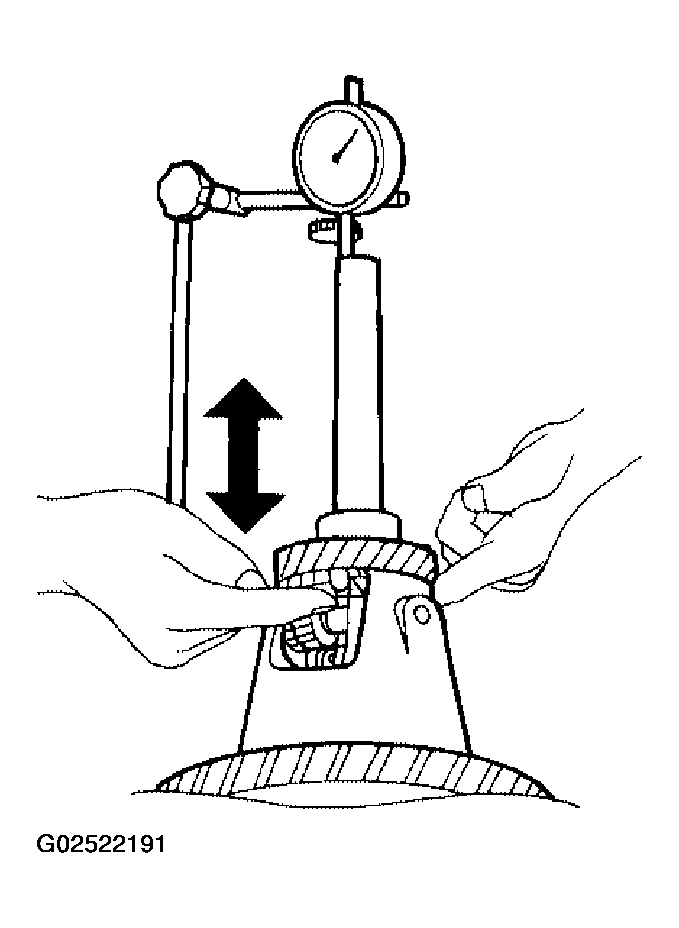

  Fig 4: Measuring Clearance Between Side Gear And Differential Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install lock pin using Tool
Tool number: KV32101000 (J-25689-A)

NOTE: Make sure the pin is flush with case.

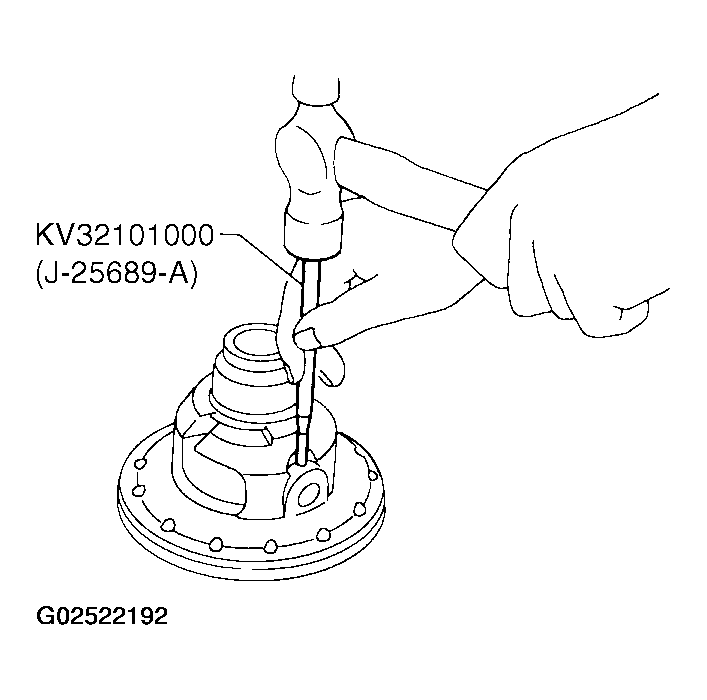

Fig 5: Installing Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Install speedometer drive gear on differential case.
NOTE: Align the projection of speedometer drive gear with the groove of differential case.

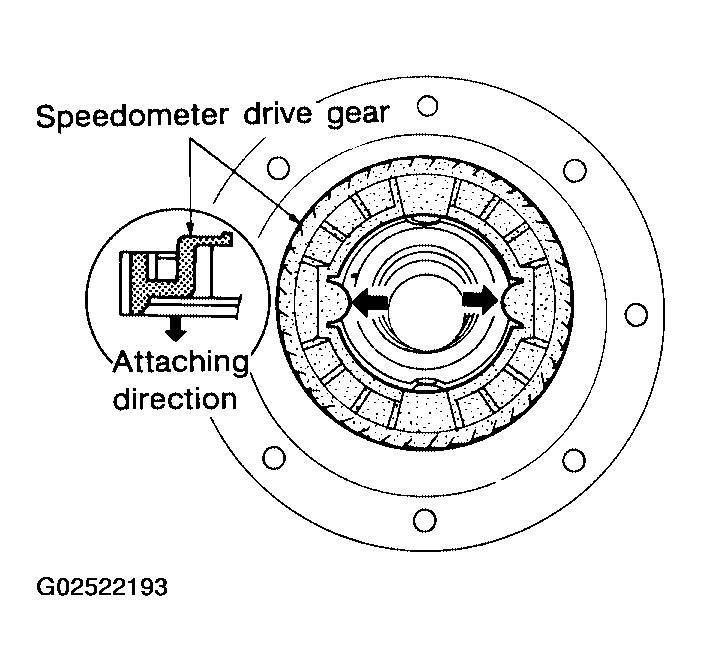

Fig 6: Installing Speedometer Drive Gear On Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Press on differential side bearings using Tool.
Tool number: ST33230000 (J-25805-01)

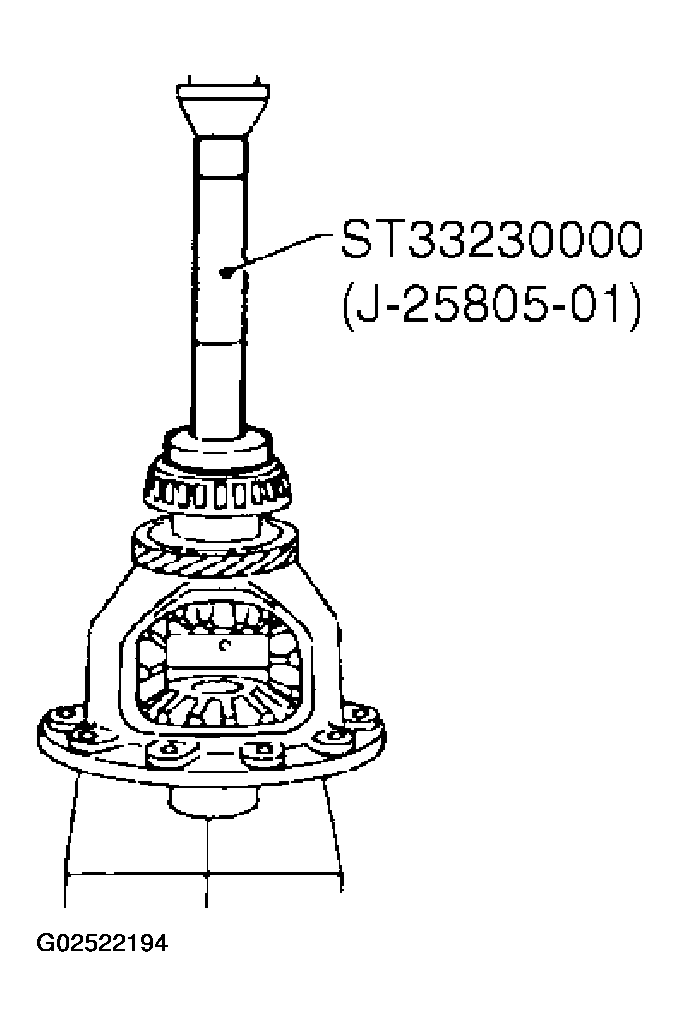

Fig 7: Installing Differential Side Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install final gear and tighten final gear bolts in a crisscross pattern to the specified torque using suitable tool. Refer to "COMPONENTS ".

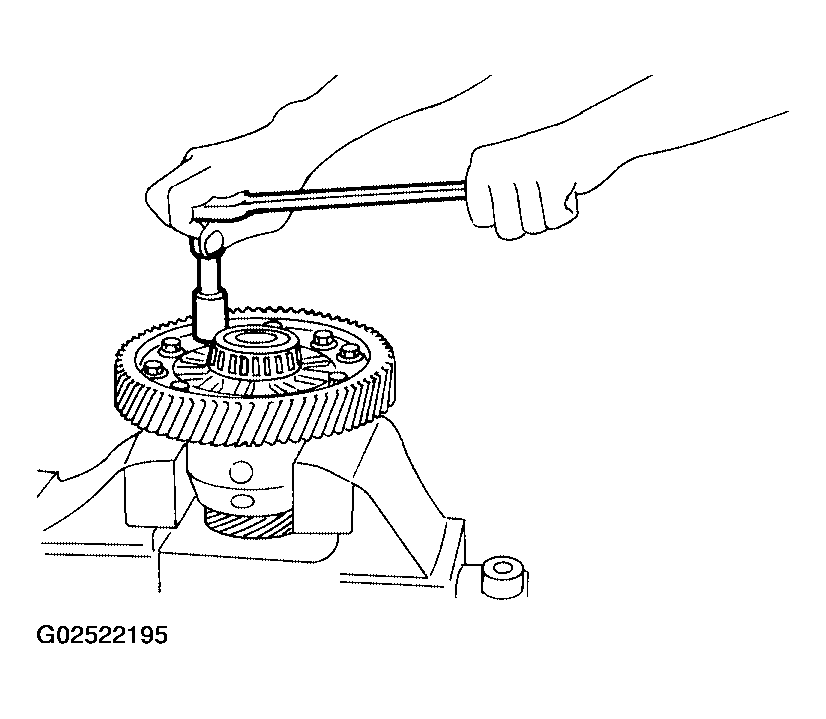

Fig 8: Tightening Final Gear Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
