Control Valve Upper Body: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove valves at retainer plates.
NOTE: Do not use a magnetic pick-up tool.

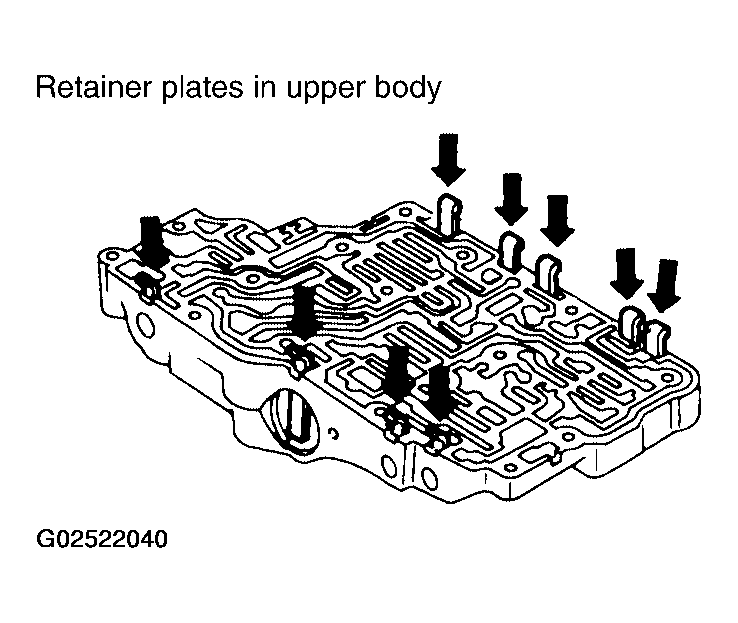

Fig 1: Identifying Retainer Plates In Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.

Use a screwdriver to remove retainer plates.

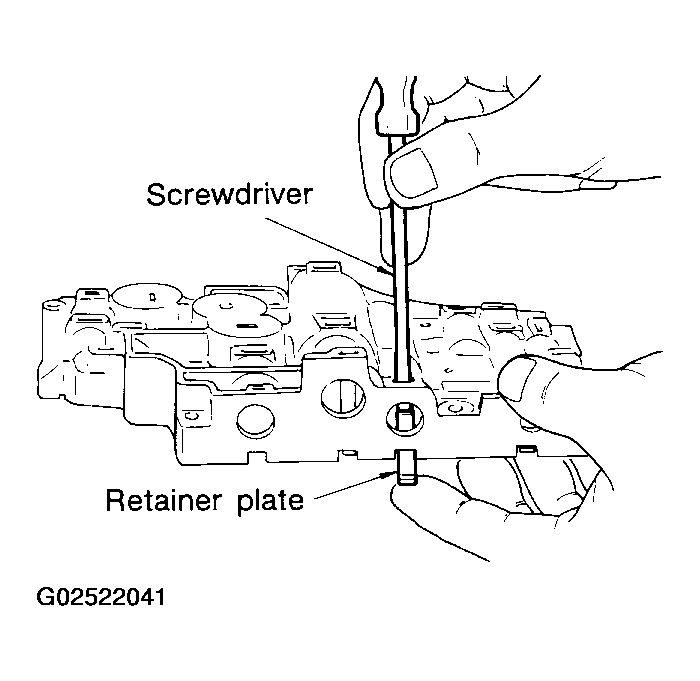

Fig 2: Removing Retainer Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove retainer plates while holding spring, plugs or sleeves.
NOTE: Remove plugs slowly to prevent internal parts from jumping out.

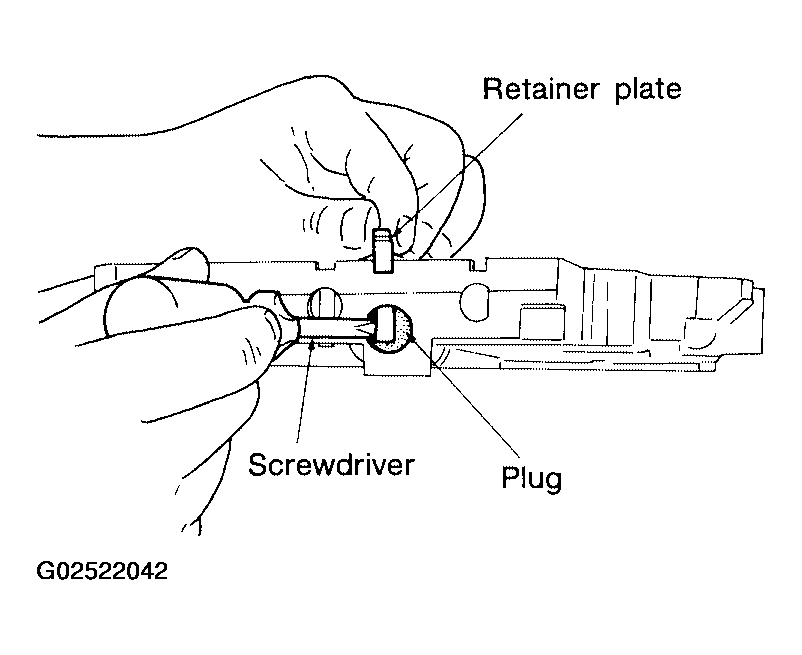

Fig 3: Removing Plugs
Courtesy of NISSAN MOTOR CO., U.S.A.
Place mating surface of valve body face down, and remove internal parts.
NOTE:
- If a valve is hard to remove, place valve body face down and lightly tap it with a soft hammer.
- Be careful not to drop or damage valves and sleeves.

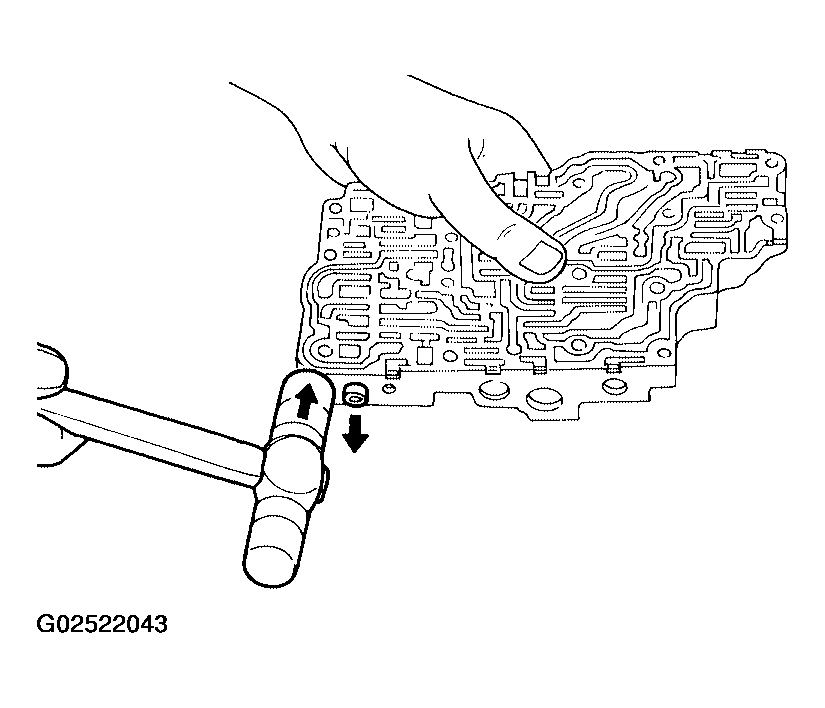

  Fig 4: Taping Valve Body With Soft Hammer
  Courtesy of NISSAN MOTOR CO., U.S.A.
