Control Valve Upper Body: Components

WARNING: This page is about a different variant/trim than selected.
NOTE: Apply ATF to all components before installation.

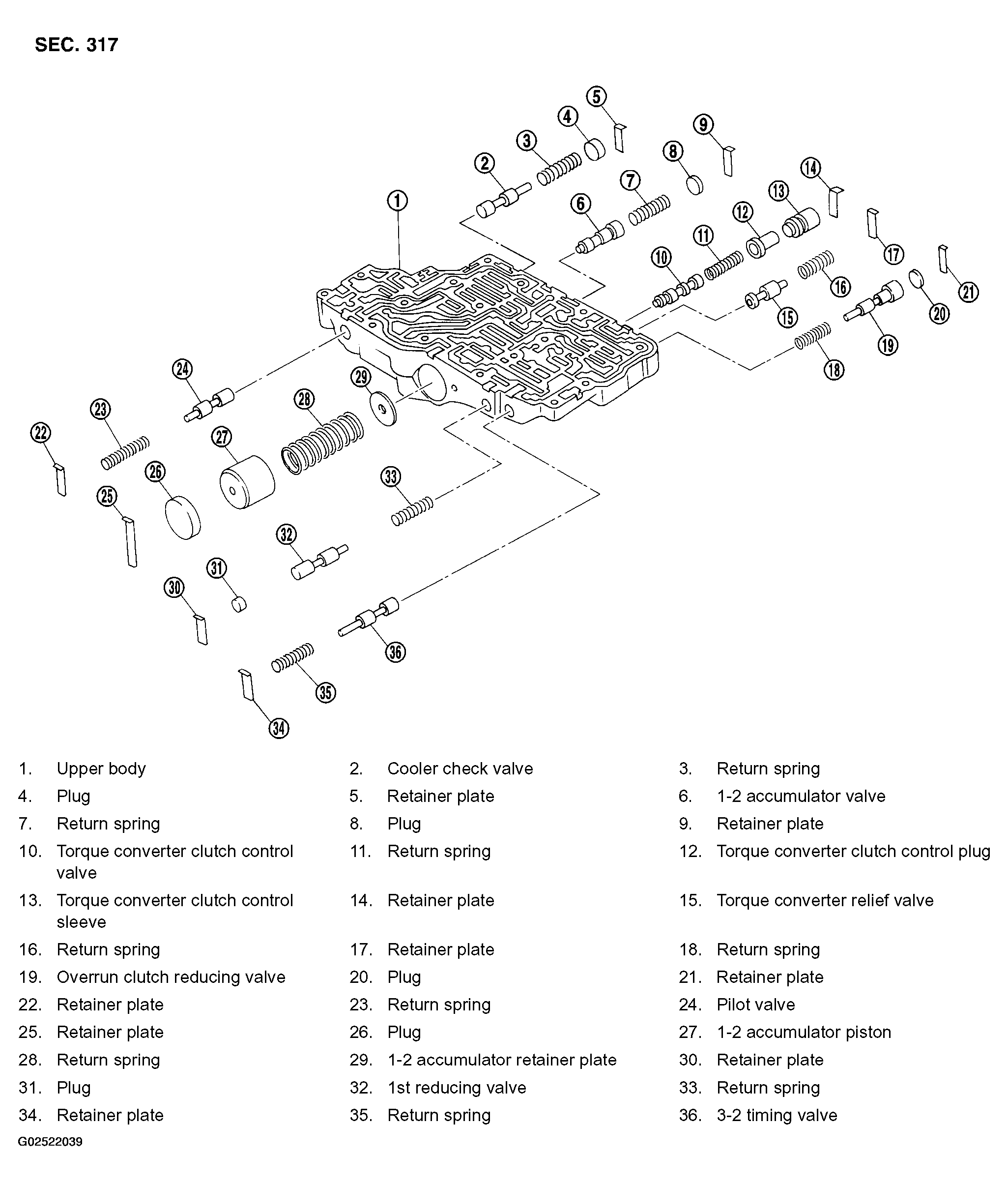

Fig 1: Identifying Control Valve Upper Body Components
G02522039Courtesy of NISSAN MOTOR CO., U.S.A.
