Control Valve Upper Body: Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE: Lay control valve body down when installing valves. Do not stand the control valve body upright.

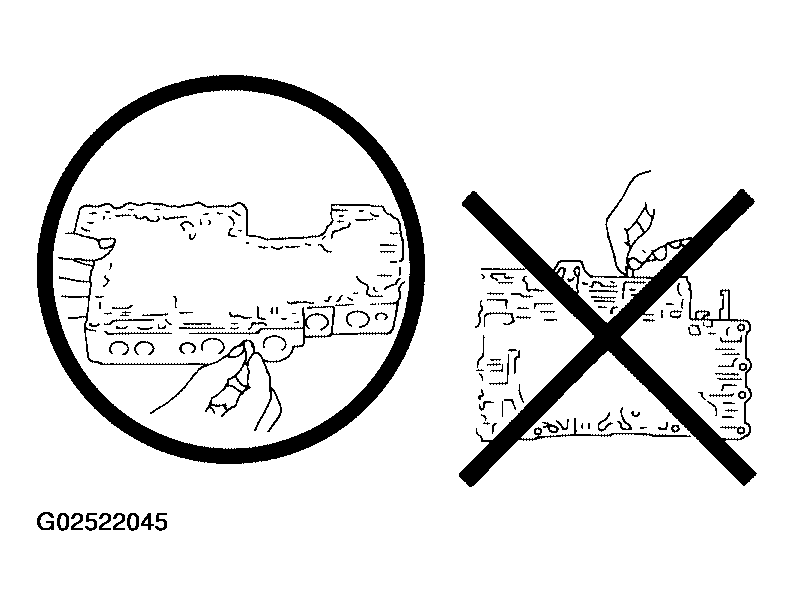

Fig 1: Identifying Correct And Wrong Method For Valves Installation

G02522045

Courtesy of NISSAN MOTOR CO., U.S.A.

Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.
NOTE:
- Be careful not to scratch or damage valve body.

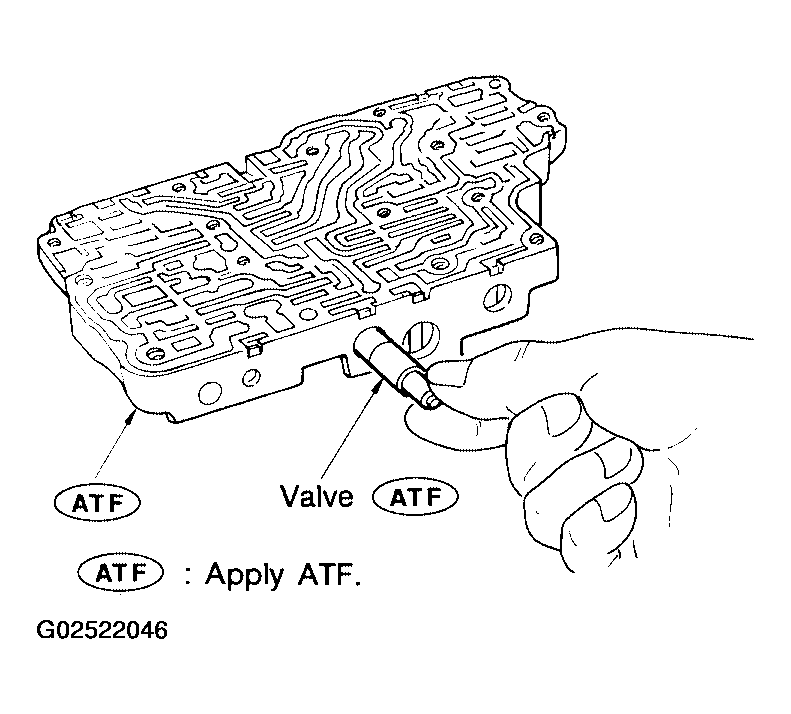

  Fig 2: Installing Control Valves (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

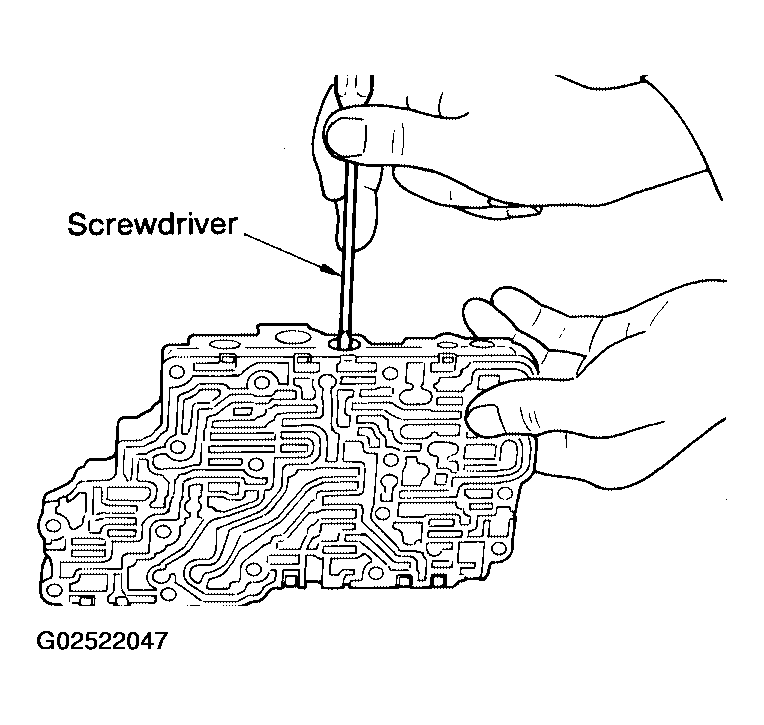

  Fig 3: Installing Control Valves (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
