Control Valve Lower Body: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove valves at retainer plate.

For removal procedures, Refer to "COMPONENTS ".

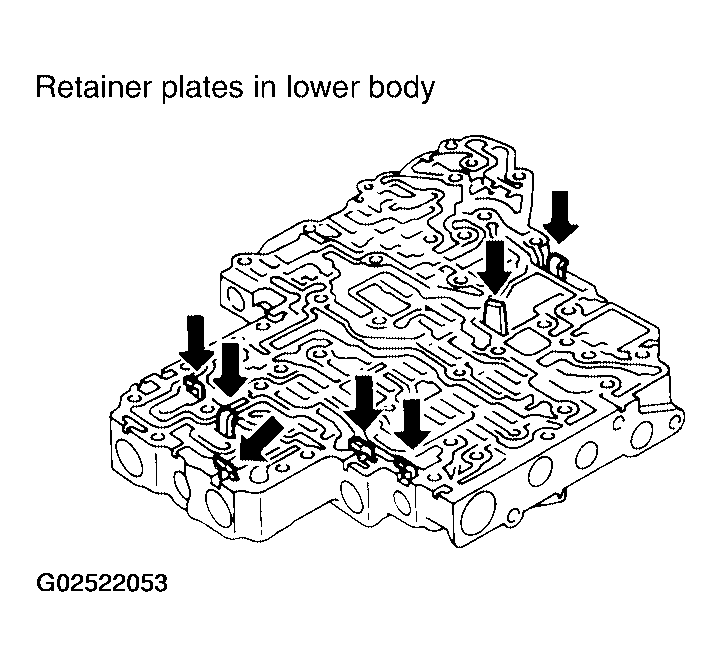

Fig 1: Identifying Retainer Plate In Lower Body
G02522053Courtesy of NISSAN MOTOR CO., U.S.A.
