Control Valve Lower Body: Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

Install control valves.

For installation procedures, Refer to "COMPONENTS ".

NOTE: Apply ATF to all components before installation.

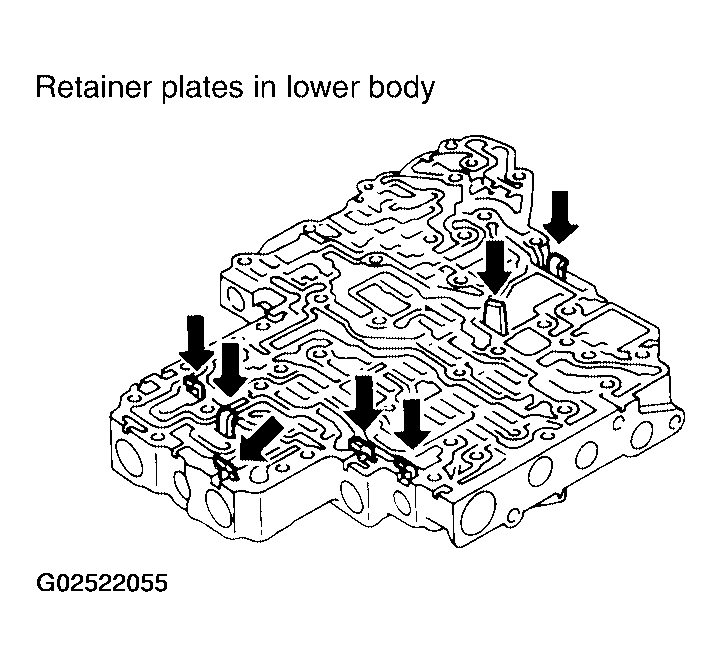

Fig 1: Identifying Retainer Plate In Lower Body
G02522055Courtesy of NISSAN MOTOR CO., U.S.A.
