Oil Strainer

WARNING: This page is about a different variant/trim than selected.

NOTE: Check wire netting of oil strainer for damage.

Shift Solenoid Valves "A" and "B", Line Pressure Solenoid Valve, Torque Converter Clutch Solenoid Valve and Overrun Clutch Solenoid Valve

Measure resistance.
For shift solenoid valve A, Refer to "DIAGNOSTIC PROCEDURE ".
For shift solenoid valve B, Refer to "DIAGNOSTIC PROCEDURE ".
For line pressure solenoid valve, Refer to "DIAGNOSTIC PROCEDURE ".
For torque converter clutch solenoid valve, Refer to "DIAGNOSTIC PROCEDURE ".
For overrun clutch solenoid valve, Refer to "DIAGNOSTIC PROCEDURE ".

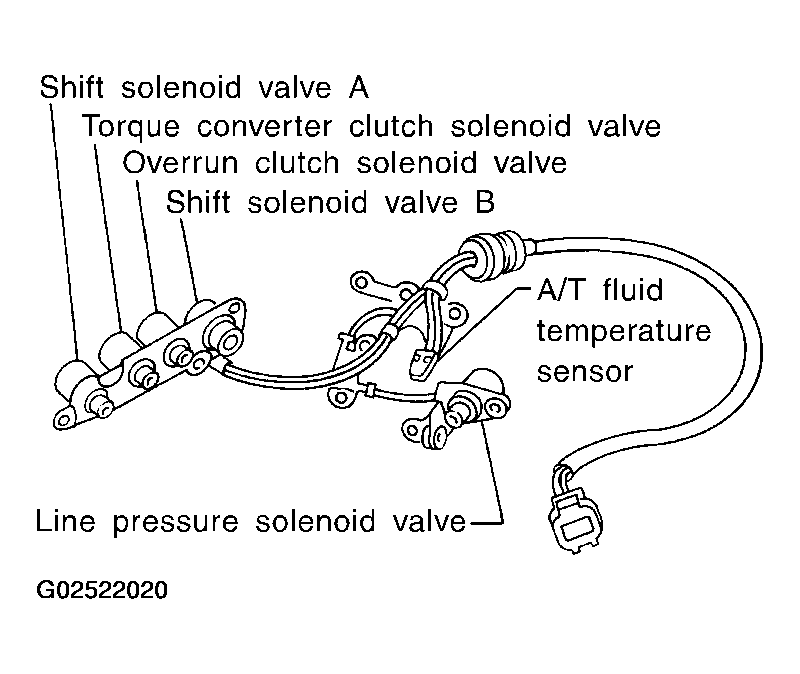

Fig 1: Identifying Shift Solenoid Valves, Torque Converter Clutch Solenoid Valve, Overrun Clutch Solenoid Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
