Control Valve Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Install upper, inter and lower body.

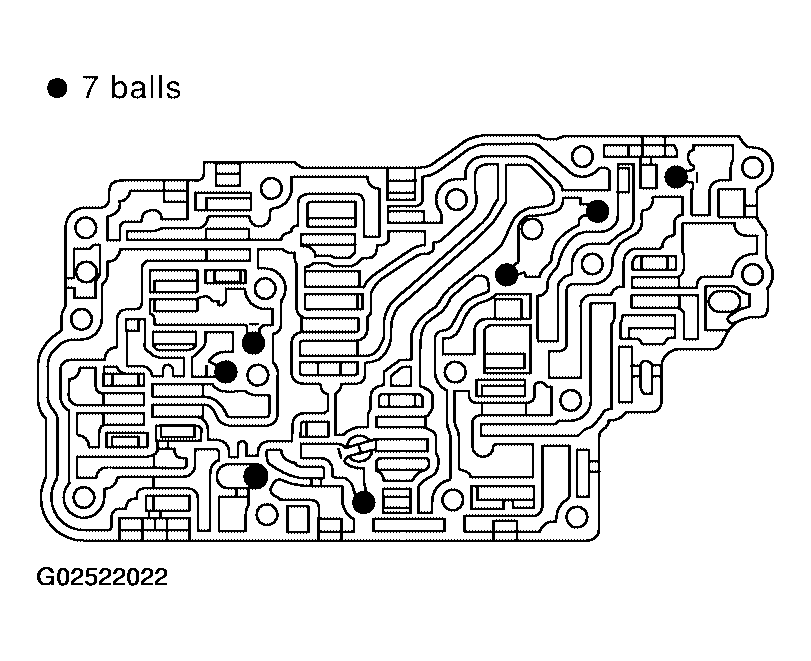

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.

  Fig 1: Installing Steel Balls
  Courtesy of NISSAN MOTOR CO., U.S.A.

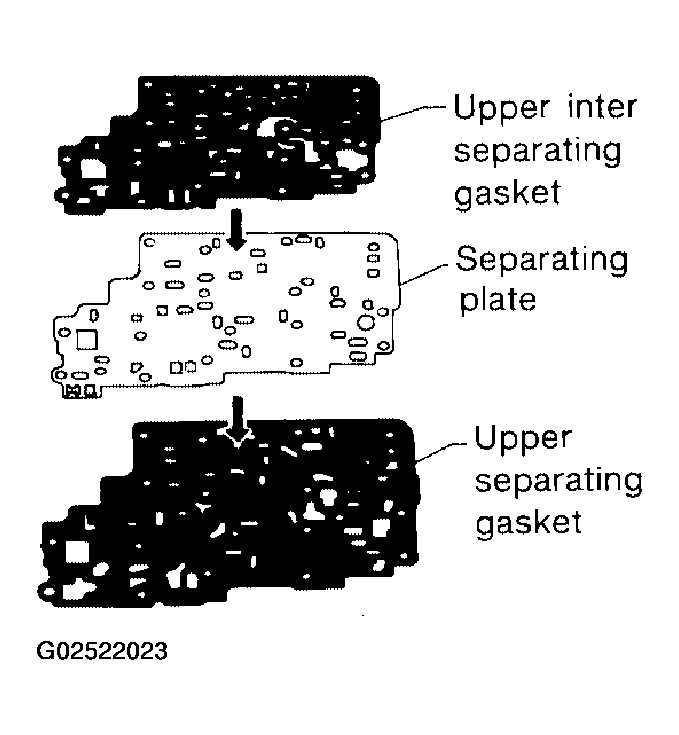

2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.

  Fig 2: Installing Upper Separating Gasket, Upper Inter Separating Gasket And Upper Separating Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.

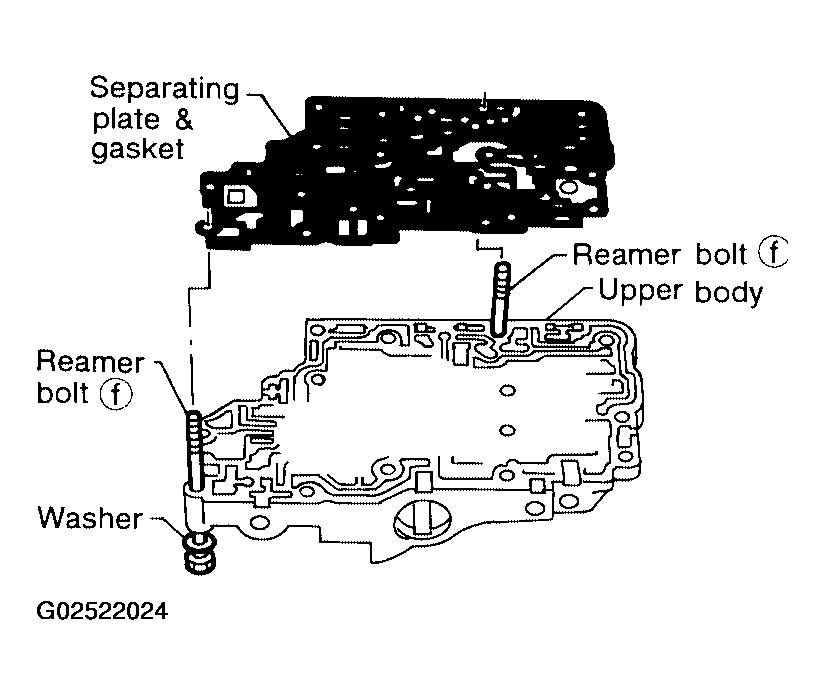

3. Install reamer bolts f from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.

  Fig 3: Installing Reamer Bolts From Bottom Of Upper Body
  Courtesy of NISSAN MOTOR CO., U.S.A.

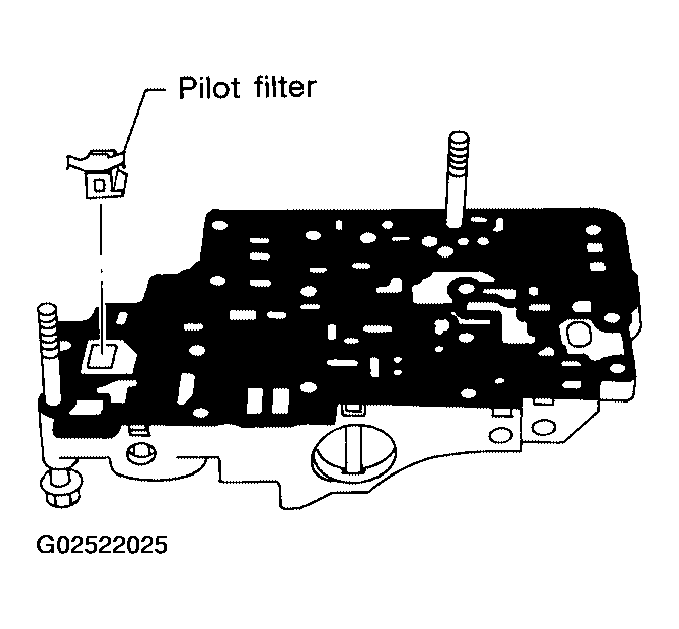

4. Install pilot filter.

  Fig 4: Installing Pilot Filter
  Courtesy of NISSAN MOTOR CO., U.S.A.

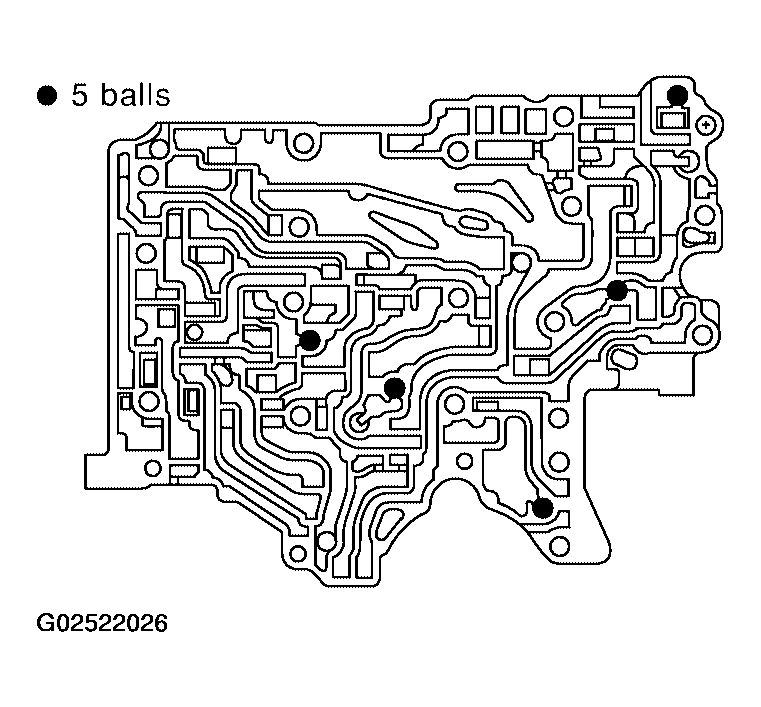

5. Place lower body as shown in illustration (side of inter body face up). Install steel balls in their proper positions.

  Fig 5: Installing Steel Balls In Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.

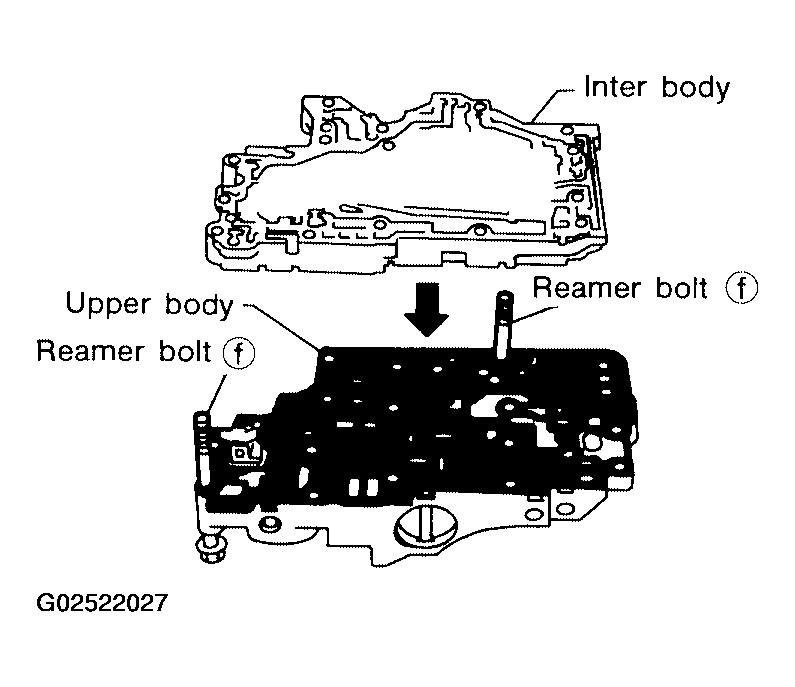

6. Install inter body on upper body using reamer bolts f as guides.
  CAUTION: Be careful not to dislocate or drop steel check balls.

  Fig 6: Installing Inter Body On Upper Body Using Reamer Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

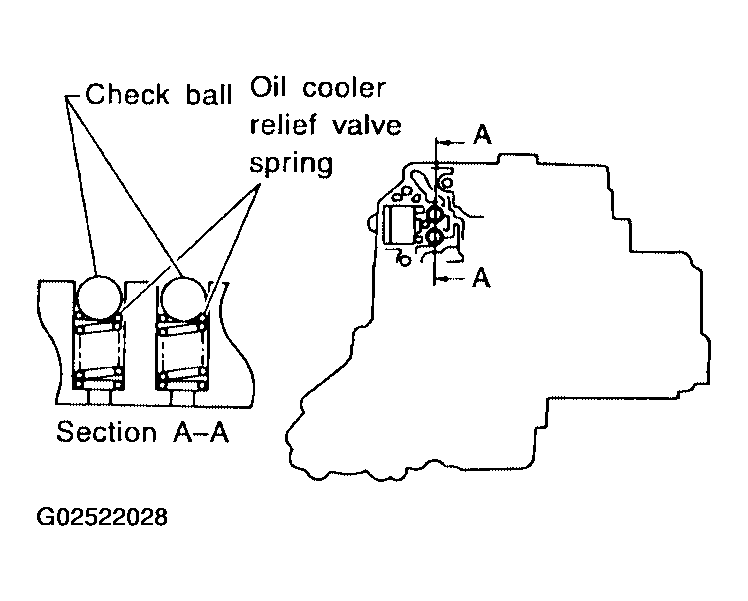

7. Install check balls and oil cooler relief valve springs in their proper positions in lower body.

  Fig 7: Installing Oil Cooler Relief Valve Springs In Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.

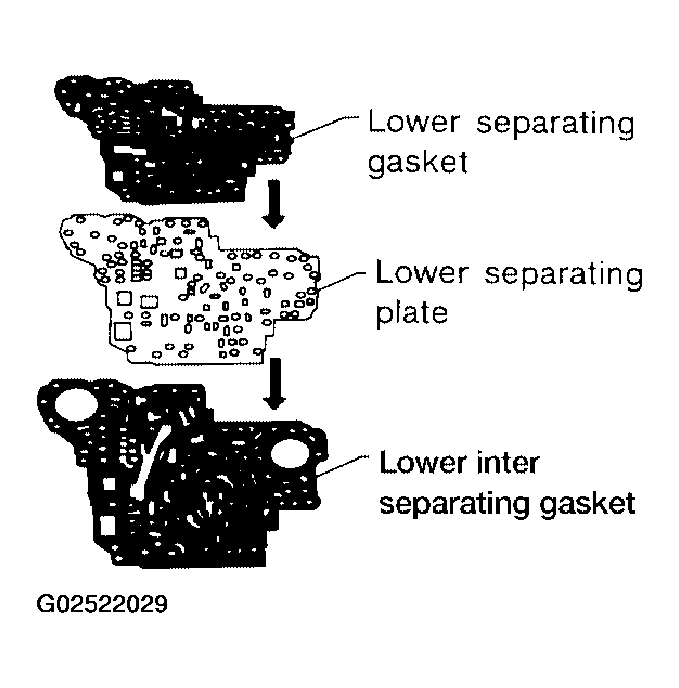

8. Install lower separating gasket, lower inter separating gasket and lower separating plate in order shown in illustration.

  Fig 8: Installing Lower Separating Gasket, Lower Inter Separating Gasket And Lower Separating Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.

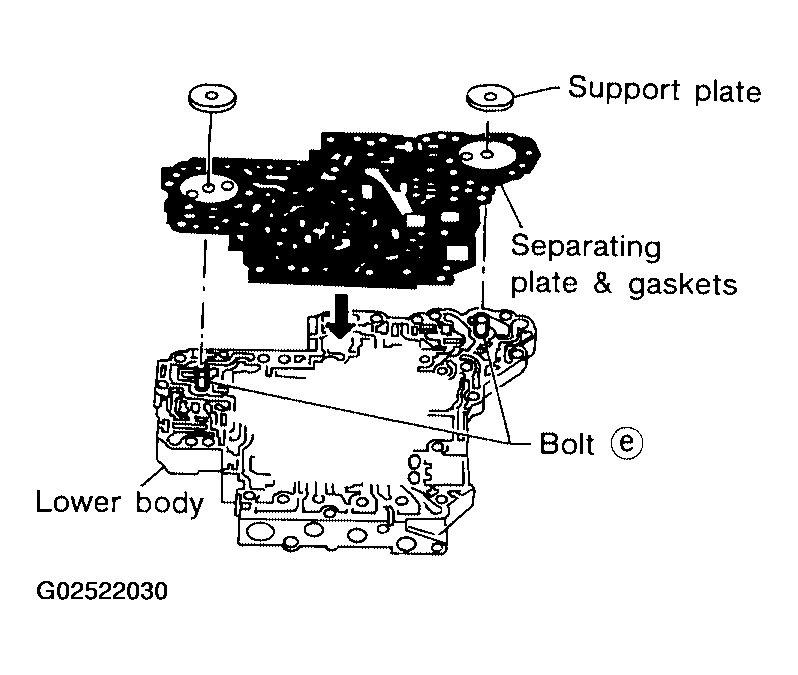

9. Install bolts e from bottom of lower body. Using bolts e as guides, install separating plate and gaskets as a set.

  Fig 9: Installing Separating Plate And Gaskets
  Courtesy of NISSAN MOTOR CO., U.S.A.
10. Temporarily install support plates on lower body.

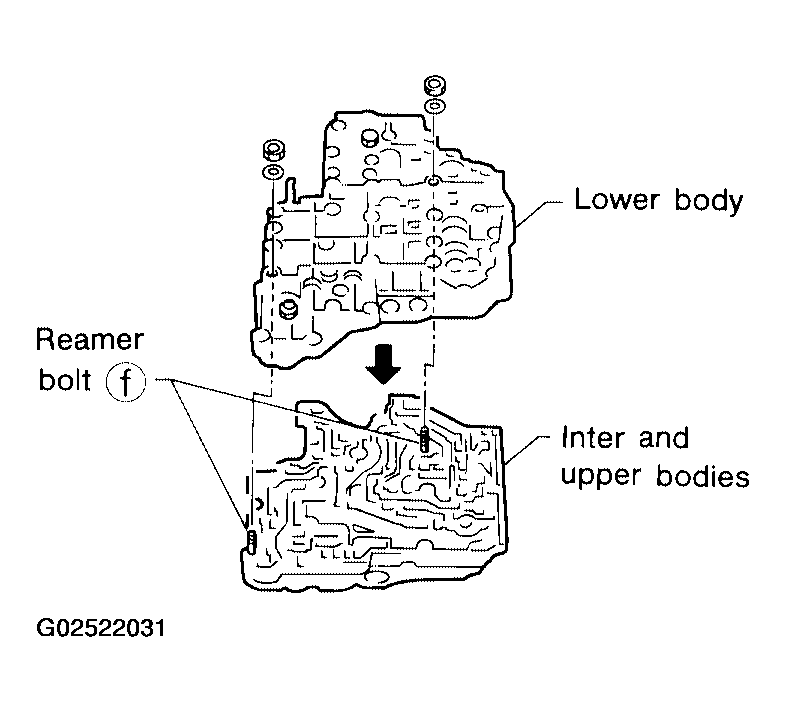

11. Install lower body on inter body using reamer bolts f as guides and tighten reamer bolts f slightly.

  Fig 10: Installing Lower Body On Inter Body Using Reamer Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

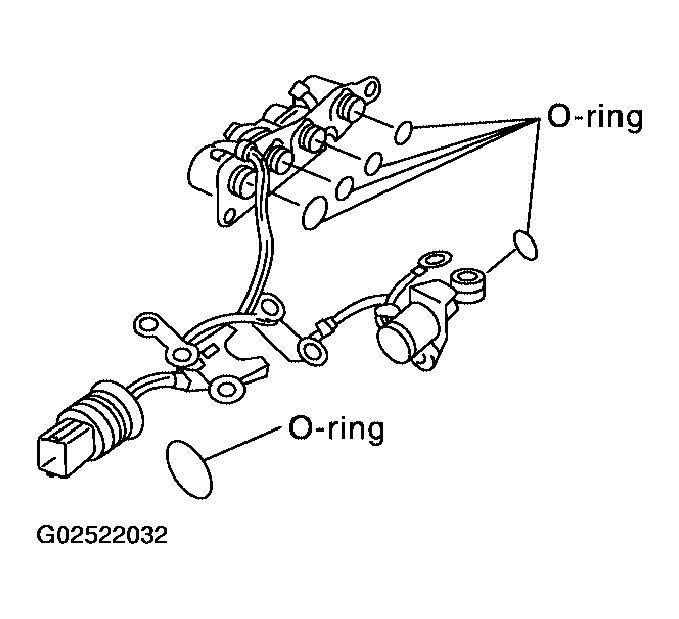

Install new O-rings to solenoid valves and terminal body.
NOTE: Apply ATF to new O-rings

Fig 11: Installing New O-Rings To Solenoid Valves And Terminal Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Install and tighten bolts.

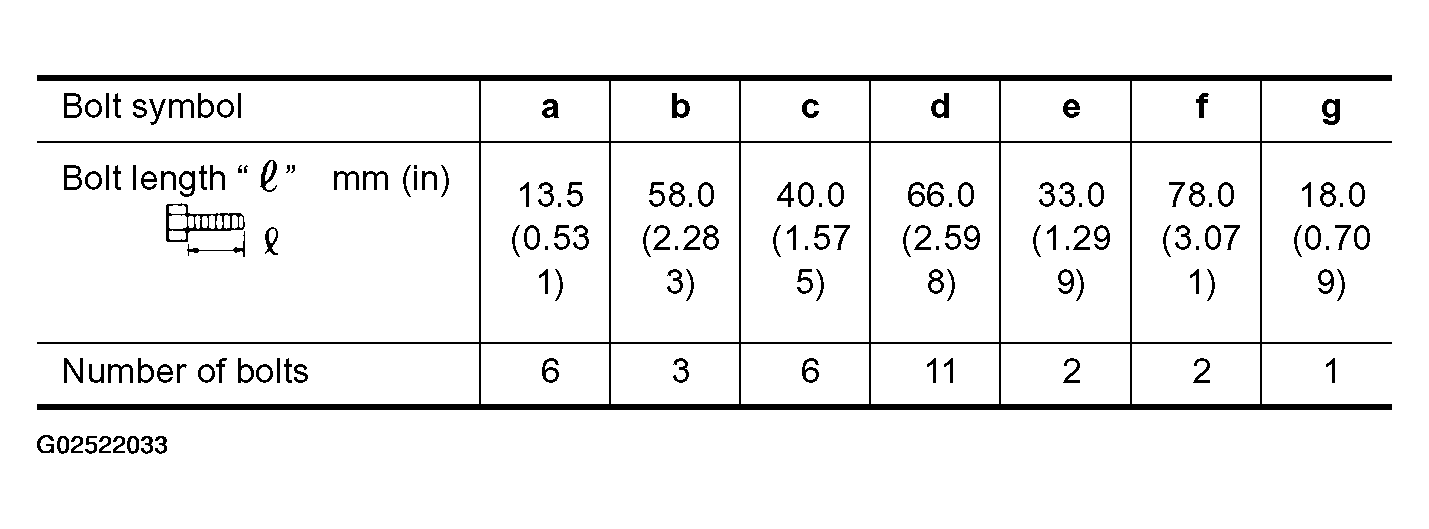

Bolt length, number and location:

Fig 12: Bolts Symbol And Length Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

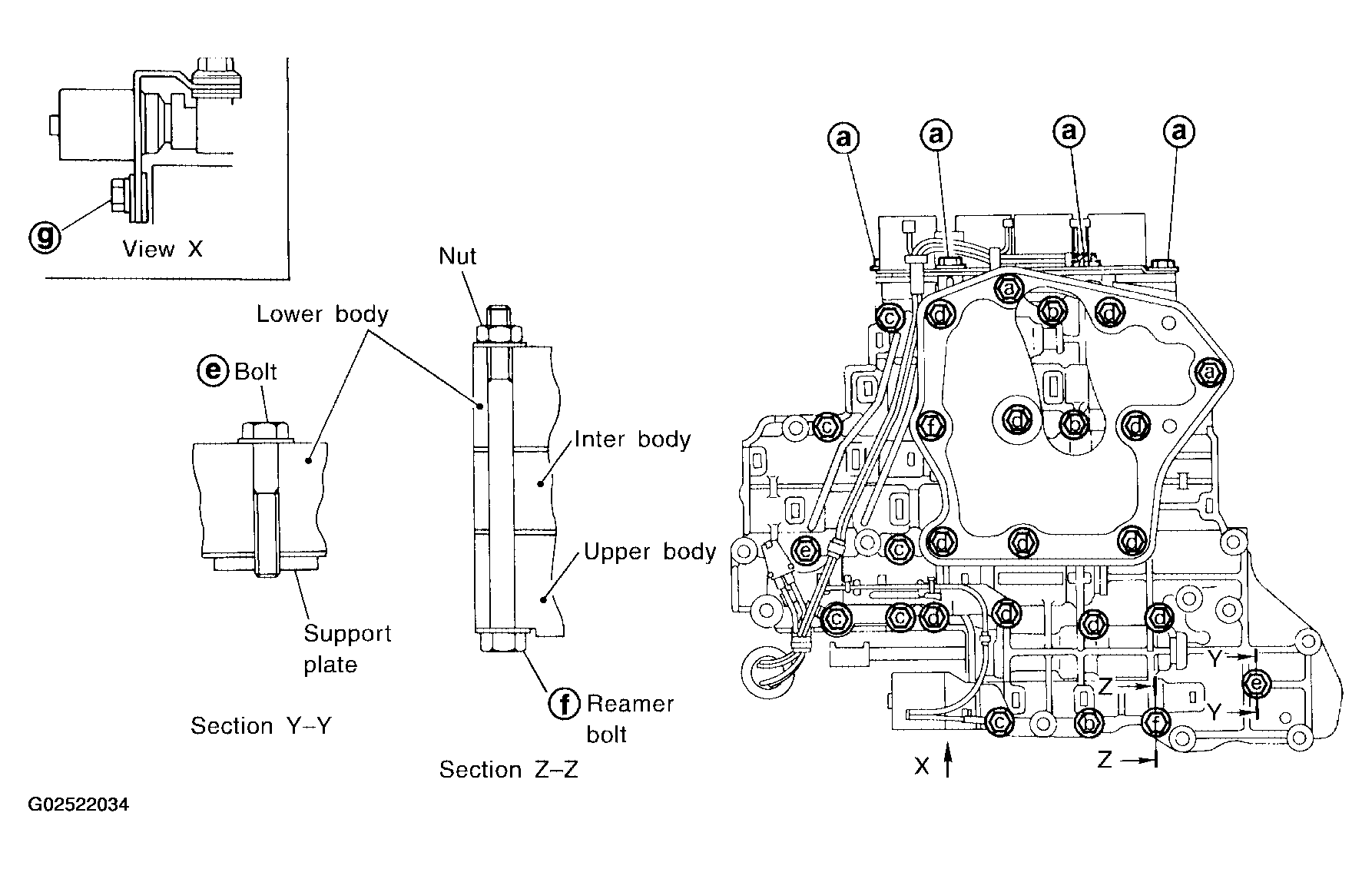

Fig 13: Identifying Reamer Bolts And Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.

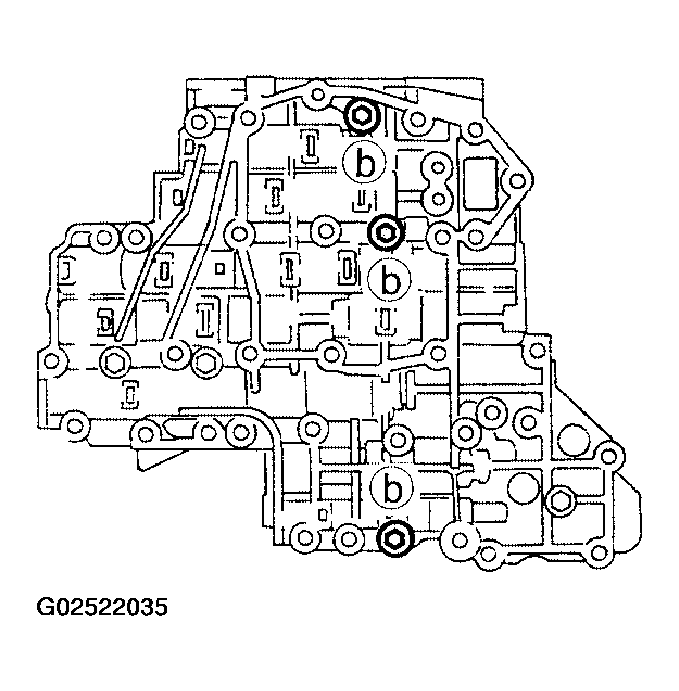

Install and tighten bolts b to specified torque.
b: 7 - 9 N-m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

Fig 14: Tightening Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

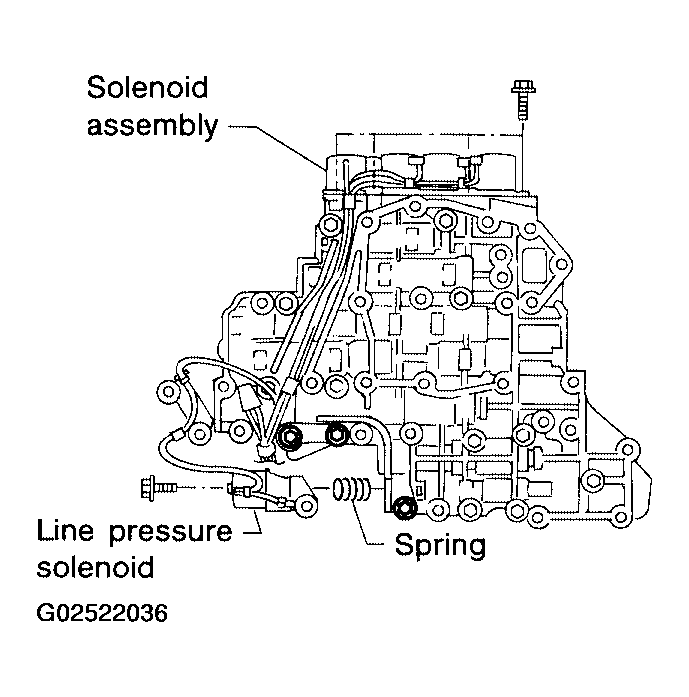

Install solenoid valve assembly and line pressure solenoid valve to lower body.

Fig 15: Installing Solenoid Valve Assembly And Line Pressure Solenoid Valve To Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.

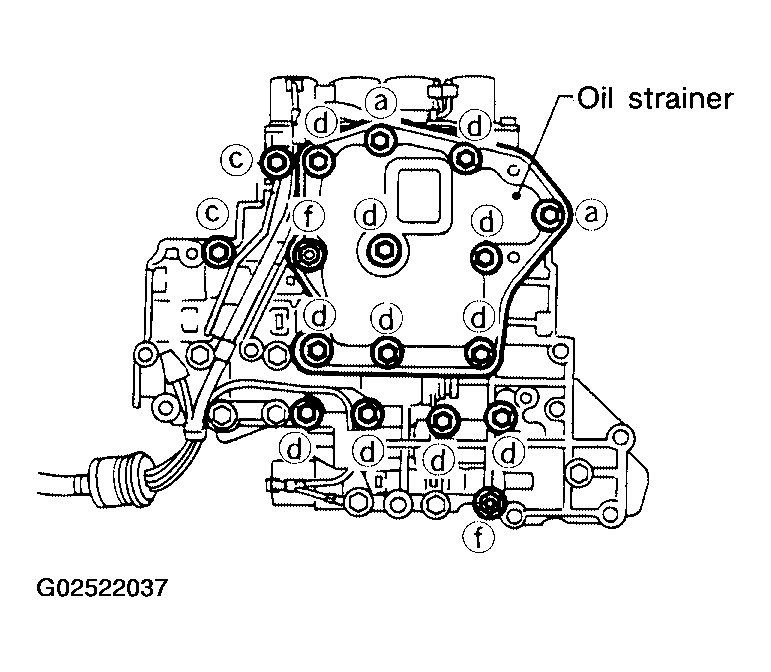

Set oil strainer, then tighten bolts a, c, d and nuts f to specified torque.
a, c, d, f: 7 - 9 N-m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

Fig 16: Tightening Oil Strainer Bolts And Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.

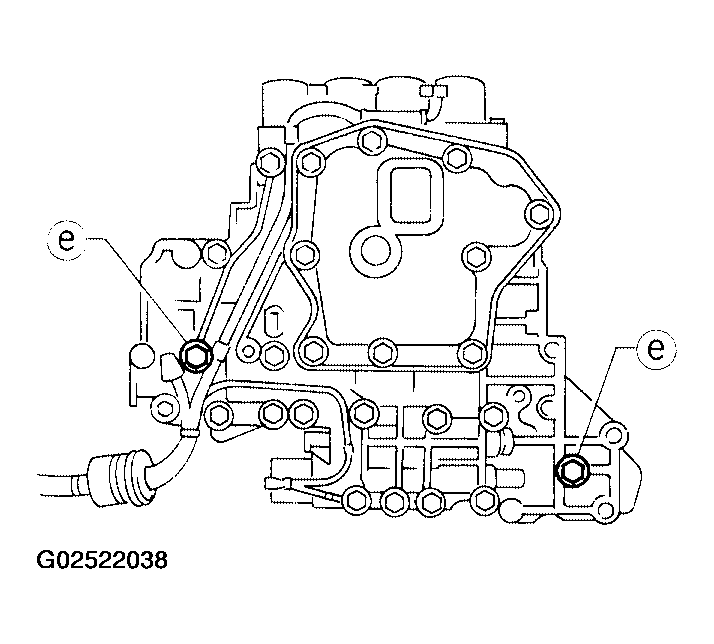

Tighten bolts e to specified torque.
e: 3.4 - 4.4 N-m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)

Fig 17: Tightening Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
