Band Servo Piston Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

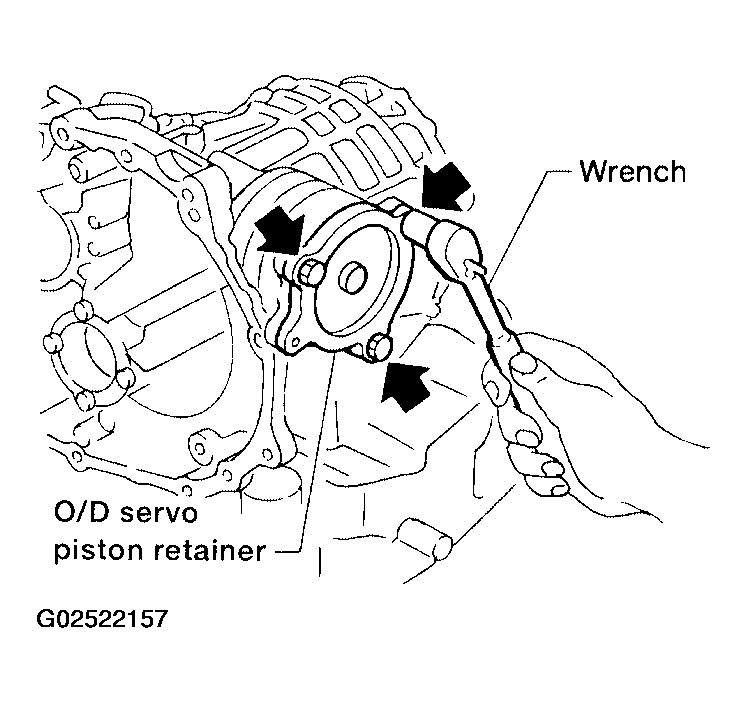

  1. Remove band servo piston bolts using suitable tool.
    Fig 1: Removing Band Servo Piston Bolts Using Suitable Tool
    G02522157Courtesy of NISSAN MOTOR CO., U.S.A.

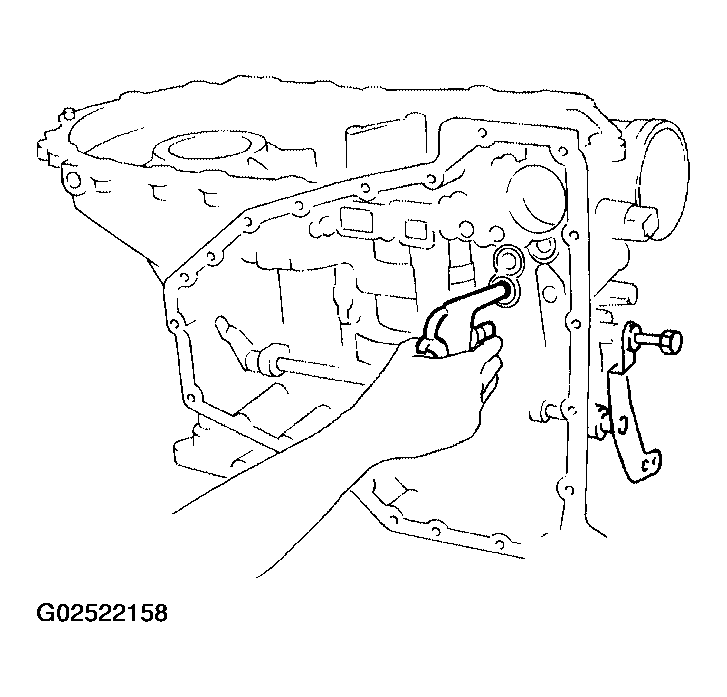

  2. Apply compressed air to oil hole in transaxle case to remove O/D servo piston retainer and band servo piston assembly.
    NOTE: Hold band servo piston assembly with a rag or nylon waste.
    Fig 2: Applying Compressed Air To Oil Hole In Transaxle Case For Removing O/D Servo Piston Retainer And Band Servo Piston Assembly
    G02522158Courtesy of NISSAN MOTOR CO., U.S.A.

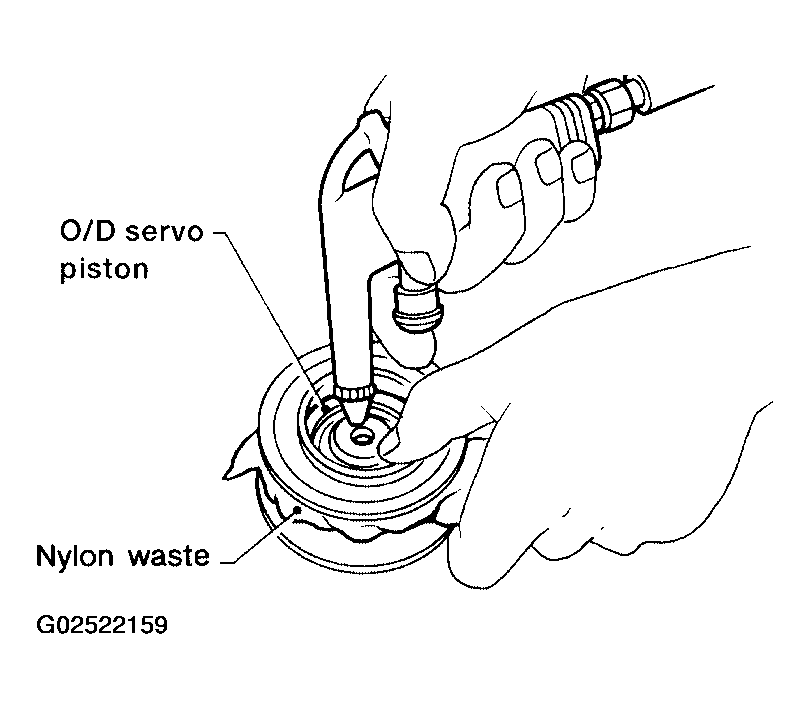

  3. Apply compressed air to oil hole in O/D servo piston retainer to remove O/D servo piston from retainer.
    CAUTION: Hold O/D band servo while applying compressed air.
    Fig 3: Applying Compressed Air To Oil Hole In O/D Servo Piston Retainer For Removing O/D Servo Piston From Retainer
    G02522159Courtesy of NISSAN MOTOR CO., U.S.A.

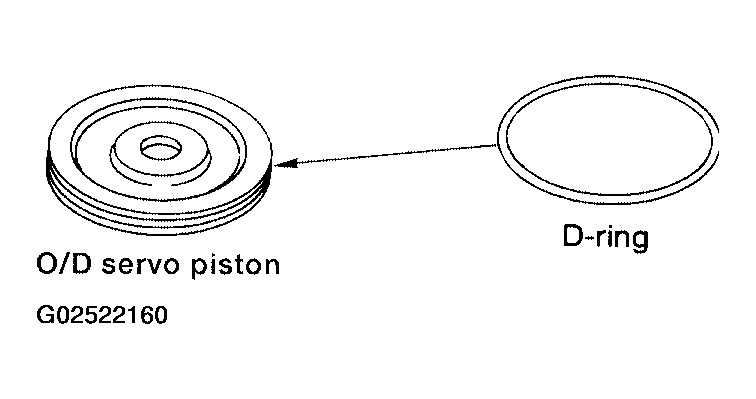

  4. Remove D-ring from O/D servo piston.
    NOTE: Do not reuse D-ring.
    Fig 4: Removing D-Ring From O/D Servo Piston
    G02522160Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove O-rings from O/D servo piston retainer.
    NOTE: Do not reuse O-ring.

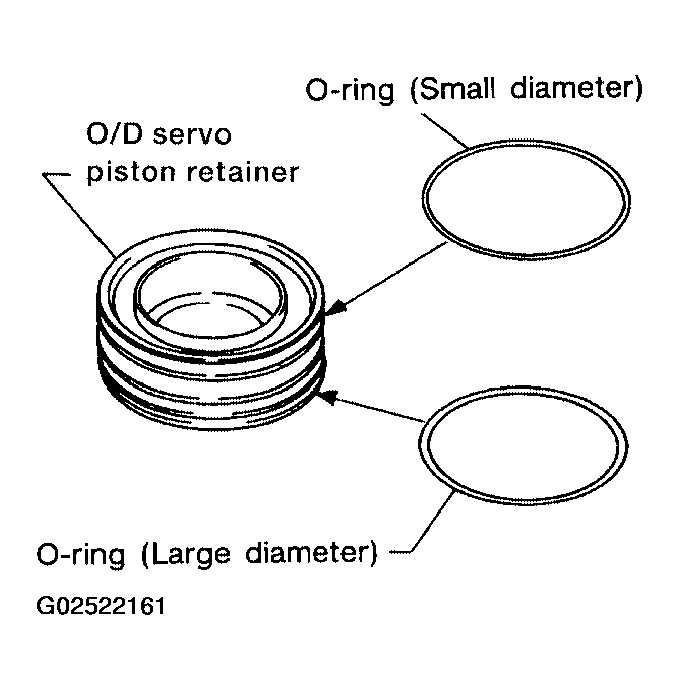

    Fig 5: Removing O-Rings From O/D Servo Piston Retainer
    G02522161Courtesy of NISSAN MOTOR CO., U.S.A.

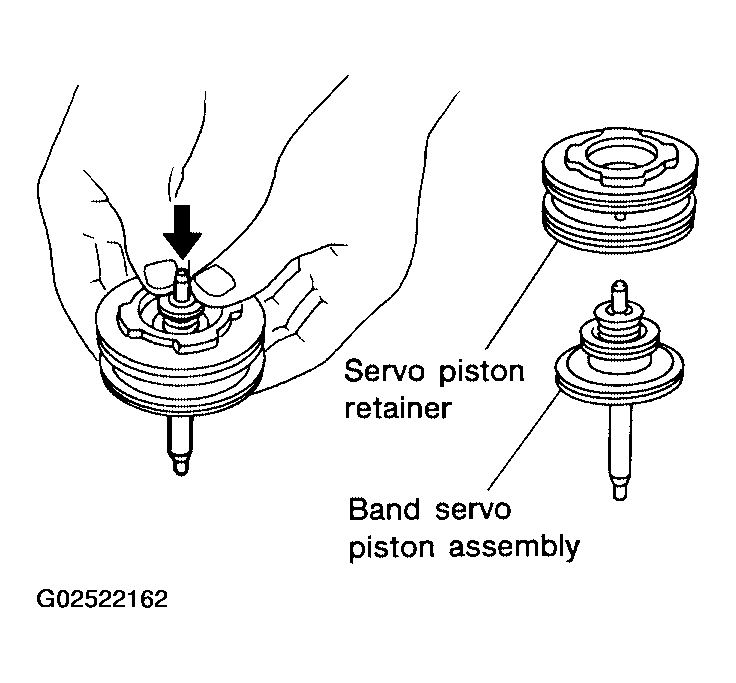

  6. Remove band servo piston assembly from servo piston retainer by pushing it forward.
    Fig 6: Removing Band Servo Piston Assembly From Servo Piston Retainer
    G02522162Courtesy of NISSAN MOTOR CO., U.S.A.

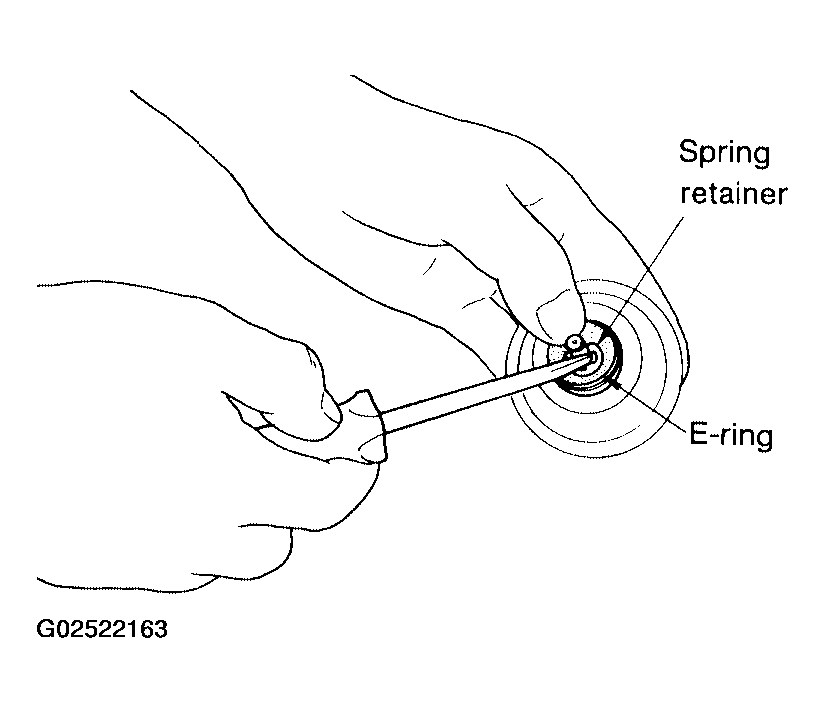

  7. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, remove E-ring using suitable tool.
    Fig 7: Removing E-Ring Using Suitable Tool
    G02522163Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove O/D servo return spring, band servo thrust washer and band servo piston stem from band servo piston.

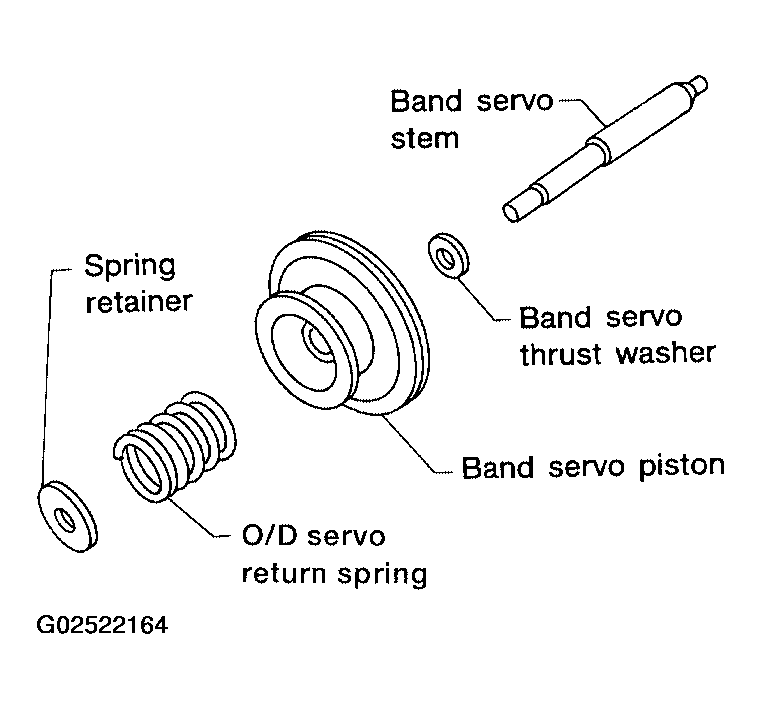

    Fig 8: Removing O/D Servo Return Spring, Band Servo Thrust Washer And Band Servo Piston Stem From Band Servo Piston
    G02522164Courtesy of NISSAN MOTOR CO., U.S.A.

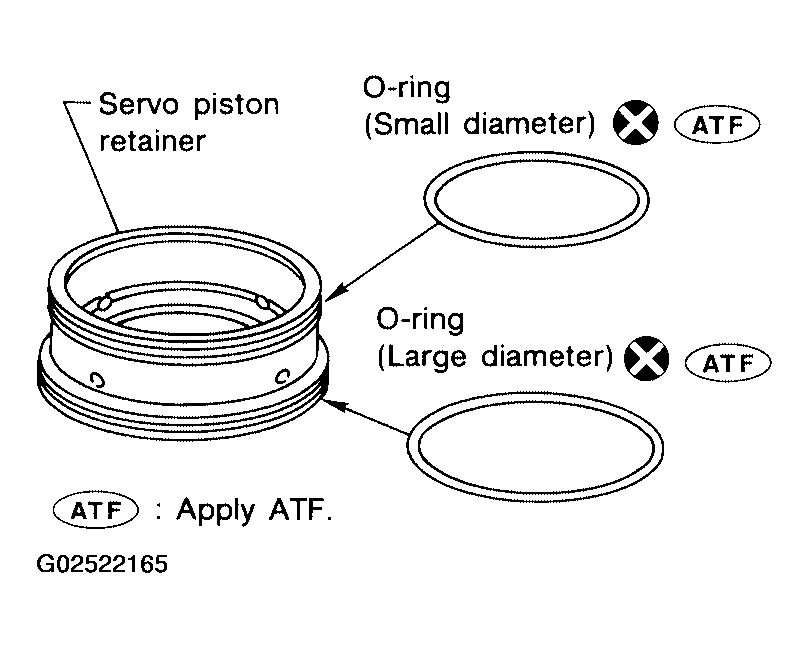

  9. Remove O-rings from servo piston retainer.
    Fig 9: Removing O-Rings From Servo Piston Retainer
    G02522165Courtesy of NISSAN MOTOR CO., U.S.A.

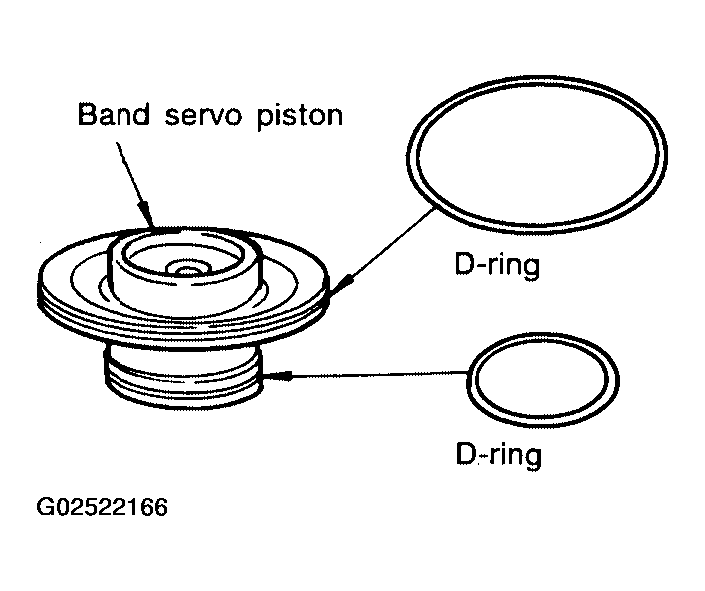

  10. Remove D-rings from band servo piston.
    Fig 10: Removing D-Rings From Band Servo Piston
    G02522166Courtesy of NISSAN MOTOR CO., U.S.A.
