Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

When connecting torque converter to transaxle, measure distance "A" to be certain that they are correctly assembled.
Distance "A": 14 mm (0.55 in) or more

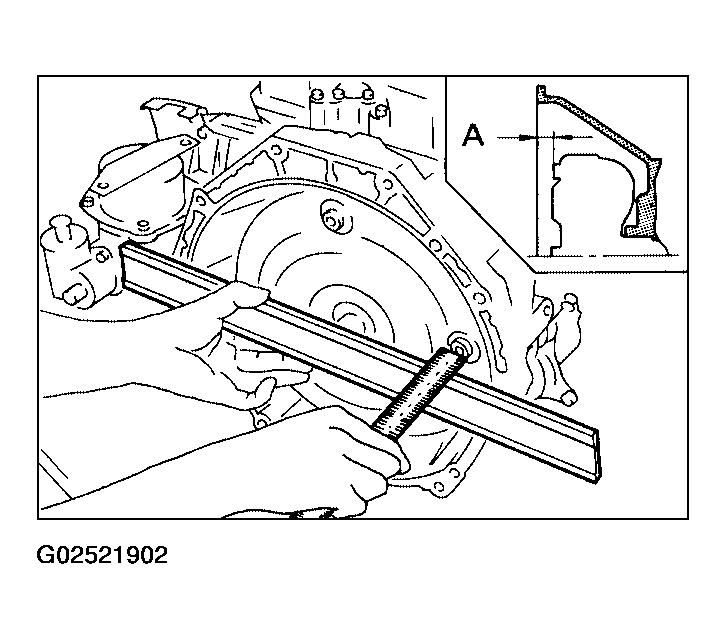

Fig 1: Checking Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.
Install torque converter bolts to drive plate.
NOTE: With converter installed, rotate crankshaft several turns to check that transaxle rotates freely without binding.

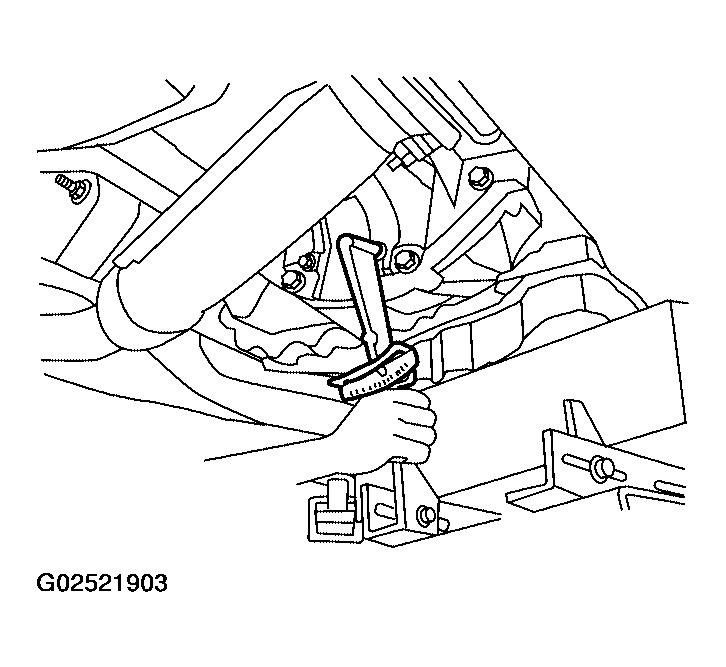

Fig 2: Installing Torque Converter Bolts To Drive Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten transaxle to engine bolts.

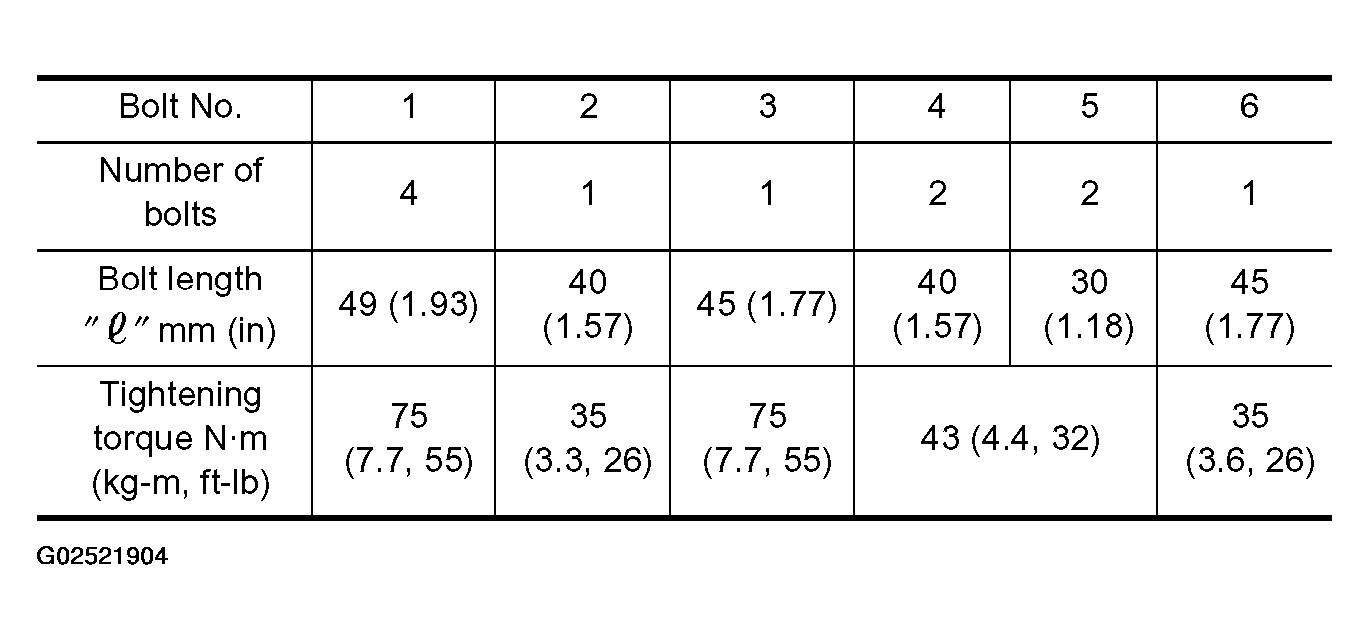

Fig 3: Bolts Length And Tightening Torque Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

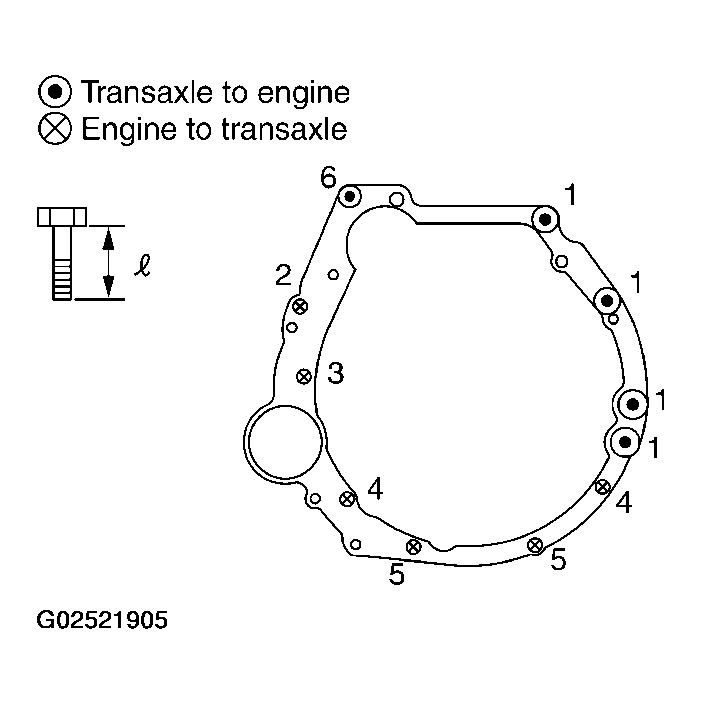

Fig 4: Tightening Transaxle To Engine Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Installation of the remaining components is in the reverse order of removal.

NOTE:

Check fluid level in transaxle.
Move selector lever through all positions to be sure that transaxle operates correctly.
With parking brake applied, rotate engine at idling. Move selector lever through N to D, to 2, to 1 and to R position. A slight shock should be felt by hand gripping selector each time transaxle is shifted.
Perform road test. Refer to "ROAD TEST ".

Fig 5: Checking Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.
