Power Transmission

WARNING: This page is about a different variant/trim than selected.

P and N Positions

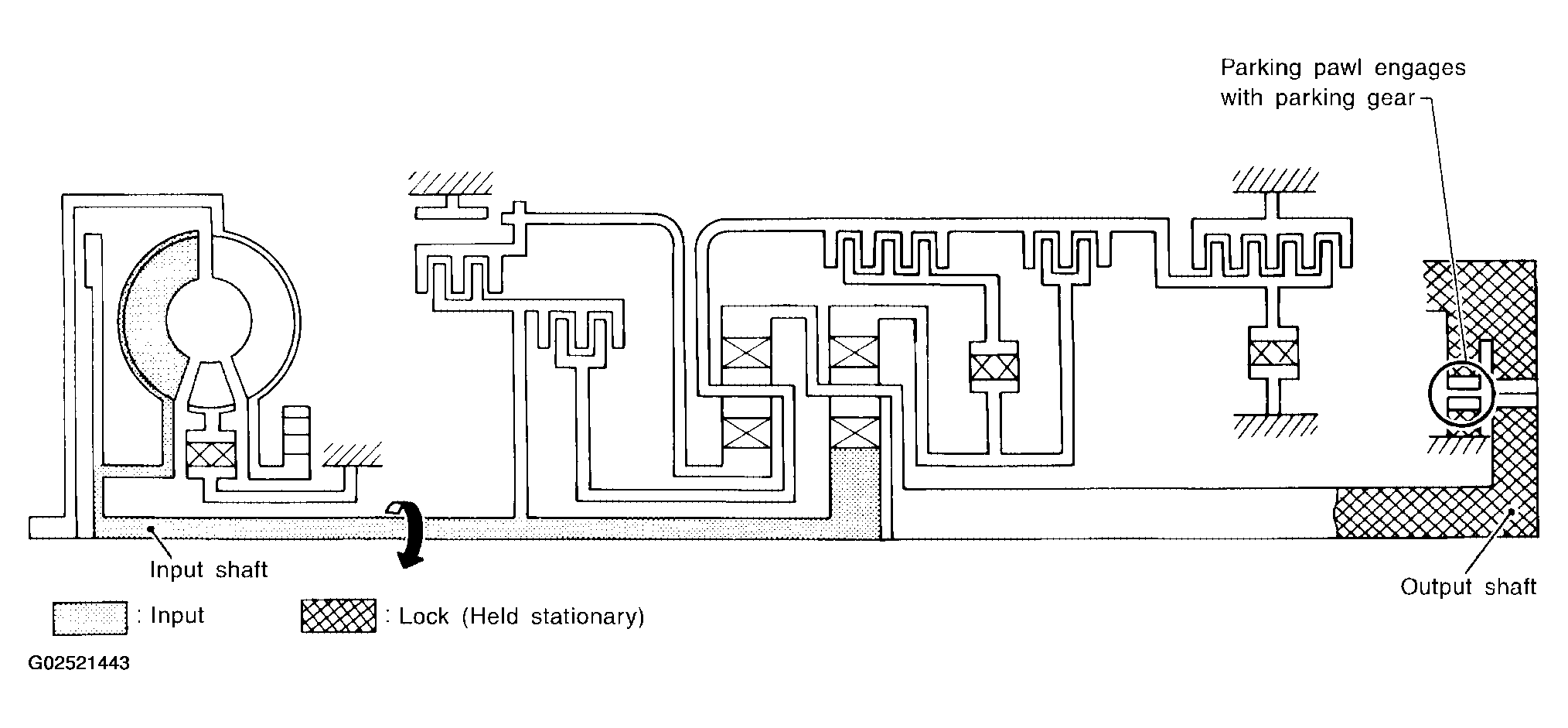

Fig 1: Positioning Power Transmission (P And N)

G02521443

Courtesy of NISSAN MOTOR CO., U.S.A.

P position
Similar to the N position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so that the power train is locked.
N position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.

1 ₁ Position

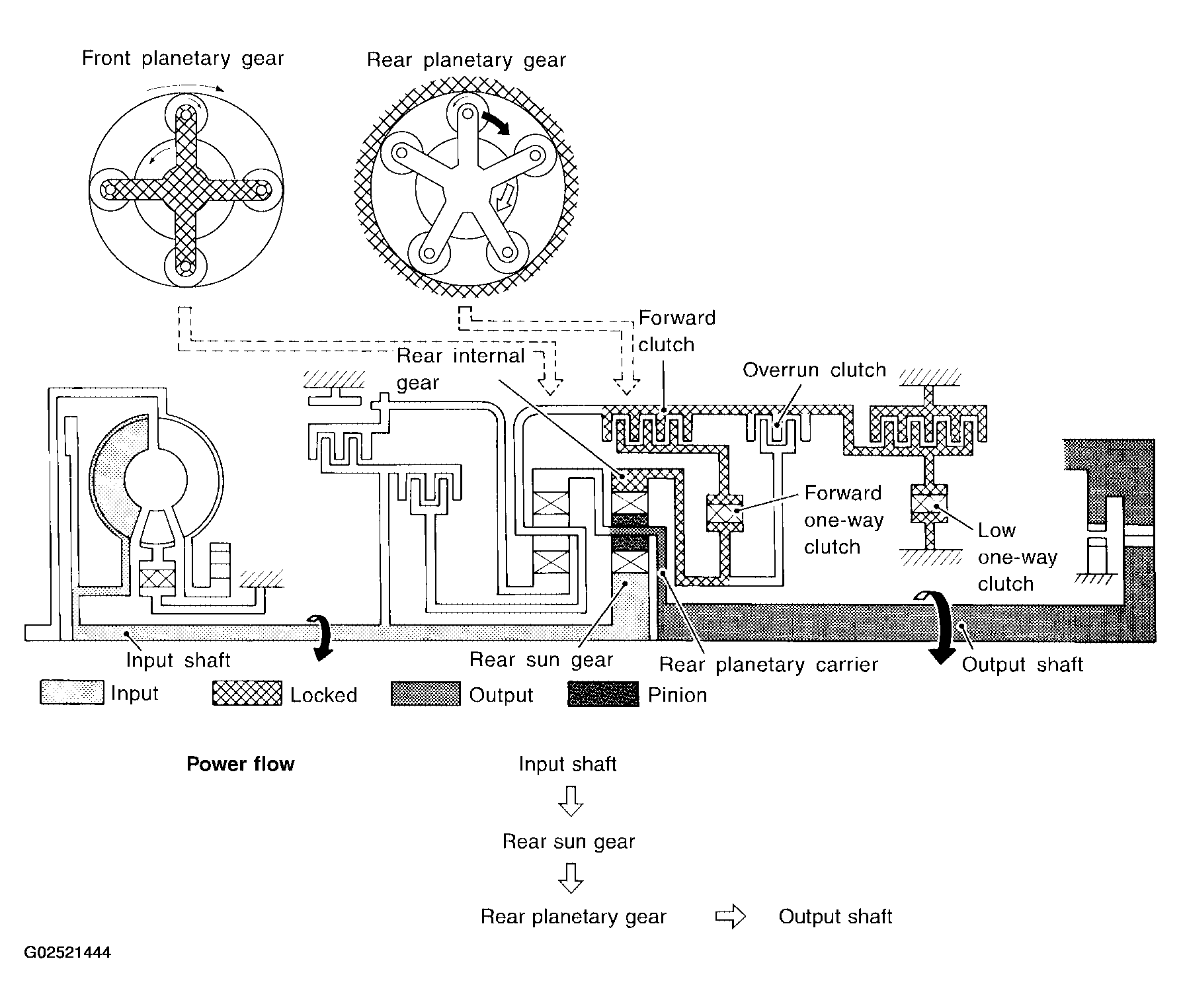

Fig 2: Positioning Power Transmission (1 Position) (1 Of 2)

G02521444

Courtesy of NISSAN MOTOR CO., U.S.A.

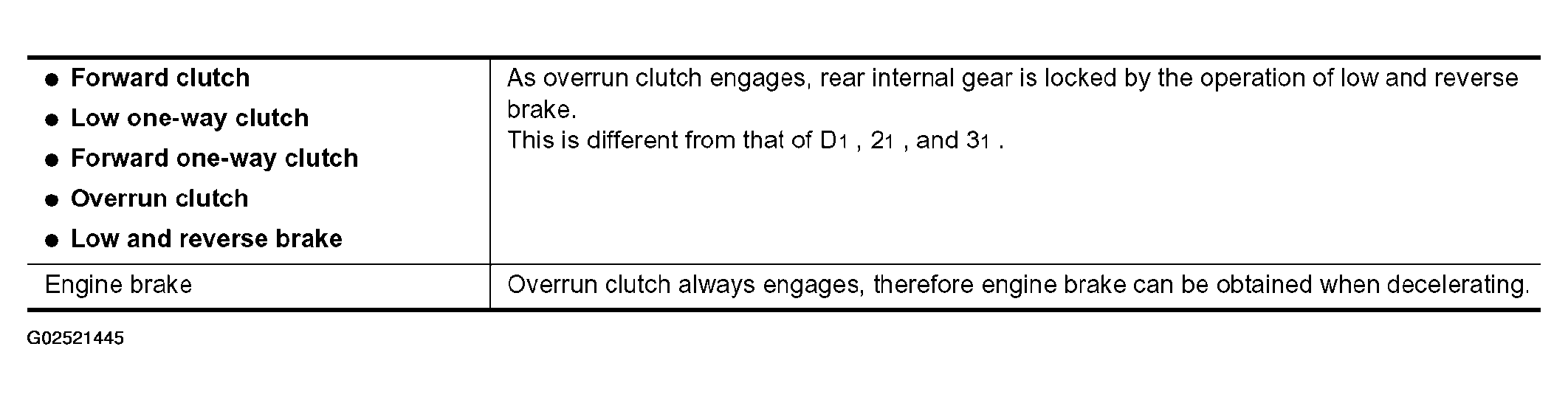

Fig 3: Positioning Power Transmission (1 Position) (2 Of 2)

G02521445

Courtesy of NISSAN MOTOR CO., U.S.A.

D ₁ and 2 ₁ Positions

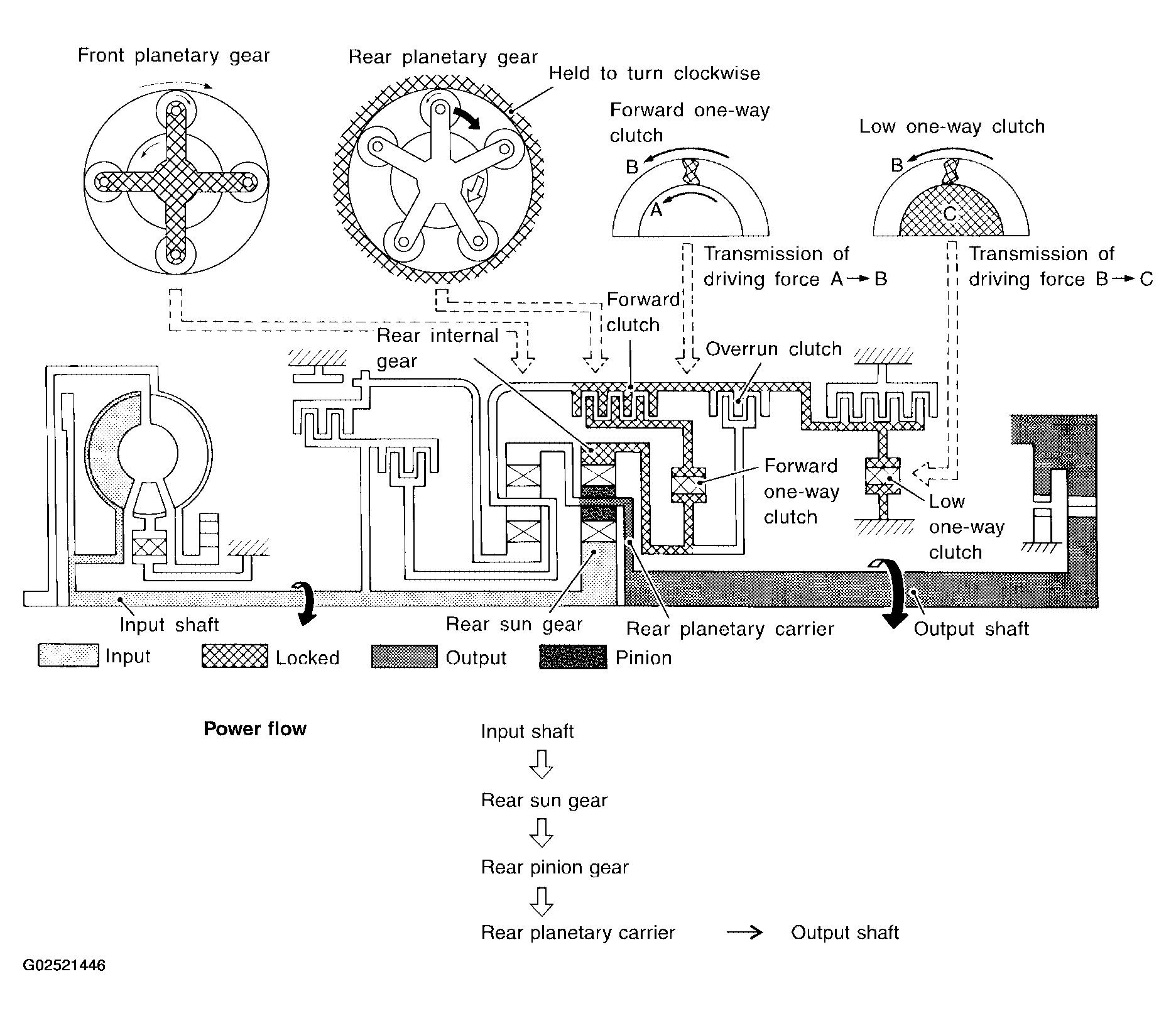

Fig 4: Positioning Power Transmission (D1 And 2₁ Positions)

G02521446

Courtesy of NISSAN MOTOR CO., U.S.A.

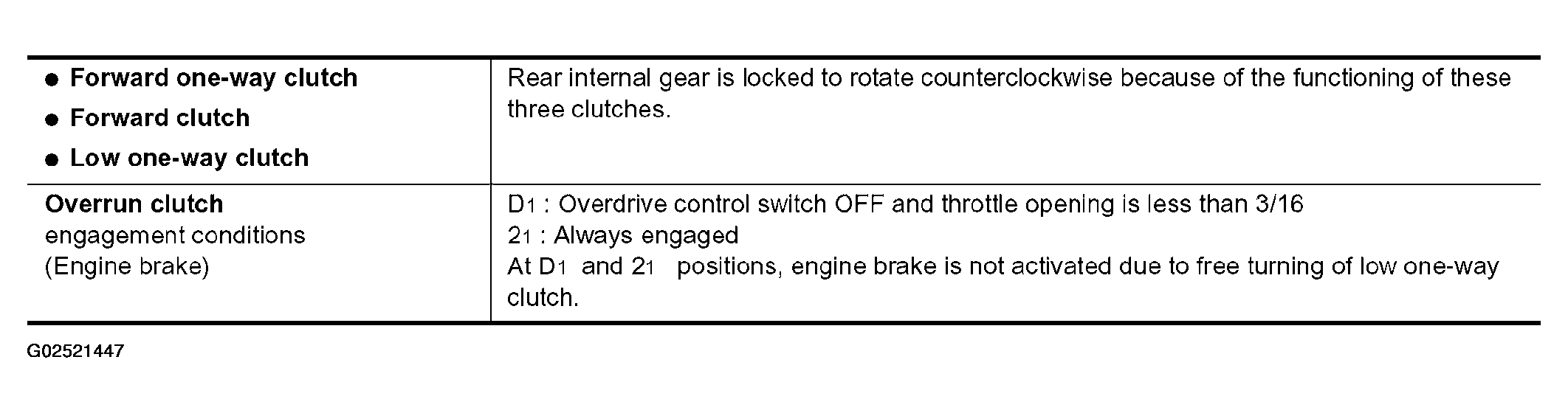

Fig 5: Power Transmission Reference Chart

G02521447

Courtesy of NISSAN MOTOR CO., U.S.A.

D ₂ , 3 ₂ , 2 ₂ and 1 ₂ Positions

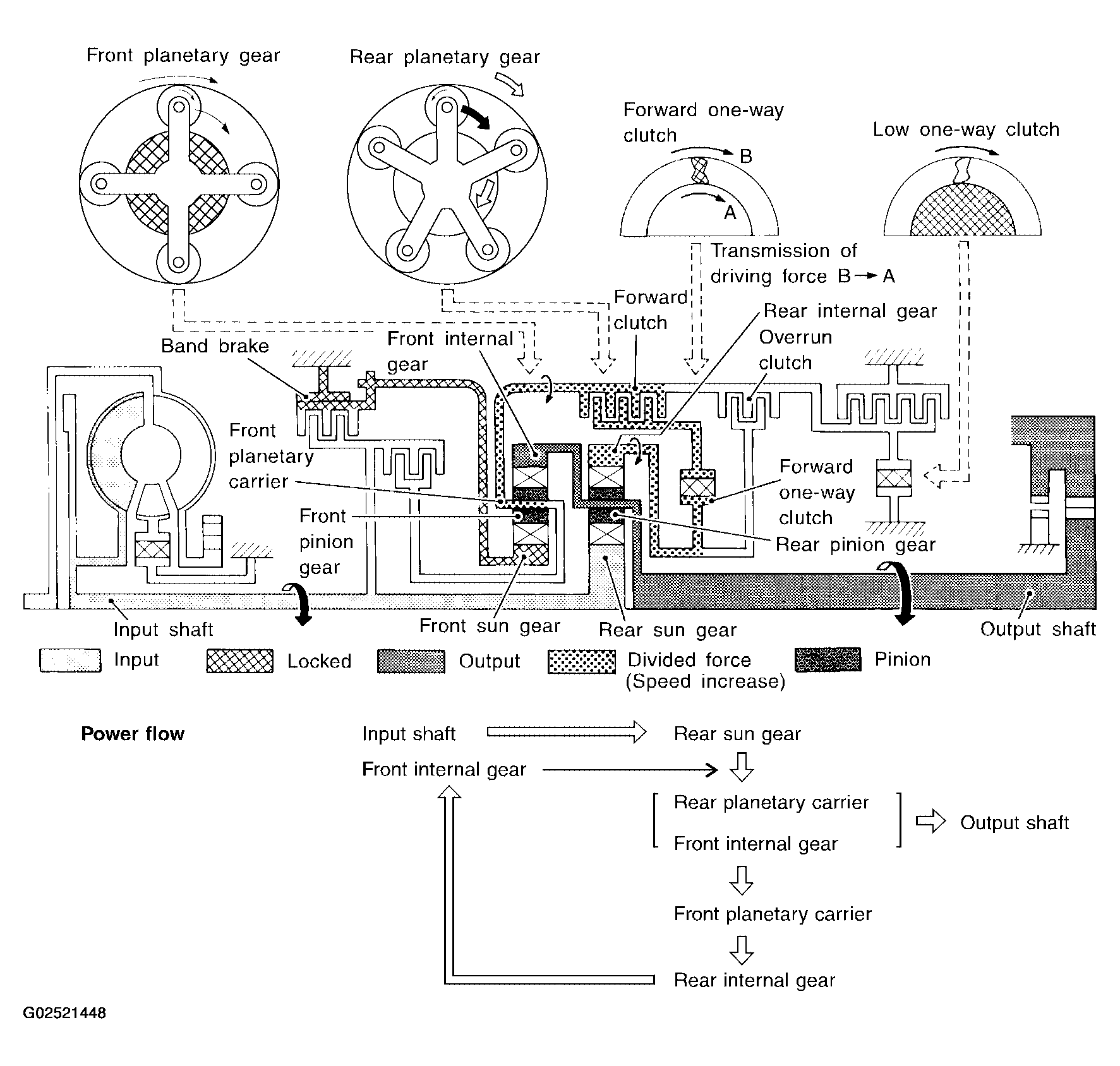

Fig 6: Positioning Power Transmission D2, 3₂ , 2₂ And 1₂ Positions

G02521448

Courtesy of NISSAN MOTOR CO., U.S.A.

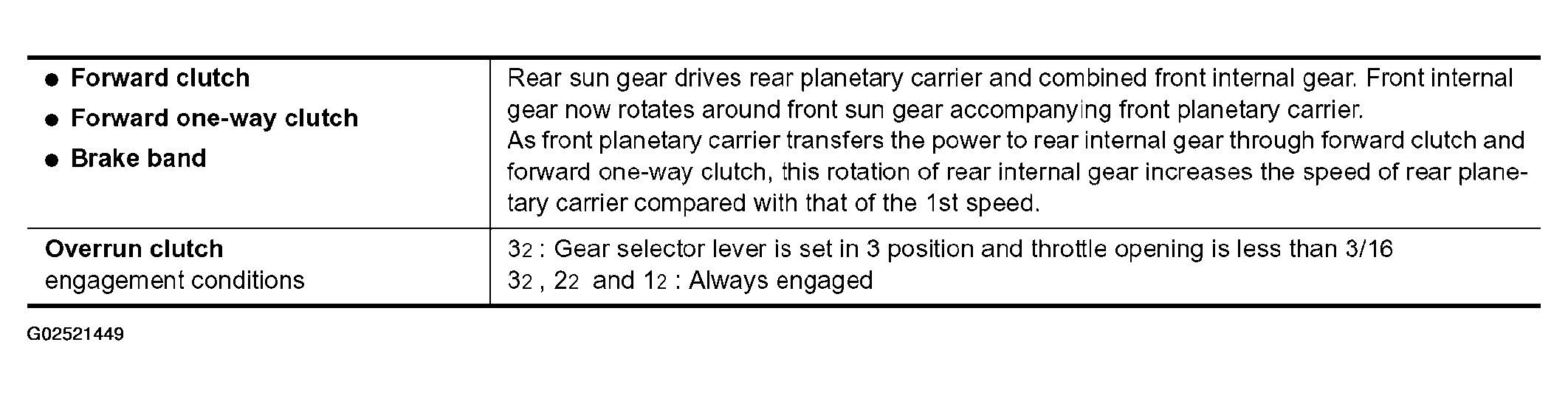

Fig 7: Power Transmission Reference Chart

G02521449

Courtesy of NISSAN MOTOR CO., U.S.A.

D ₃ and 3 ₃ Positions

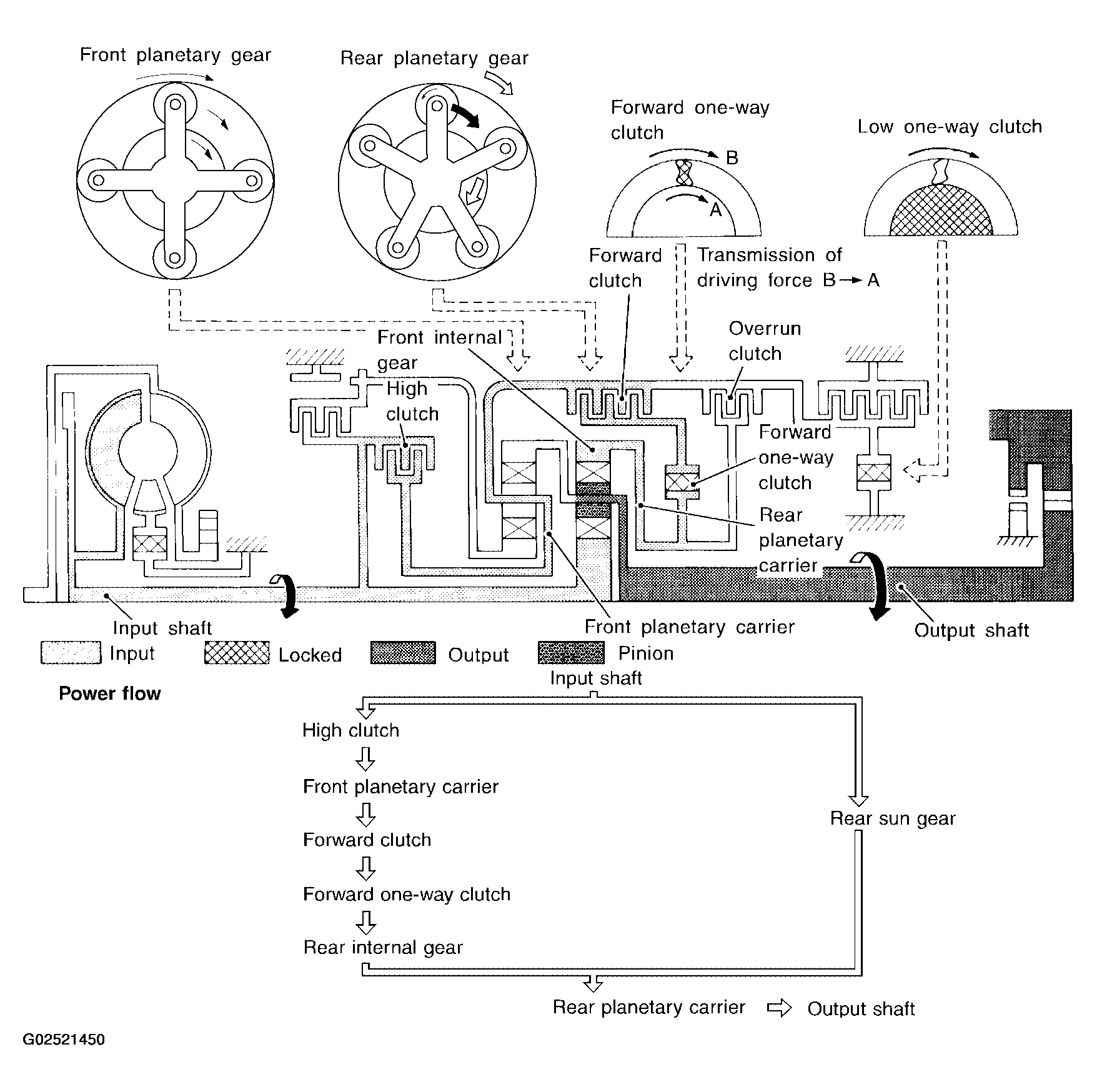

Fig 8: Power Transmission D3 And 3₃ Positions

G02521450

Courtesy of NISSAN MOTOR CO., U.S.A.

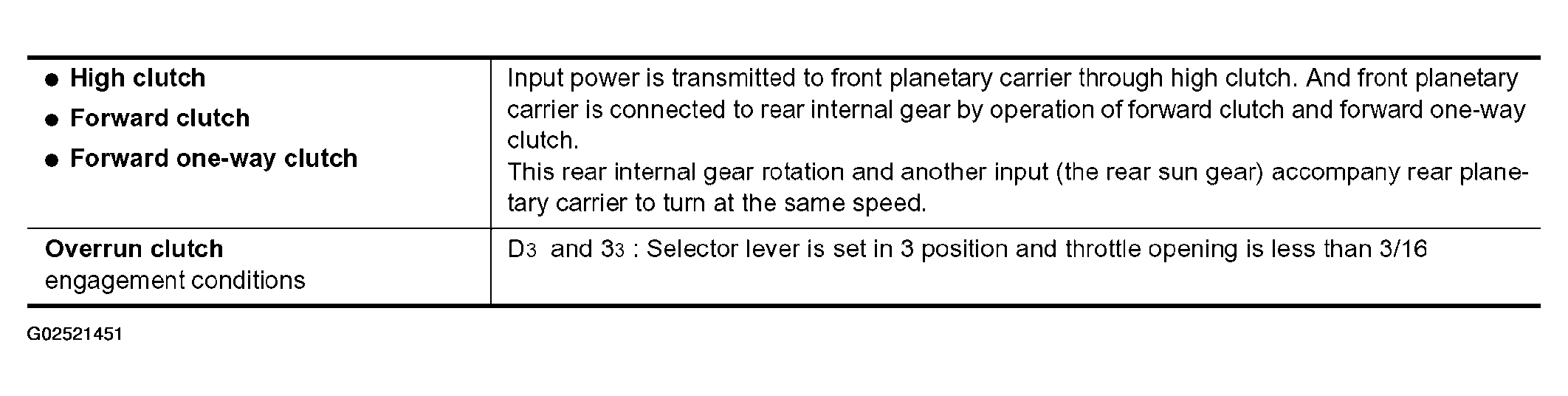

Fig 9: Power Transmission Reference Chart

G02521451

Courtesy of NISSAN MOTOR CO., U.S.A.

D ₄ Position

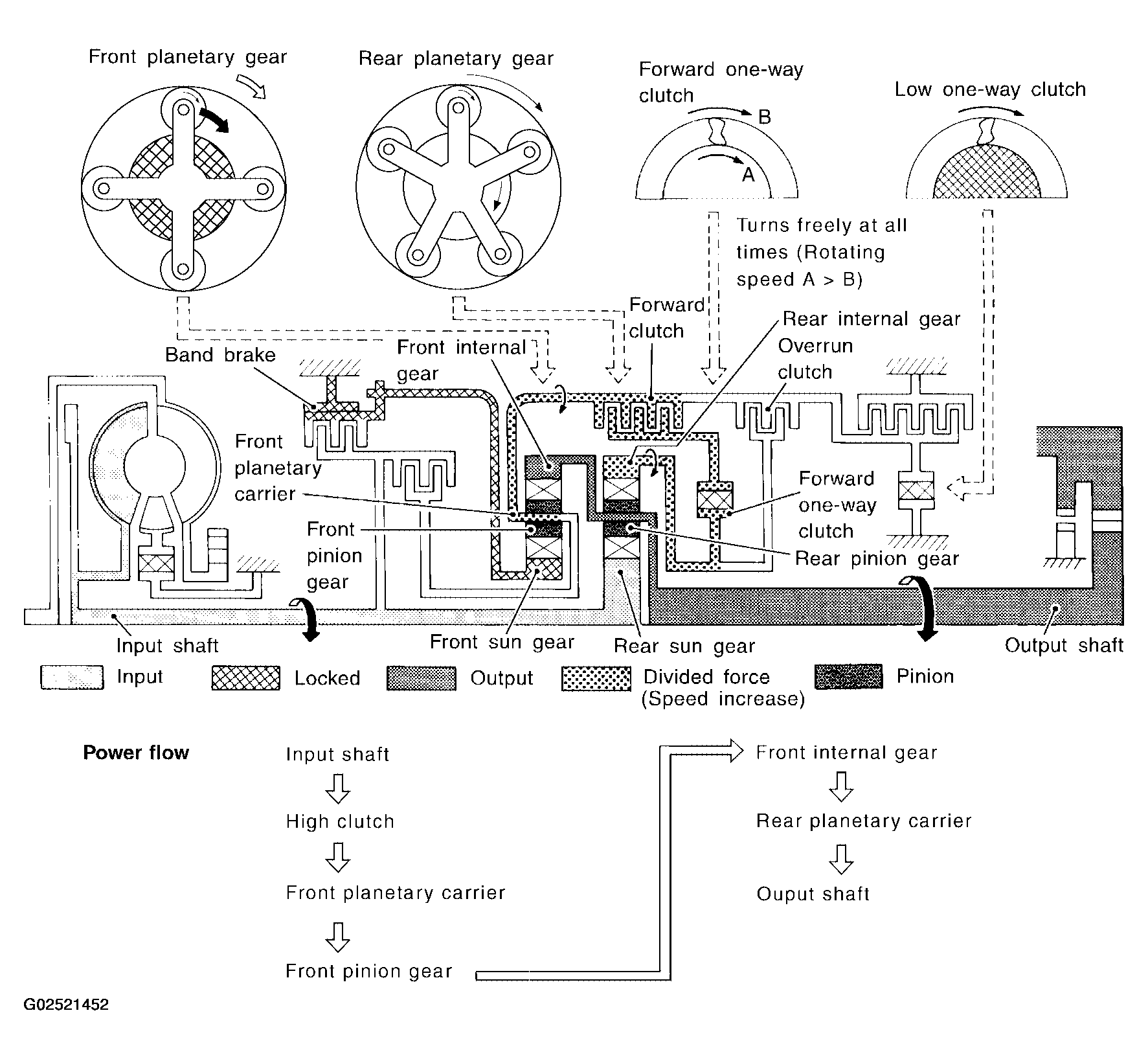

Fig 10: Power Transmission Position (D 4)

G02521452

Courtesy of NISSAN MOTOR CO., U.S.A.

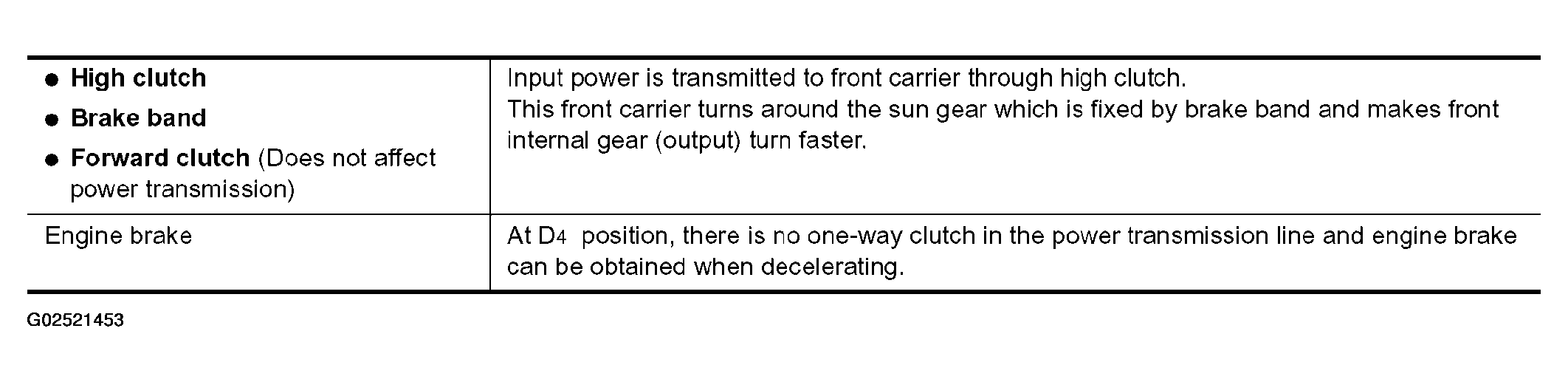

Fig 11: Power Transmission Reference Chart

G02521453

Courtesy of NISSAN MOTOR CO., U.S.A.

R Position

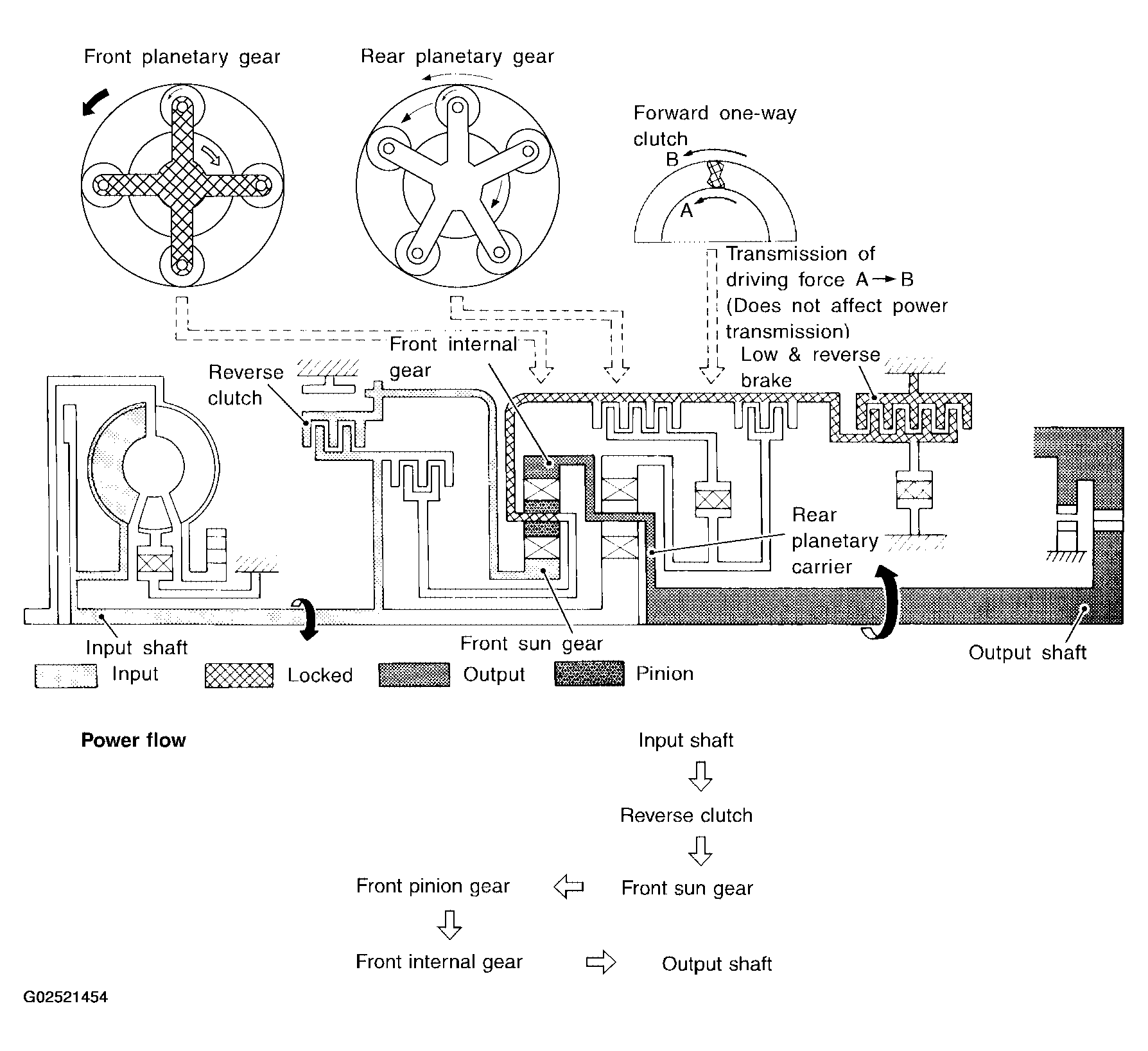

Fig 12: Power Transmission Position (R)

G02521454

Courtesy of NISSAN MOTOR CO., U.S.A.

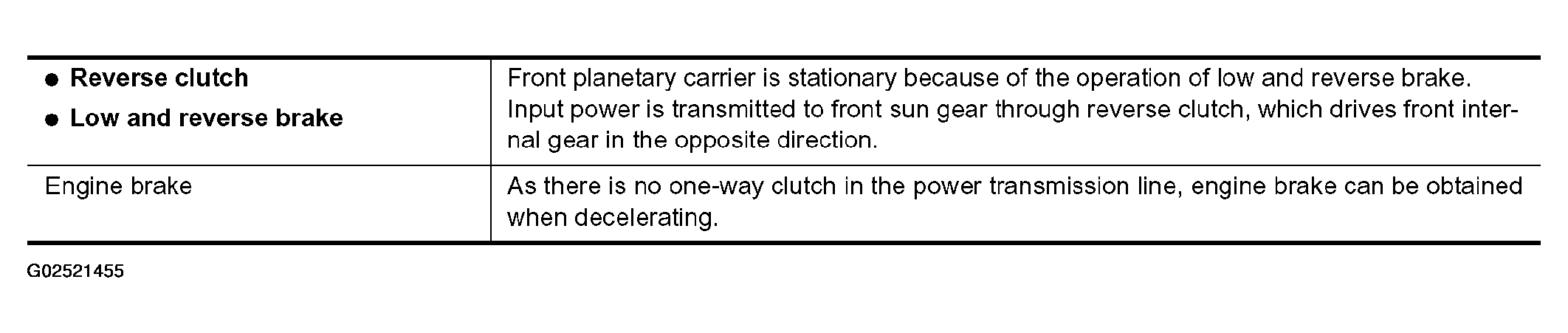

Fig 13: Power Transmission Reference Chart

G02521455

Courtesy of NISSAN MOTOR CO., U.S.A.
