Revolution Sensor Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect electrical connector.
  2. Remove revolution sensor from A/T.
  3. Reinstall any part removed.
    NOTE: Always use new sealing parts.

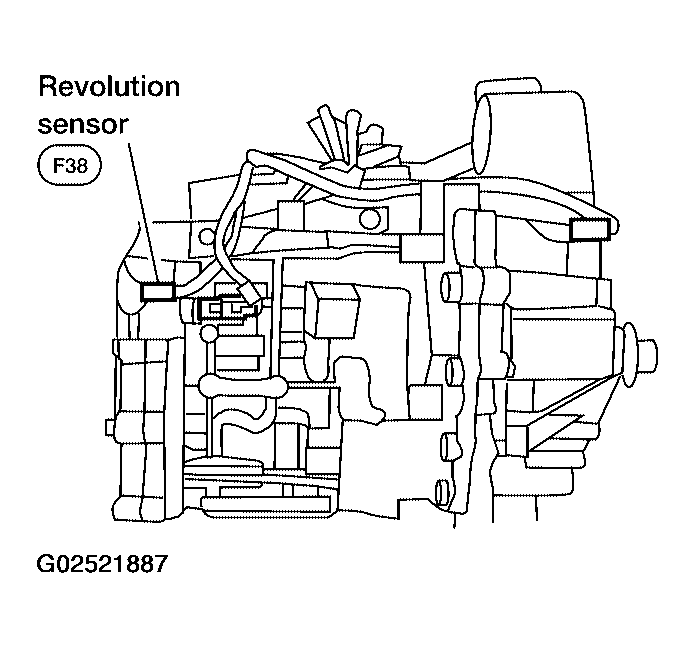

    Fig 1: Removing Revolution Sensor From A/T
    G02521887Courtesy of NISSAN MOTOR CO., U.S.A.
