Section 5 (Automatic Transmission (Re4F04B))
>>
On Board Diagnostic System Description
>>
Diagnostic Trouble Codes Work Support Mode
>>
Notes
Diagnostic Trouble Codes Work Support Mode: Notes
WARNING:
This page is about a different variant/trim than selected.

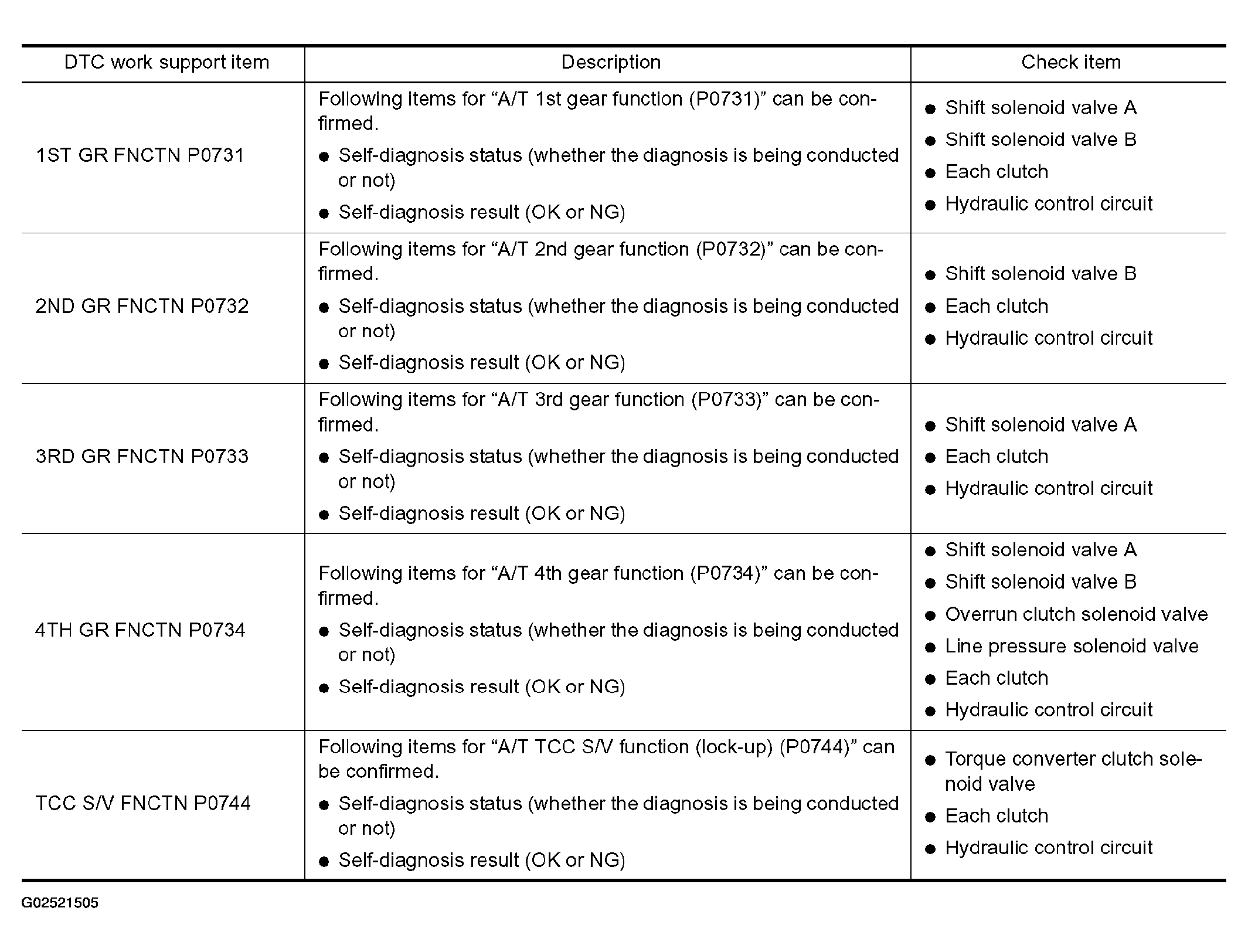

Fig 1: Troubleshooting Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
