Data Monitor Mode (A/T)

WARNING: This page is about a different variant/trim than selected.

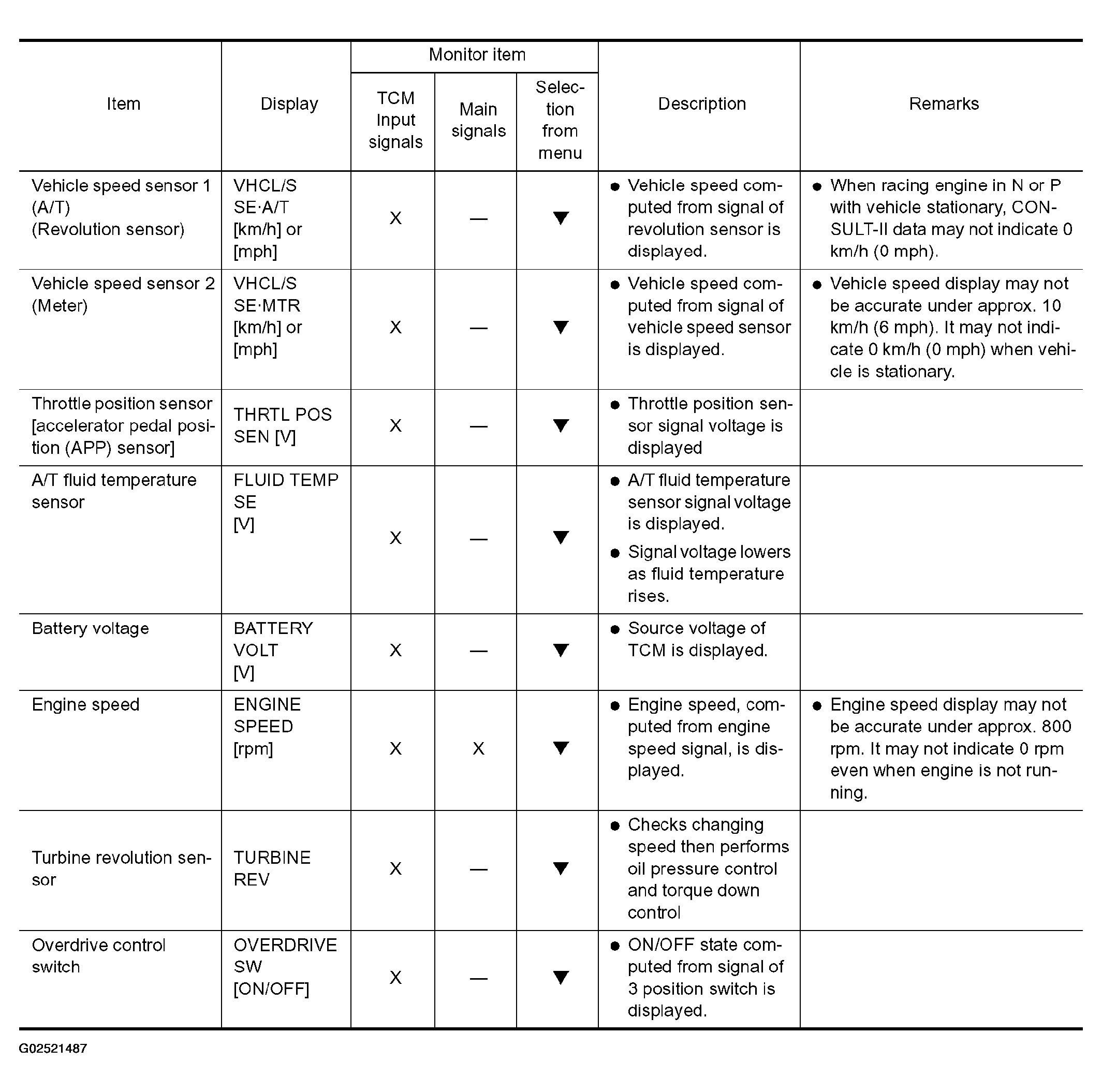

Fig 1: Data Monitor Mode (A/T) (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

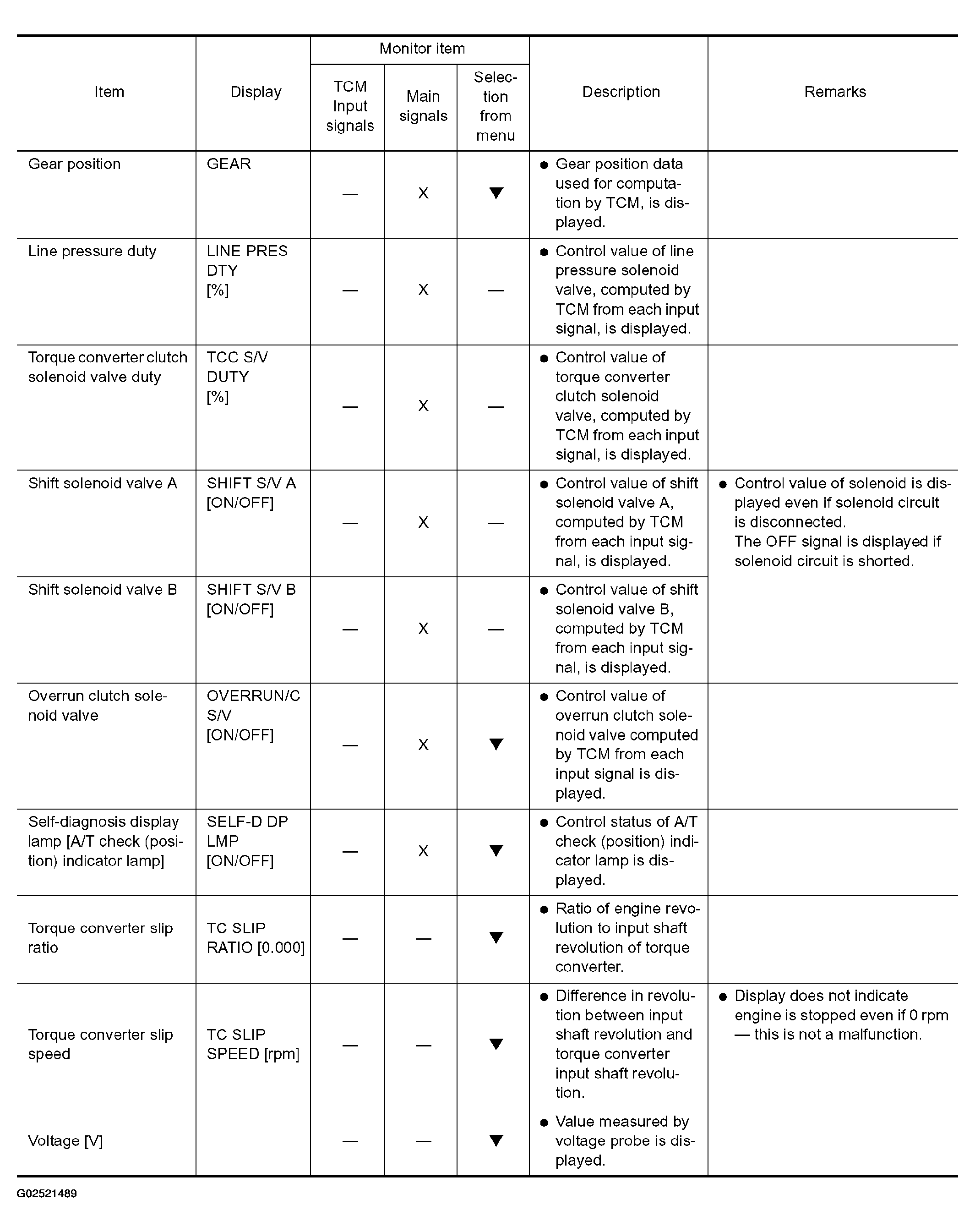

Fig 2: Data Monitor Mode (A/T) (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

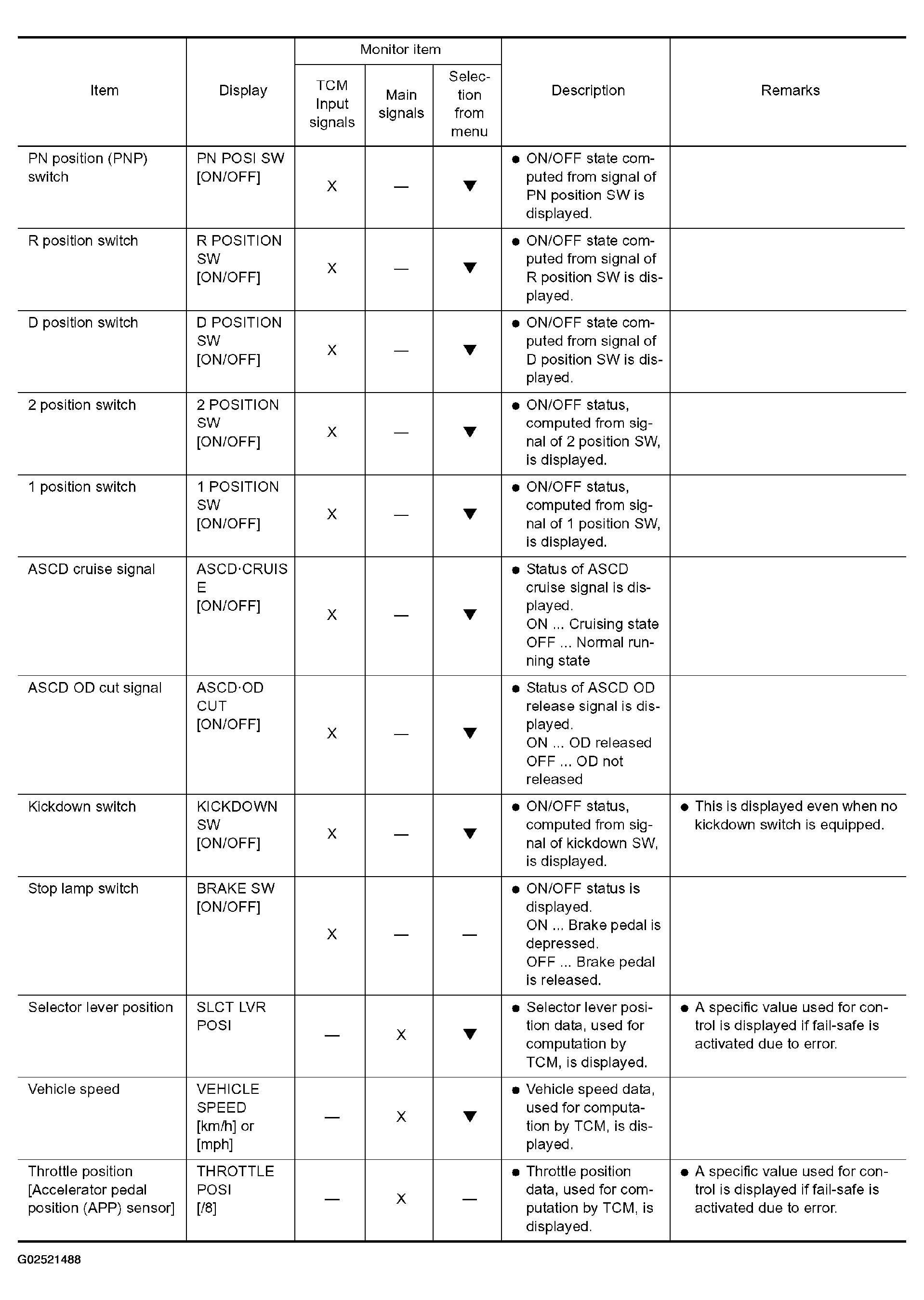

Fig 3: Data Monitor Mode (A/T) (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

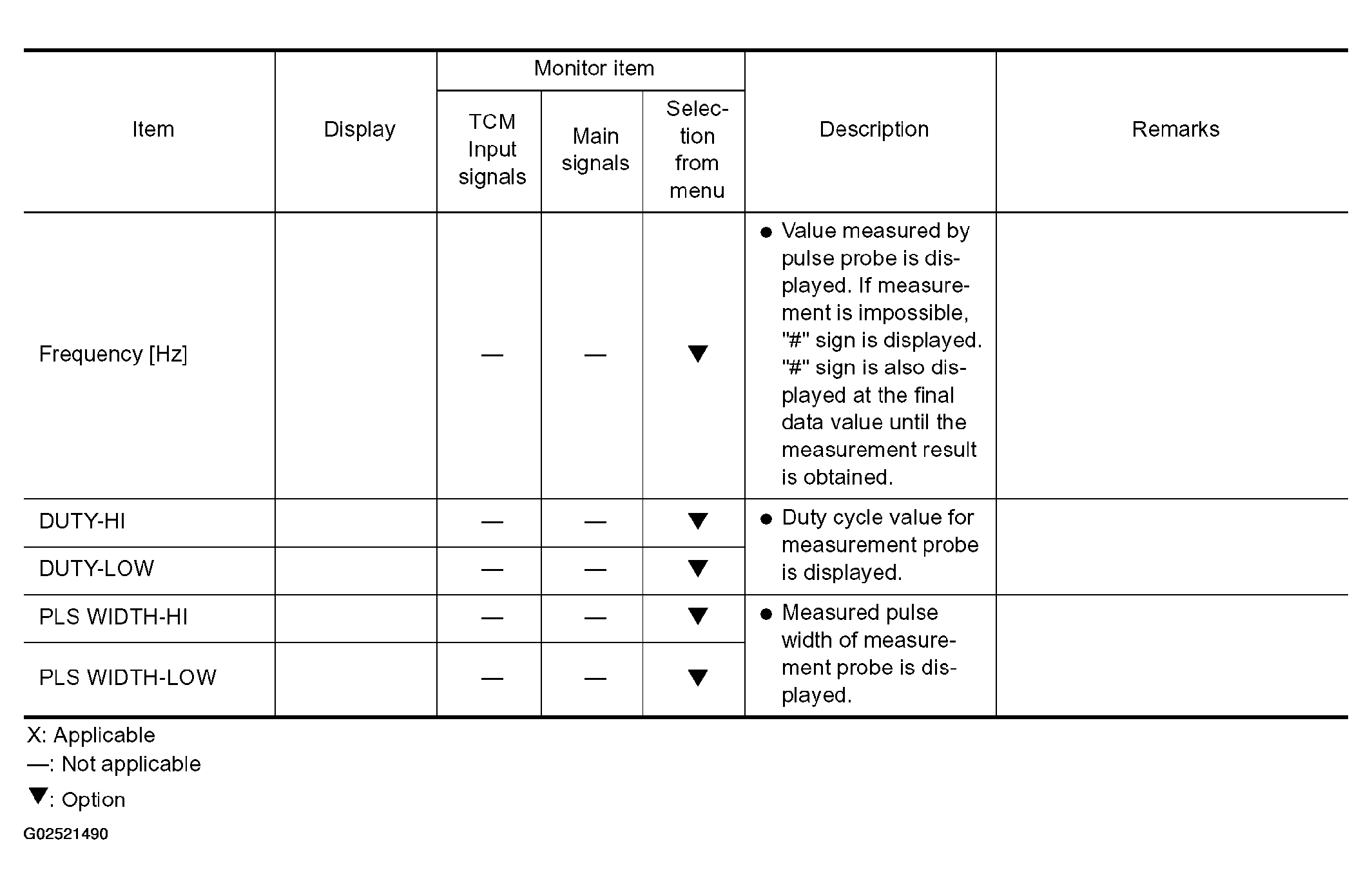

Fig 4: Data Monitor Mode (A/T) (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
