Consult-II Reference Value In Data Monitor Mode

WARNING: This page is about a different variant/trim than selected.

Remarks: Specification data are reference values.

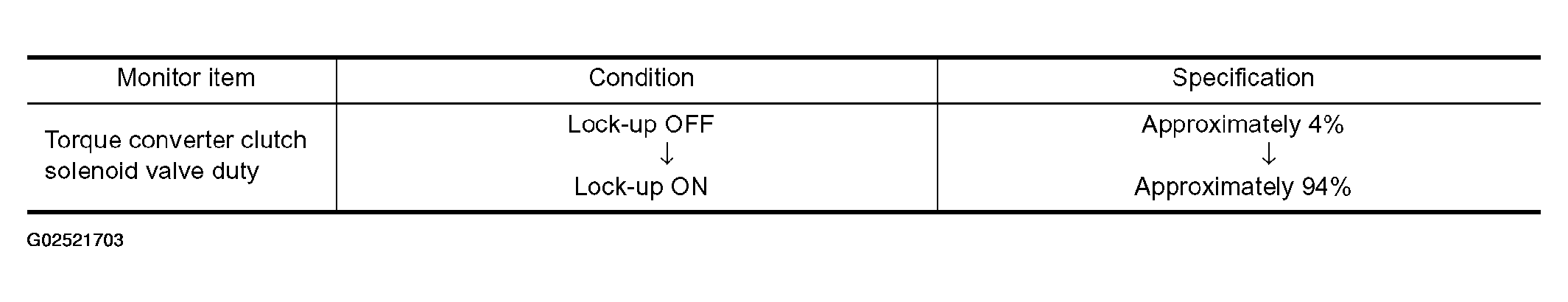

Fig 1: CONSULT-II Data Monitor Mode Reference Value Chart
G02521703Courtesy of NISSAN MOTOR CO., U.S.A.
