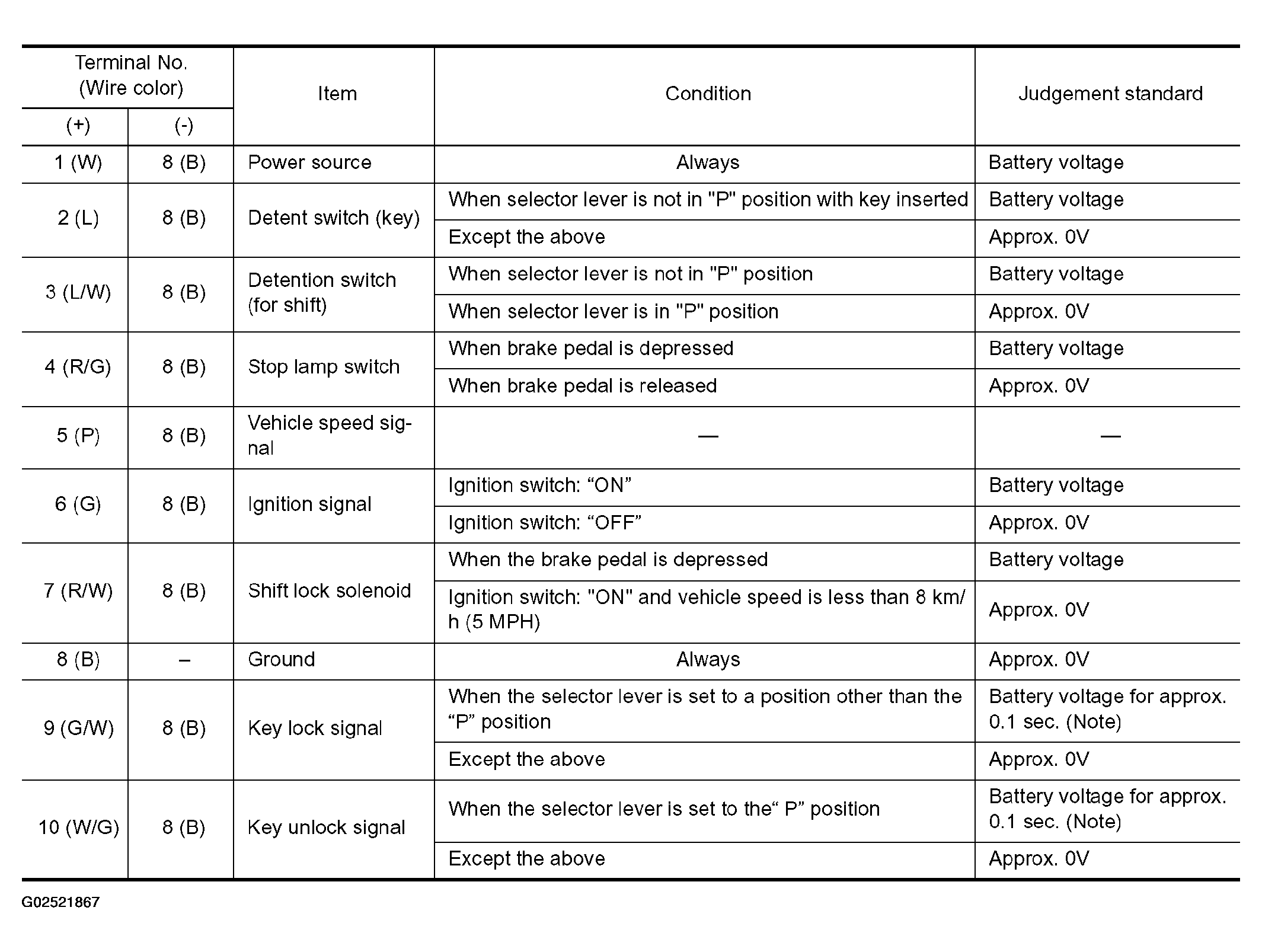

Shift Lock Control Unit Inspection Table
WARNING: This page is about a different variant/trim than selected.
Data are reference values.
NOTE:
Make sure that the pointer swings only momentarily because the output time is so short. If the inspection is done with an oscilloscope. It should be observed that the power source voltage lasts for 3.5 to 10 ms.
