Stop Lamp Switch

WARNING: This page is about a different variant/trim than selected.

Check continuity between terminals of the stop lamp switch connector.

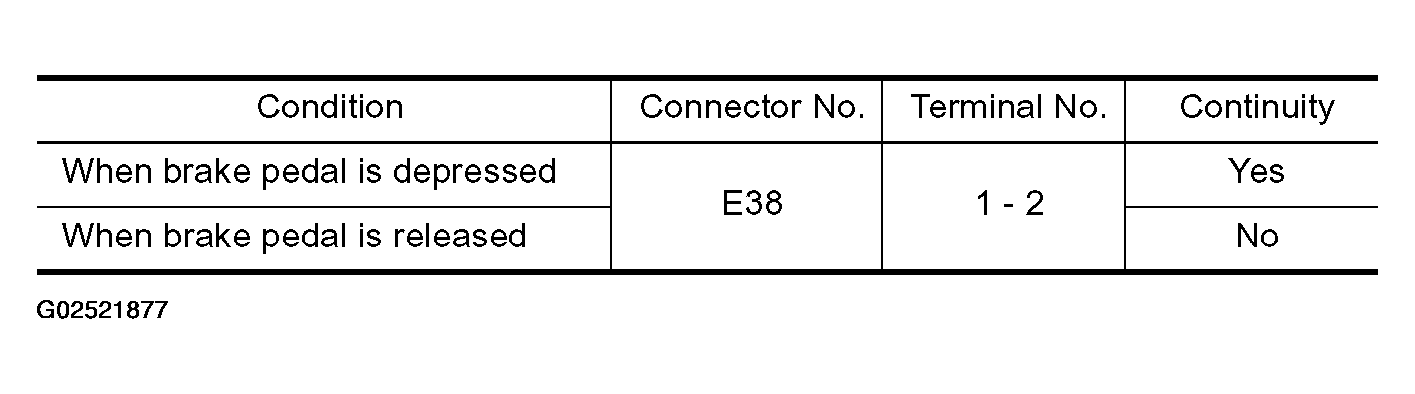

Fig 1: Stop Lamp Switch Terminals Continuity Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

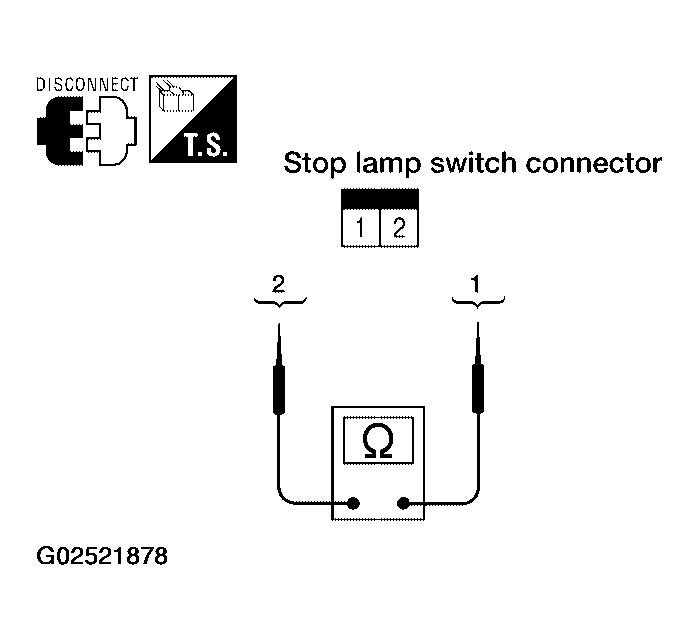

Fig 2: Checking Continuity Between Terminals Of Stop Lamp Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to "INSPECTION AND ADJUSTMENT ".
