Shift Lock Solenoid

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.
SHIFT LOCK SOLENOID CONNECTOR NO AND TERMINAL NO

Connector No. Terminal No.
M34 9 (Battery voltage) -10 (Ground)

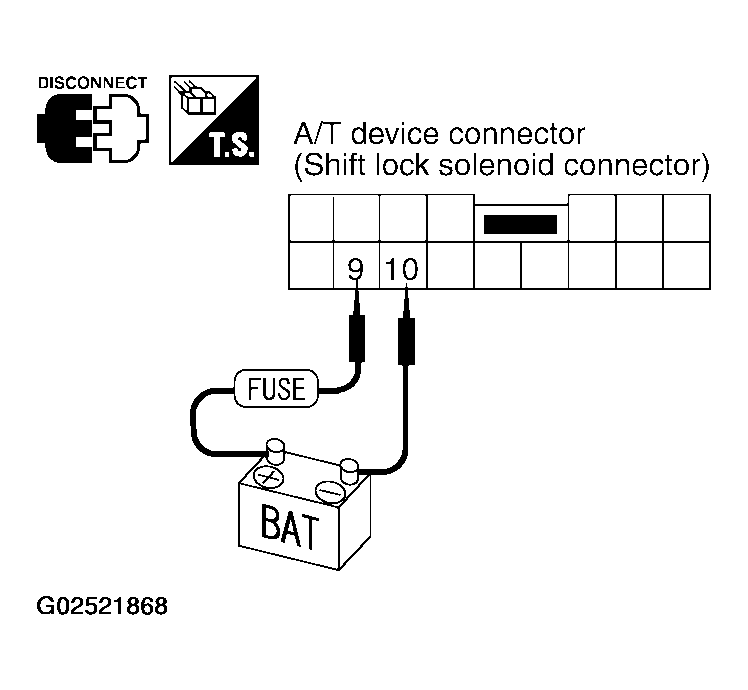

Fig 1: Checking Shift Lock Solenoid Operation
G02521868Courtesy of NISSAN MOTOR CO., U.S.A.
