Key Switch

WARNING: This page is about a different variant/trim than selected.

Check continuity between terminals of the key switch and key lock solenoid connector.

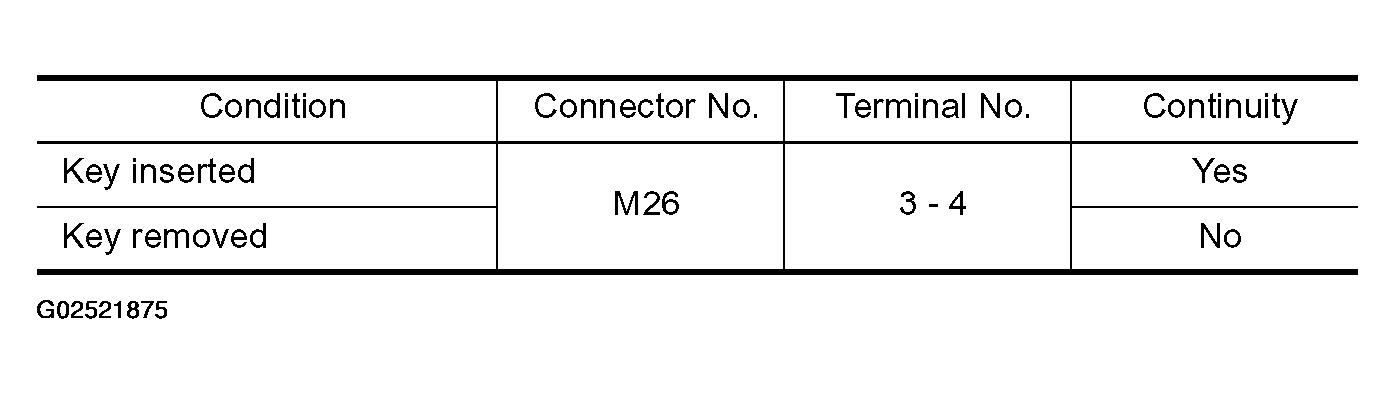

Fig 1: Key Switch Terminals Continuity Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

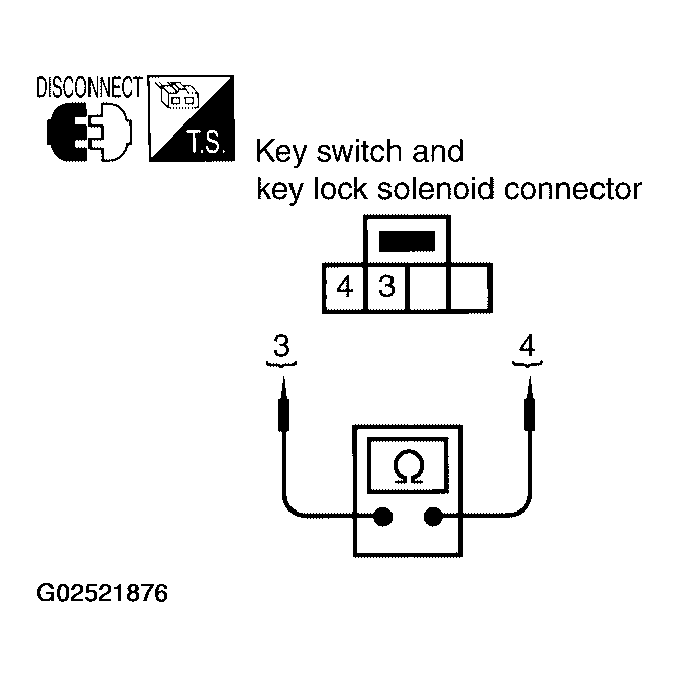

Fig 2: Checking Continuity Between Terminals Of Key Switch And Key Lock Solenoid Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
