Key Lock Solenoid

WARNING: This page is about a different variant/trim than selected.

Key Lock

Check operation by applying battery voltage to key switch and key lock solenoid connector.

CAUTION: Be careful not to cause burnout of the harness.

KEY LOCK SOLENOID CONNECTOR NO AND TERMINAL NO

Connector No.	Terminal No.
M26	1 (Battery voltage) - 2 (Ground)

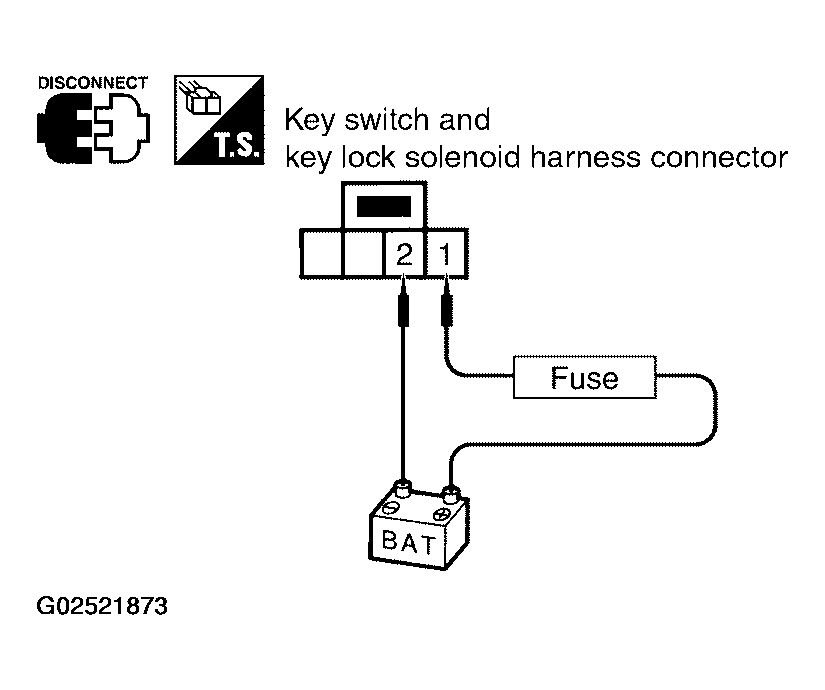

Fig 1: Checking Key Lock Solenoid Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

Key Unlock

Check operation by applying battery voltage to key switch and key lock solenoid connector.

CAUTION: Be careful not to cause burnout of the harness.

KEY UNLOCK SOLENOID CONNECTOR NO AND TERMINAL NO

Connector No.	Terminal No.
M26	2 (Battery voltage) - 1 (Ground)

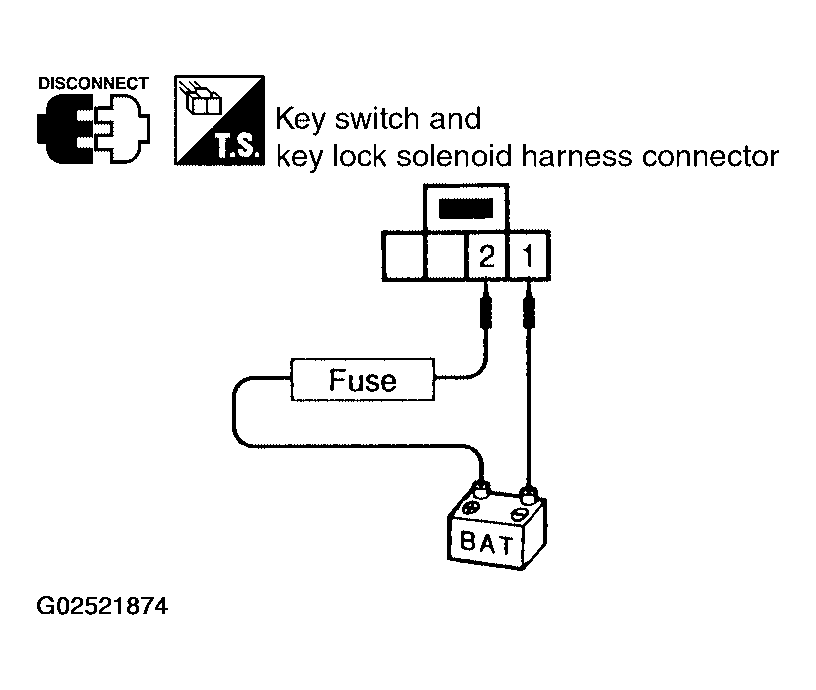

Fig 2: Checking Key Unlock Solenoid Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
