Detent Switch

WARNING: This page is about a different variant/trim than selected.

For Key:

Check continuity between terminals of the A/T device connector.

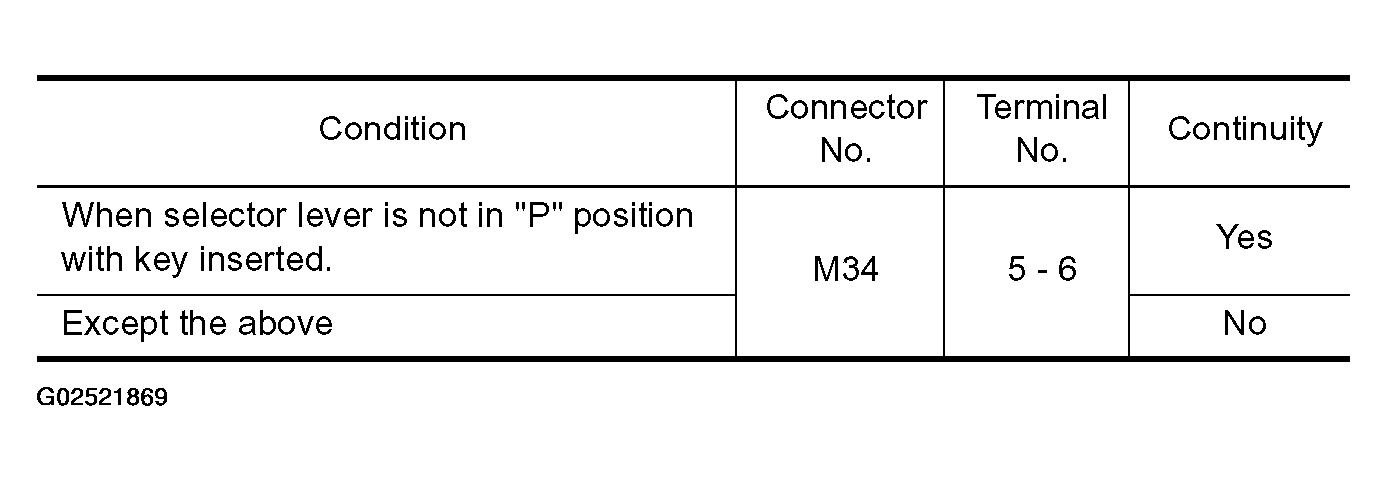

Fig 1: A/T Device Connector Terminals Continuity Reference Chart (For Key)
Courtesy of NISSAN MOTOR CO., U.S.A.

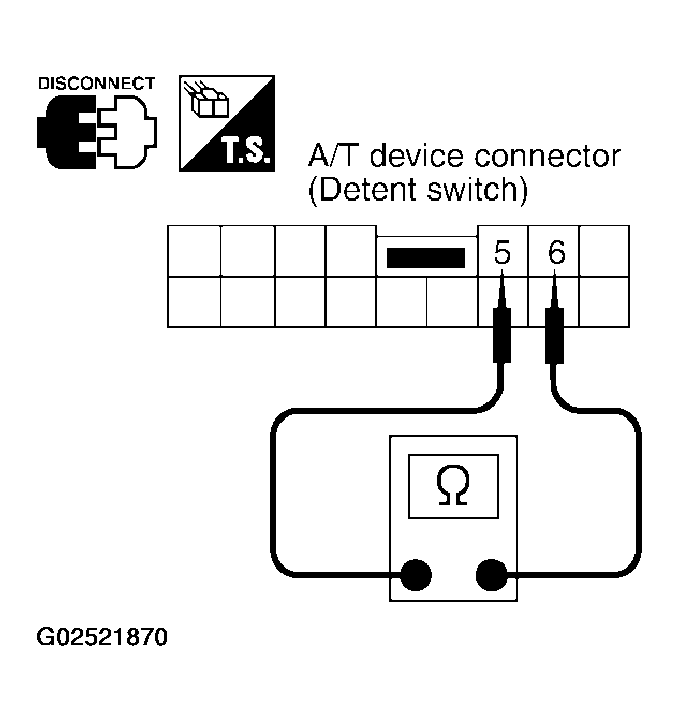

Fig 2: Checking Continuity Between Terminals Of A/T Device Connector (For Key)
Courtesy of NISSAN MOTOR CO., U.S.A.

For Shift:

Check continuity between terminals of the A/T device connector.

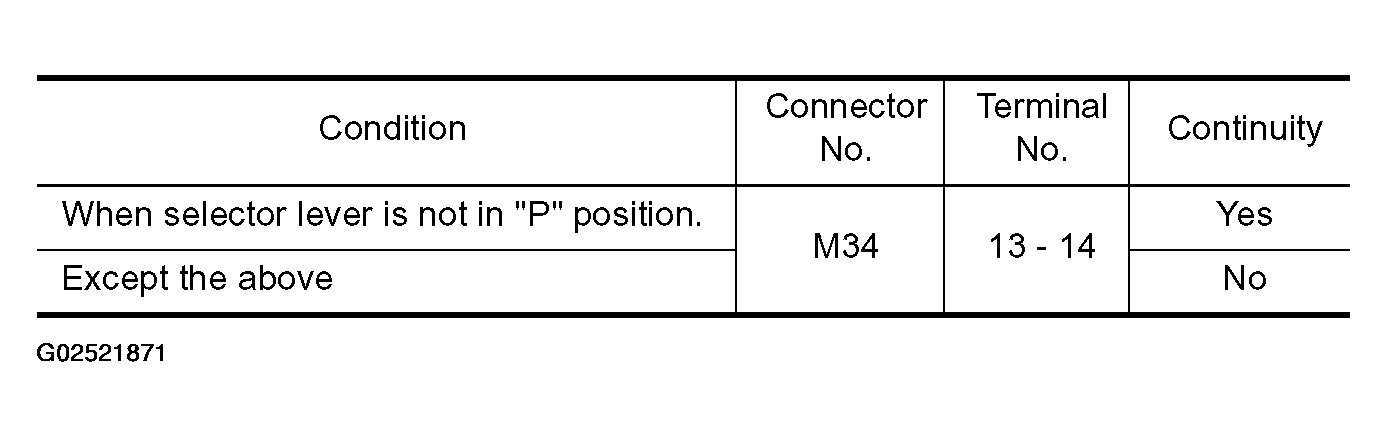

Fig 1: A/T Device Connector Terminals Continuity Reference Chart (For Shift)
Courtesy of NISSAN MOTOR CO., U.S.A.

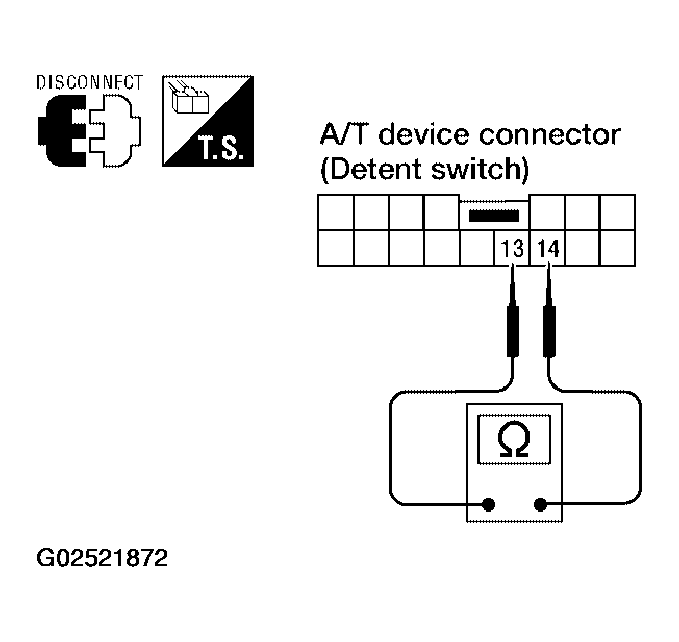

Fig 2: Checking Continuity Between Terminals Of A/T Device Connector (For Shift)
Courtesy of NISSAN MOTOR CO., U.S.A.
