Section 2 (Engine Control System - Qr25DE)
>>
Preparation
>>
Commercial Service Tools
Commercial Service Tools
WARNING:
This page is about a different variant/trim than selected.

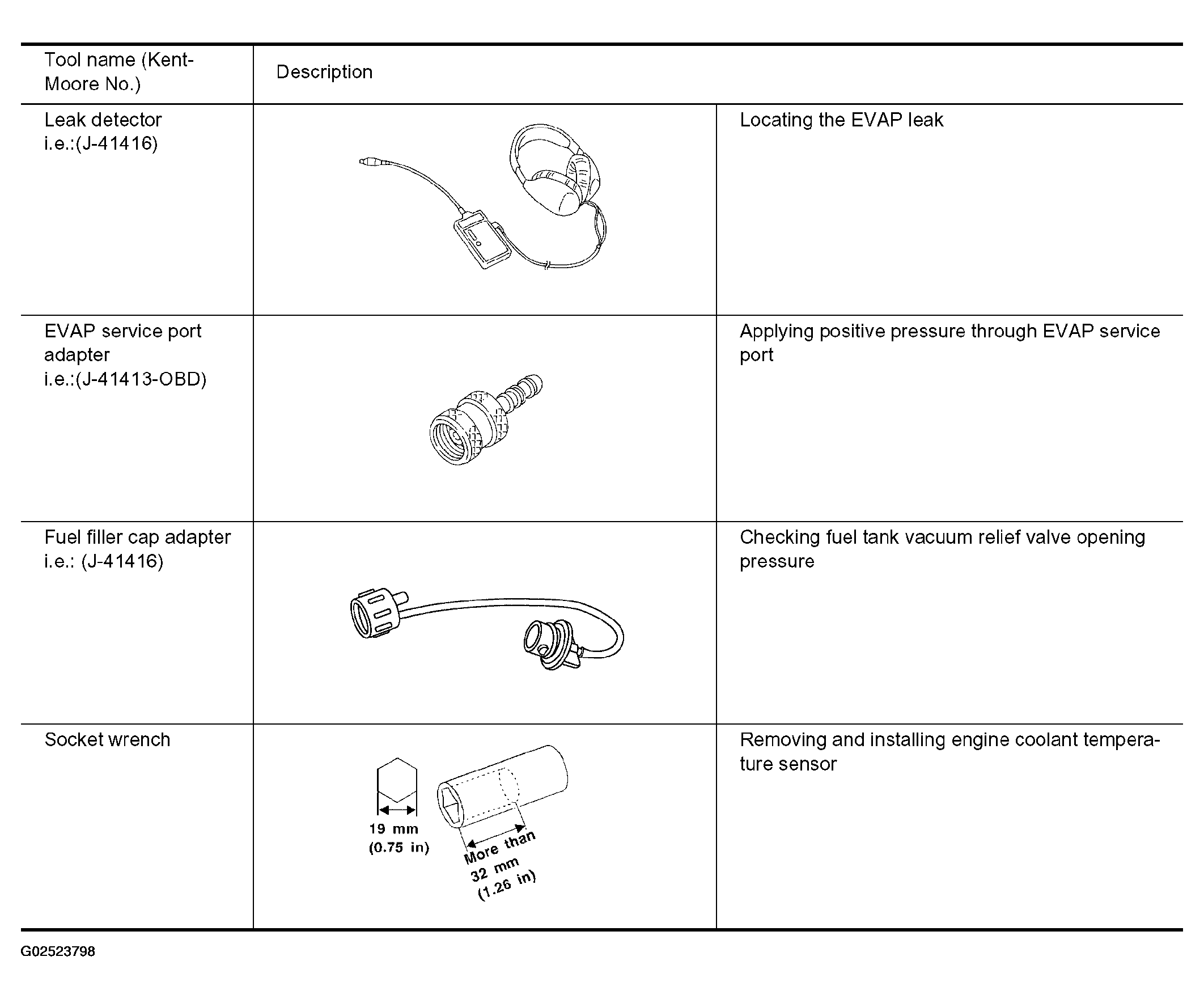

Fig 1: Commercial Service Tools - Specification (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

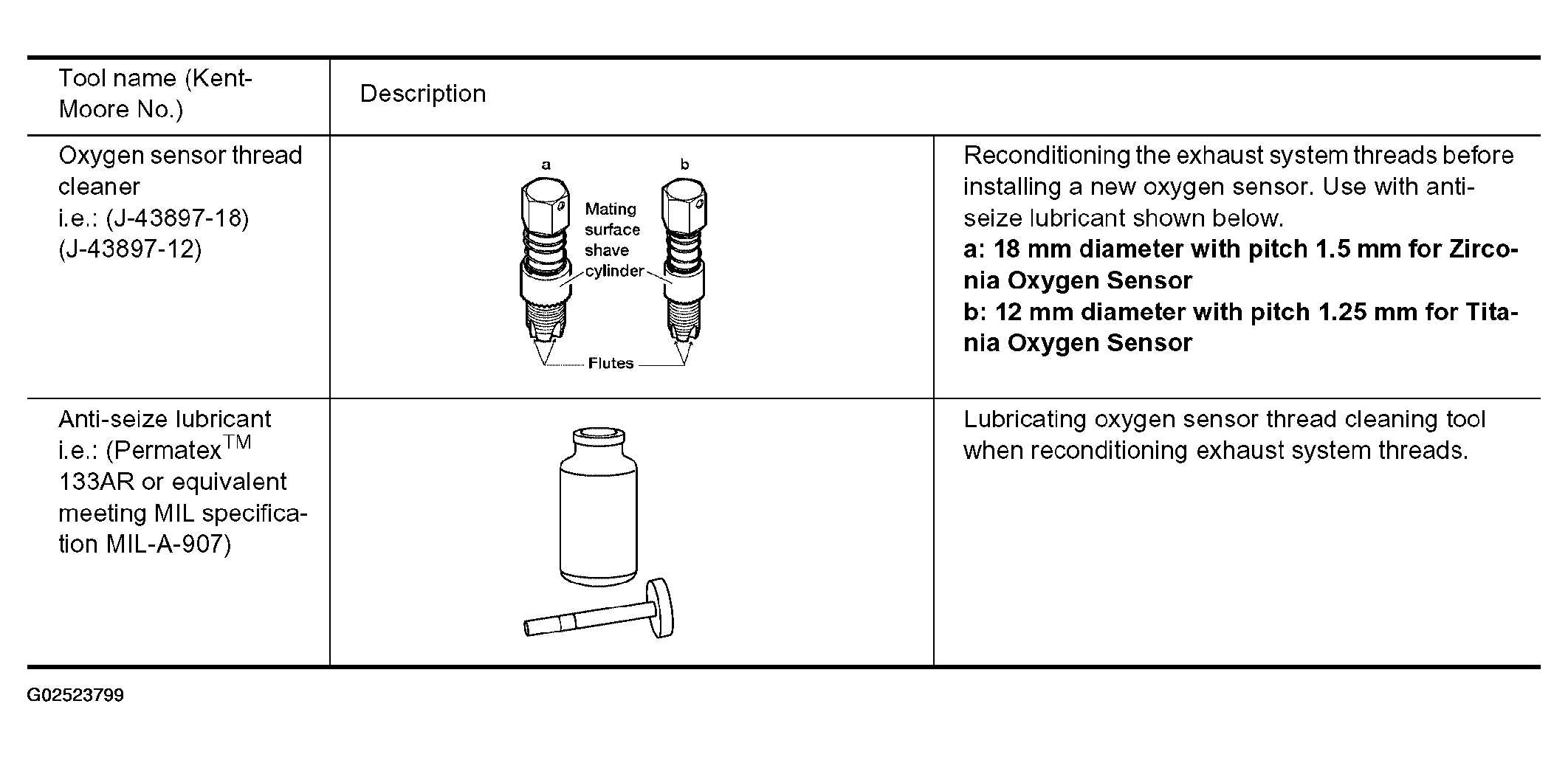

Fig 2: Commercial Service Tools - Specification (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
