Accelerator Pedal Position Sensor

WARNING: This page is about a different variant/trim than selected.

Reconnect all harness connectors disconnected.
Turn ignition switch ON.
Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground under the following conditions.

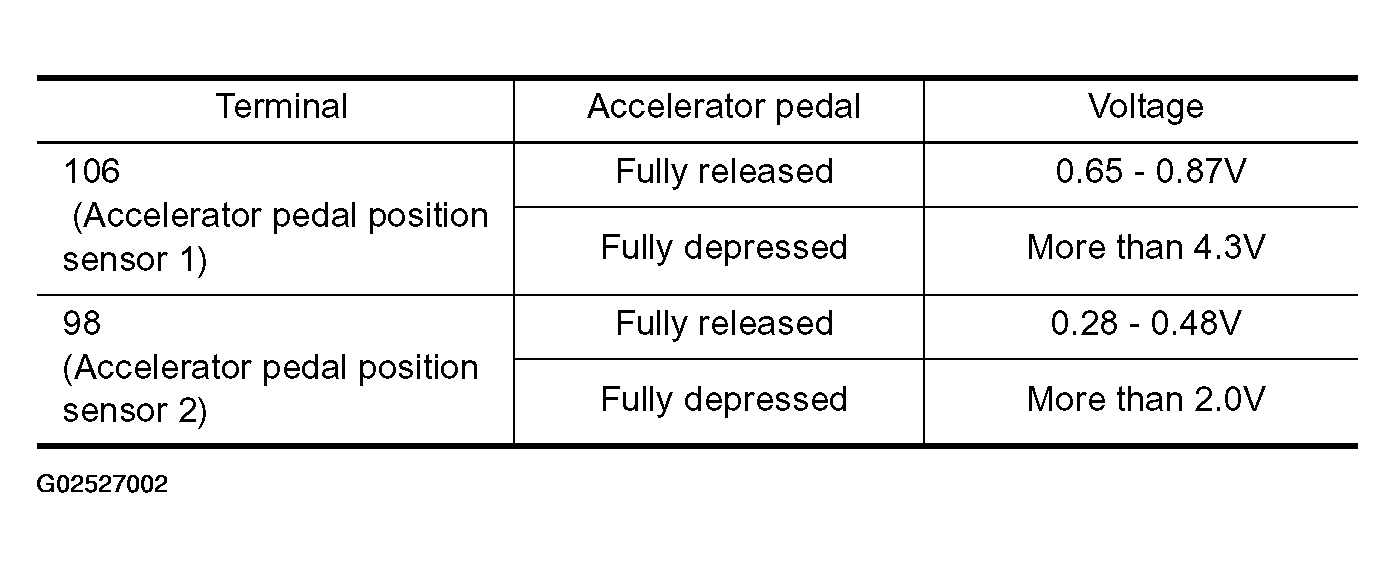

Fig 1: ECM Terminals Voltage Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Voltage Between ECM Terminals 106 (APP Sensor 1 Signal), 98 (APP Sensor 2 Signal) And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace accelerator pedal assembly and go to the next step.
Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Perform "IDLE AIR VOLUME LEARNING ".
