Engine Control System - VQ35DE
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Data Monitor (Spec) Mode
>>
Monitored Item
Monitored Item

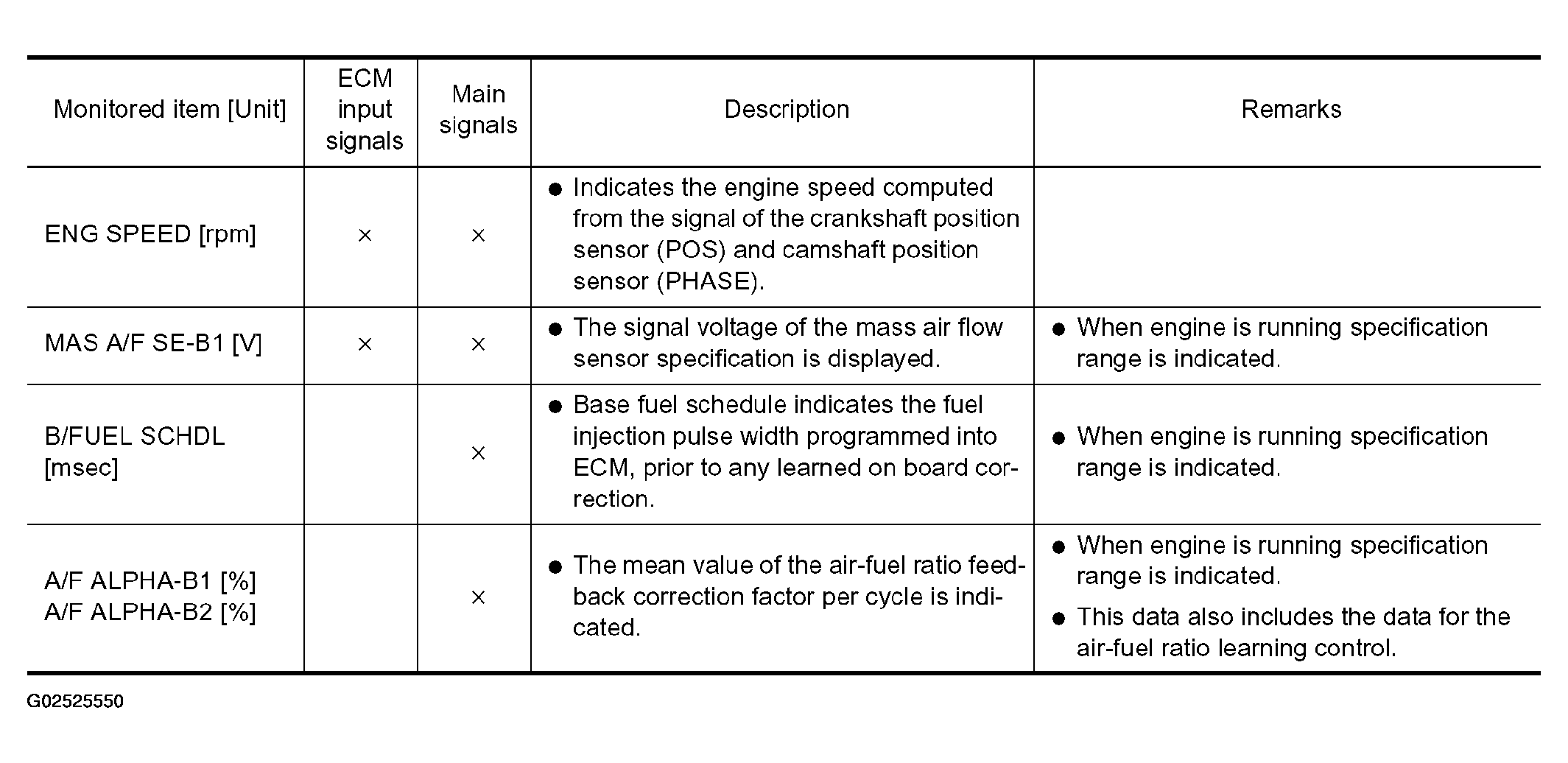

Fig 1: Monitored Item Reference Chart - Data Monitor (SPEC) Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
Courtesy of NISSAN MOTOR CO., U.S.A.
