Component Description

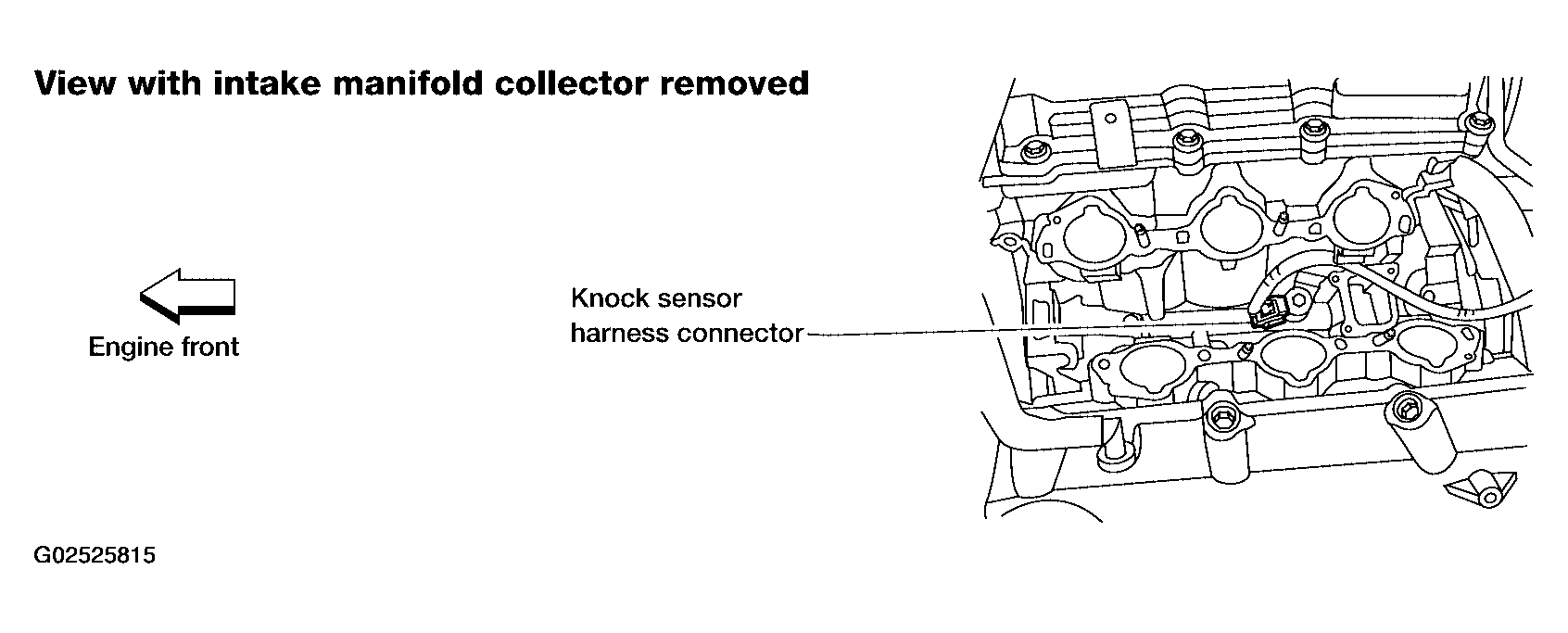

The knock sensor is attached to the cylinder block. It senses engine knocking using a piezoelectric element. A knocking vibration from the cylinder block is sensed as vibration pressure. This pressure is converted into a voltage signal and sent to the ECM.
