Commercial Service Tools

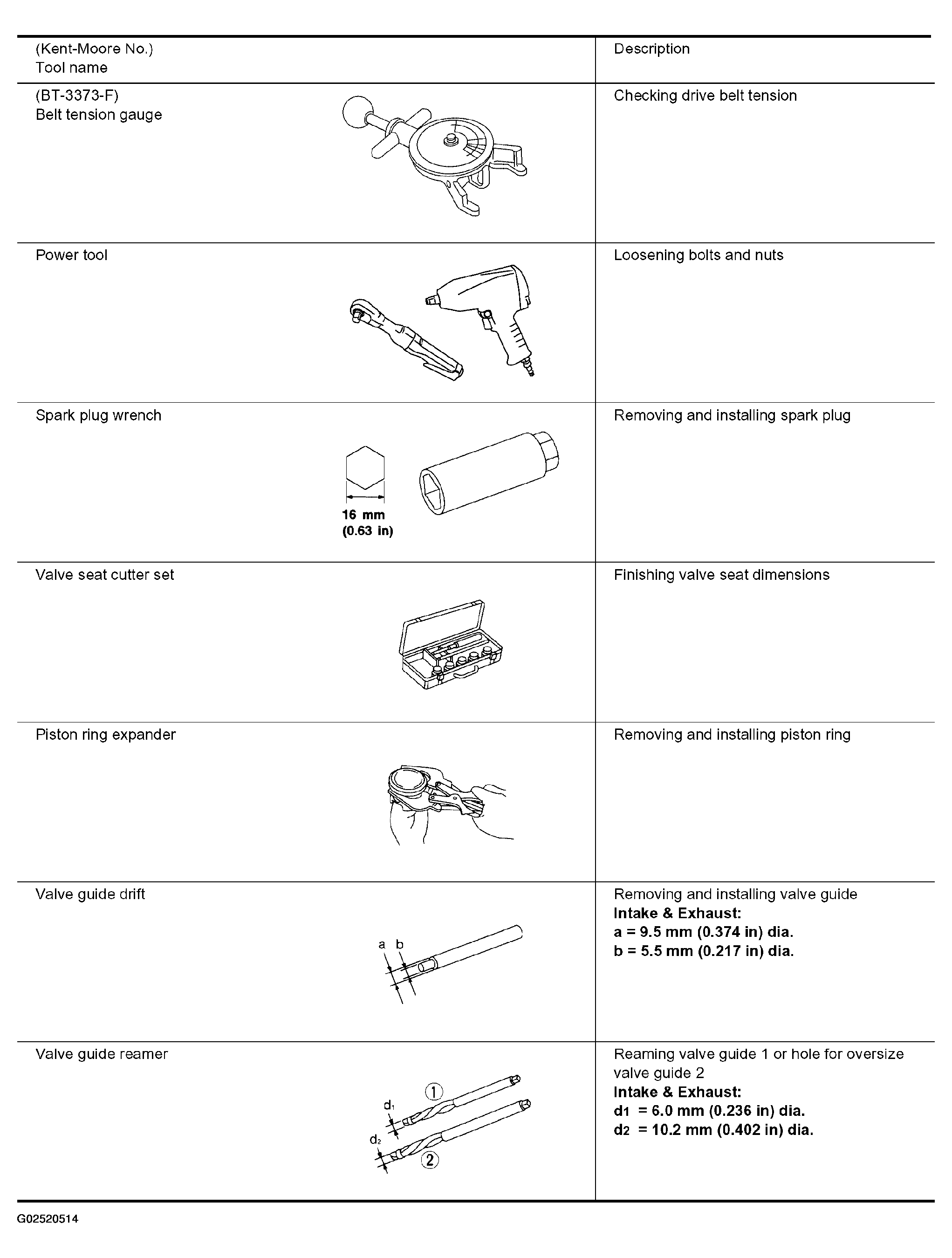

Fig 1: Identifying Commercial Service Tools (1 Of 2)
G02520514Courtesy of NISSAN MOTOR CO., U.S.A.

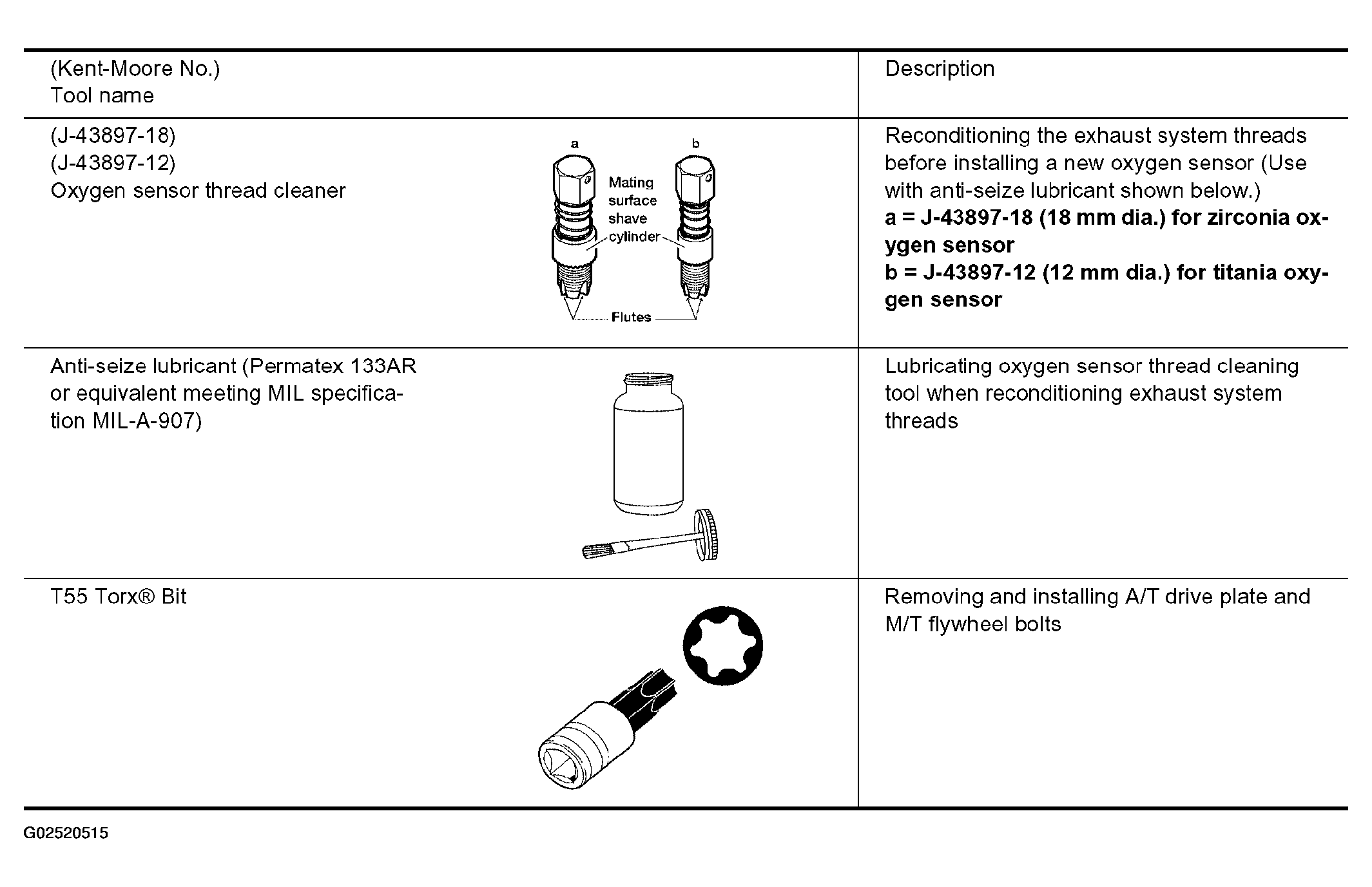

Fig 2: Identifying Commercial Service Tools (2 Of 2)
G02520515Courtesy of NISSAN MOTOR CO., U.S.A.
