Removal and Installation: Notes

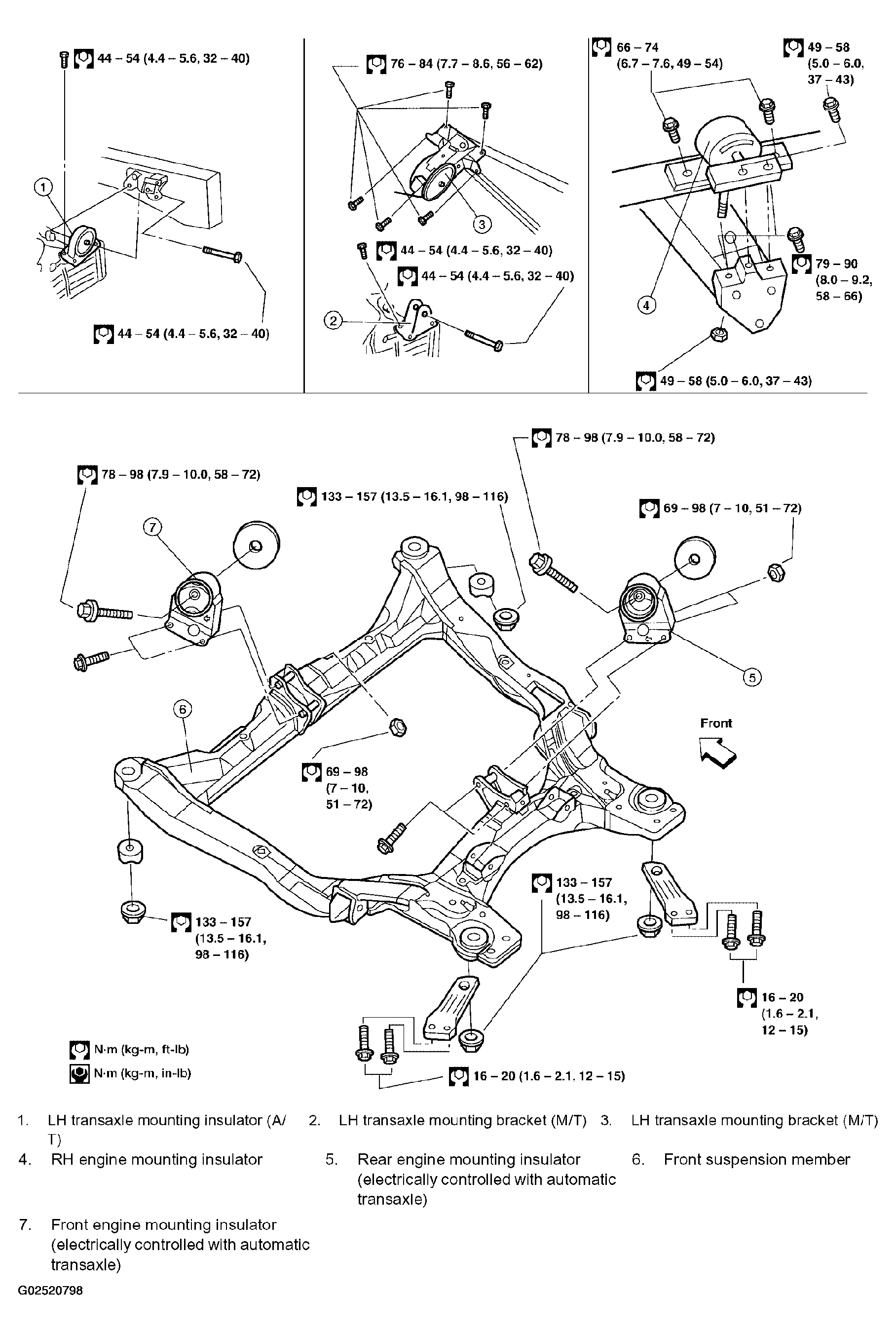

Fig 1: Engine Assembly Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING:

Place chocks at Front and back of rear wheels.
For engines not equipped with engine slingers, attach proper slingers and bolts as described in the NISSAN Parts Catalog.

CAUTION:

Do not start working until exhaust system and coolant are cool.
If items or work required are not covered by the engine main body section, refer to the .
Use the correct supporting points for lifting and jacking. Refer to " LIFTING POINT ".
In removing the drive shafts, be careful not to damage any transaxle grease seals.
Before separating the engine and transaxle, remove the crankshaft position sensor (POS).
Do not damage the edge of the crankshaft position sensor (POS) or the ring gear teeth.
