Disassembly and Assembly: Notes

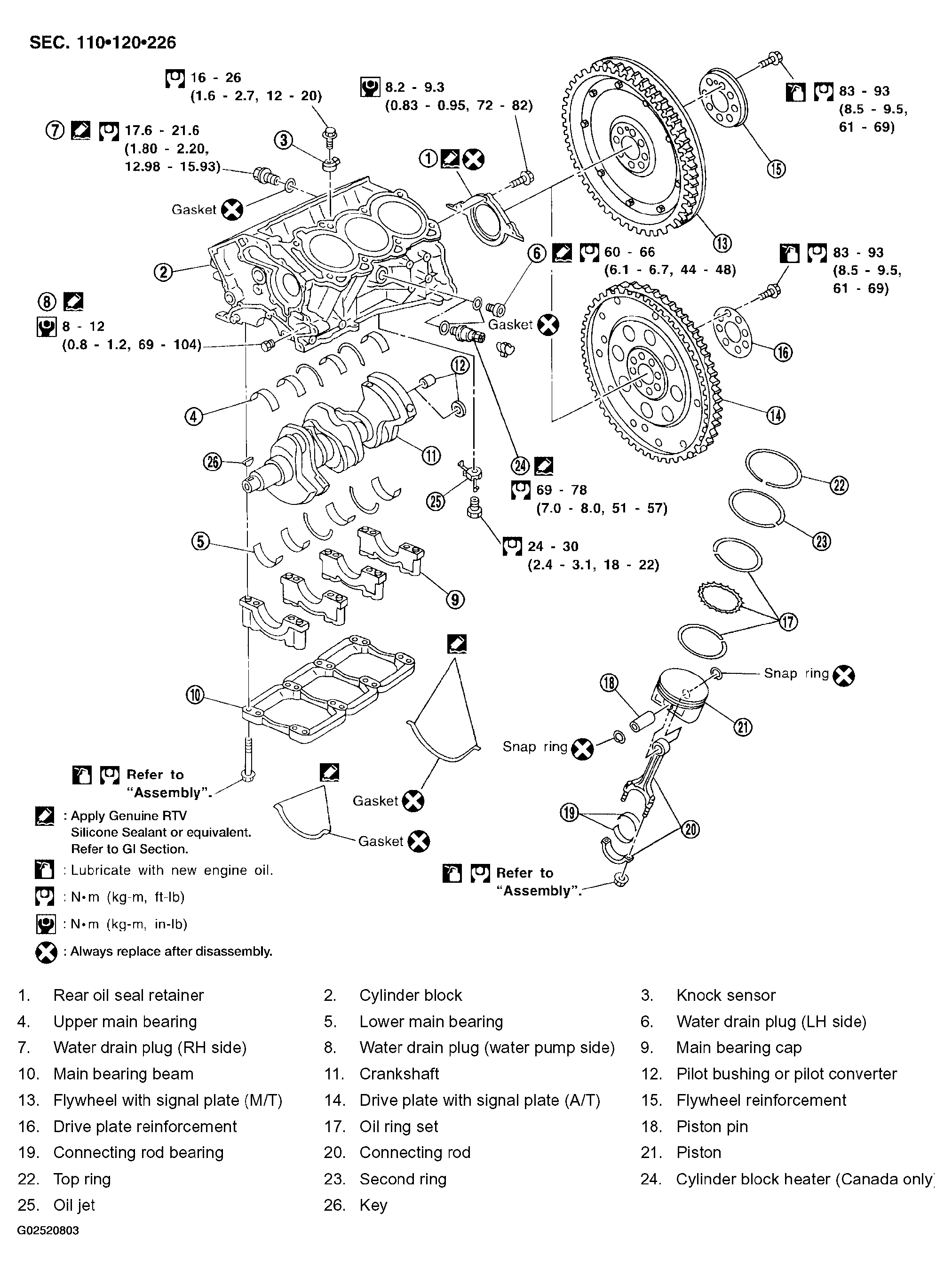

Fig 1: Exploded View Of Cylinder Block & Torque Specifications
G02520803Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Apply new engine oil to parts as marked in illustrations before installation.
  • Place removed parts such as bearings and bearing caps in their proper order and direction.
  • When installing the connecting rod nuts, and main bearing cap bolts, apply new engine oil to the threads and mating surfaces
  • Do not allow any magnetic materials to contact the signal plate teeth on the drive plate.
