Terminals And Reference Value For BCM

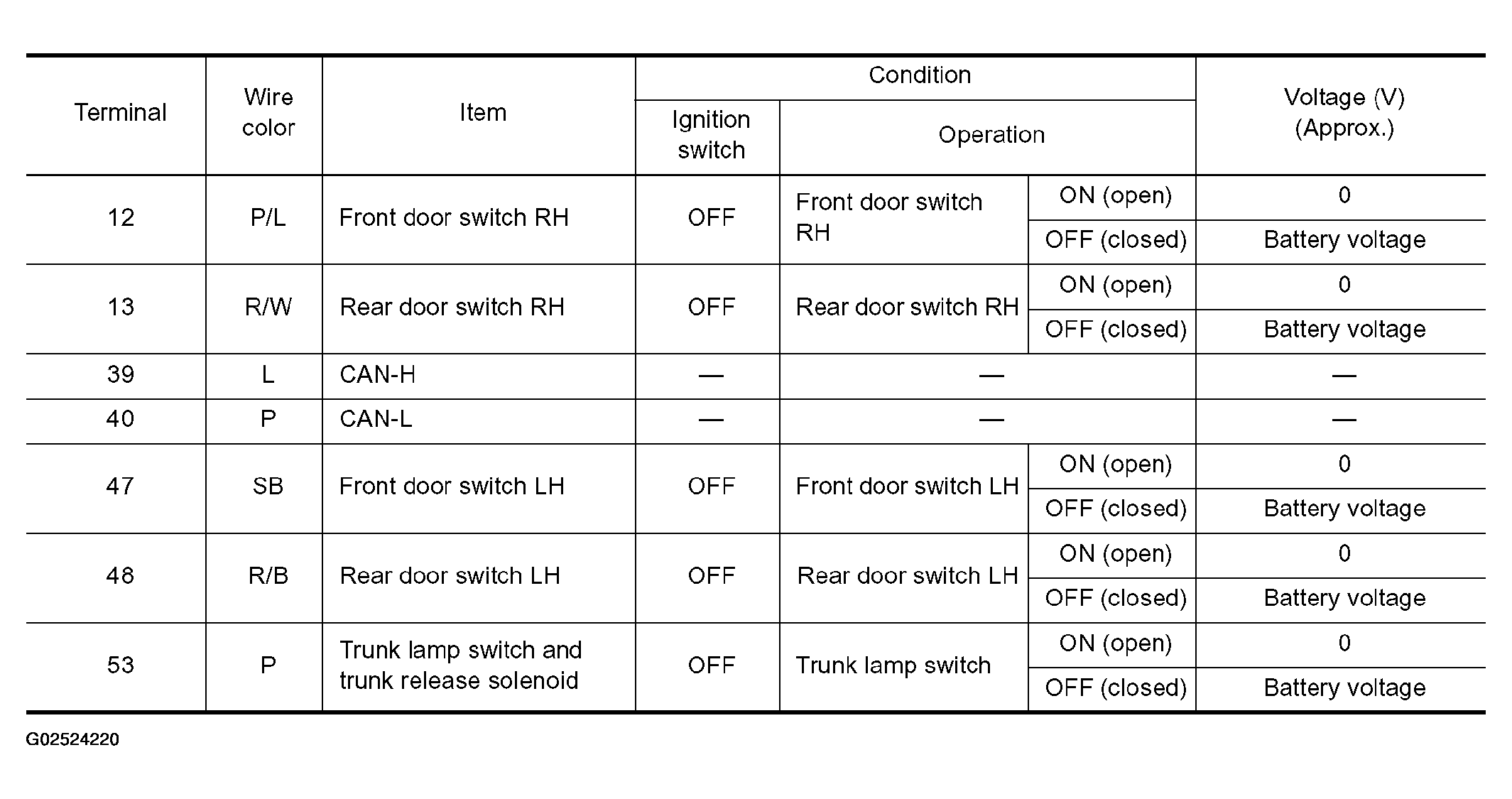

Fig 1: BCM Terminals And Reference Value Chart

G02524220

Courtesy of NISSAN MOTOR CO., U.S.A.
