Terminals and Reference Value for BCM

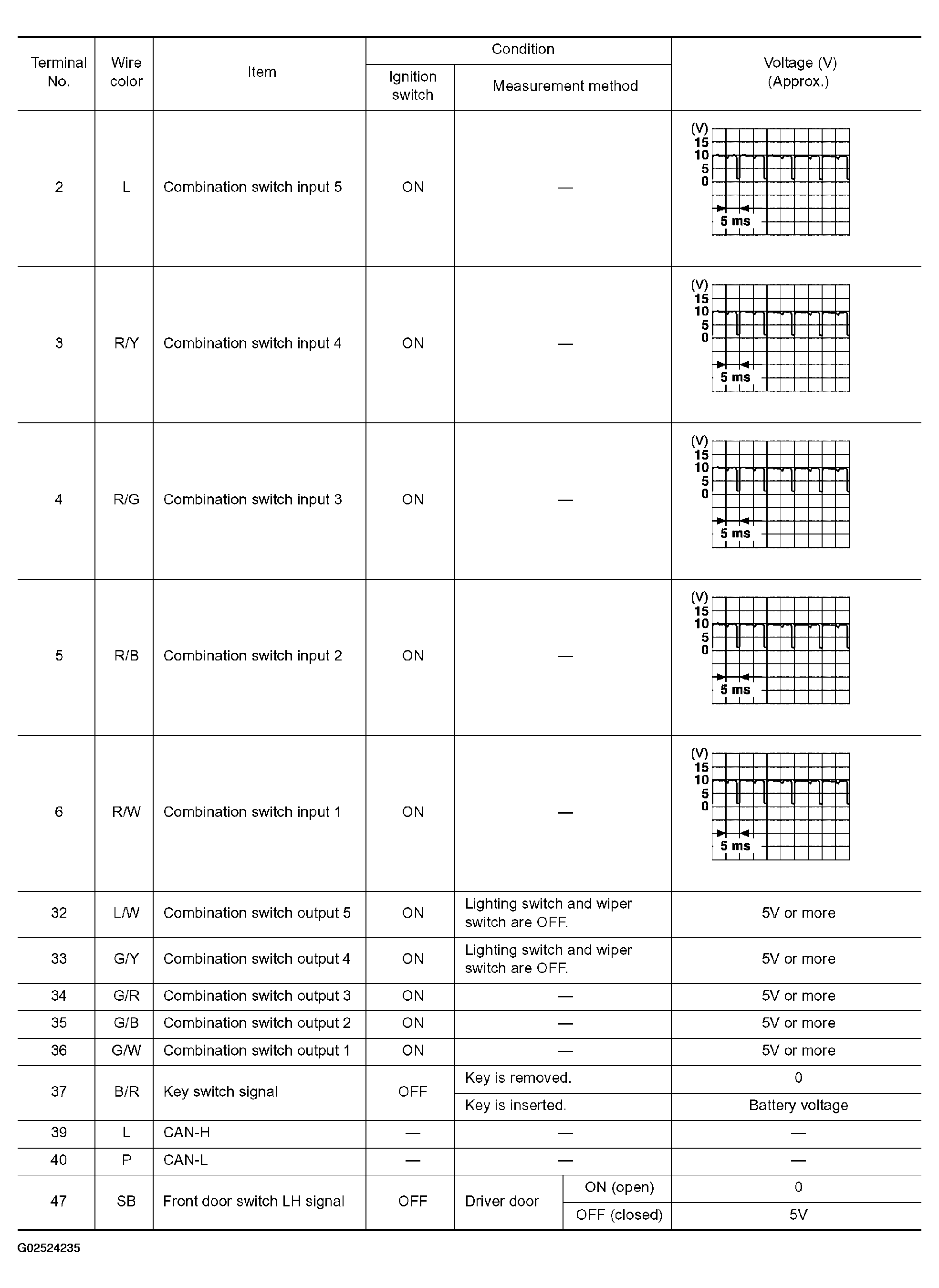

Fig 1: BCM Terminals And Reference Value Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: BCM Terminals And Reference Value Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
