All Warnings Are Not Operated

Select "BUZZER" on CONSULT-II, and perform "LIGHT WARN ALM", "IGN KEY WARN ALM", or "SEAT BELT WARN TEST" active test.

Does chime sound?

• YES: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
• NO: GO TO 2.

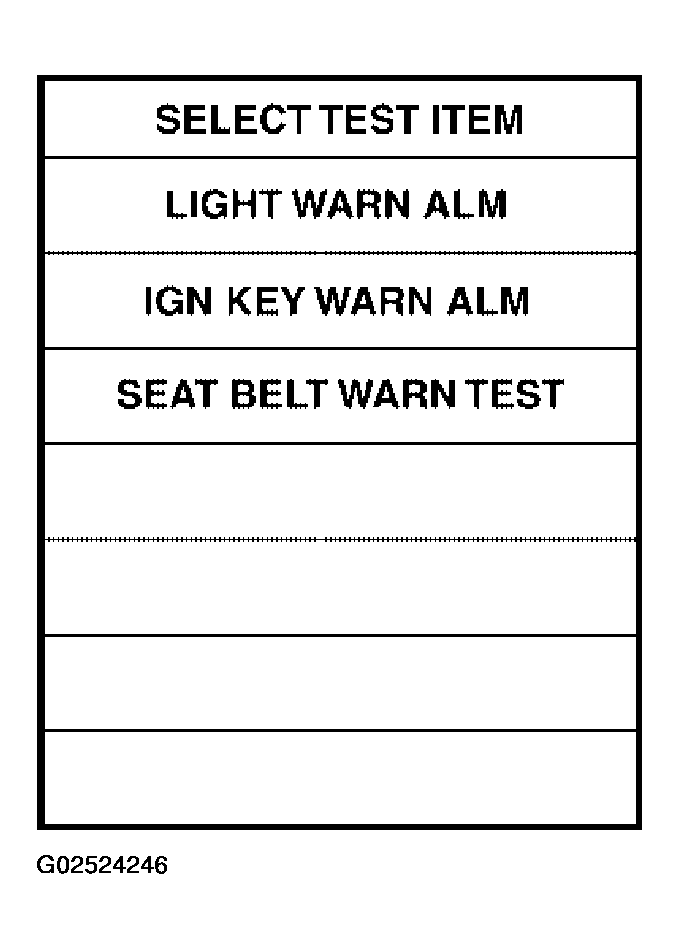

Fig 1: Identifying Scan Tools Display (Select Test Item)

Courtesy of NISSAN MOTOR CO., U.S.A.

Select "BCM" on CONSULT-II, and perform BCM self-diagnosis.

Self-diagnostic results content

No malfunction detected: Replace combination meter. Refer to "COMBINATION METER ".

CAN communication or CAN communication system: Check BCM CAN communication system. Go to "CAN COMMUNICATION ".

Diagnosis 1 - 5 systems open circuit: Malfunction in combination switch system. Go to "COMBINATION SWITCH READING FUNCTION " according to self-diagnostic results.
