M/T Models: Installation

Installation is in the reverse order of removal.

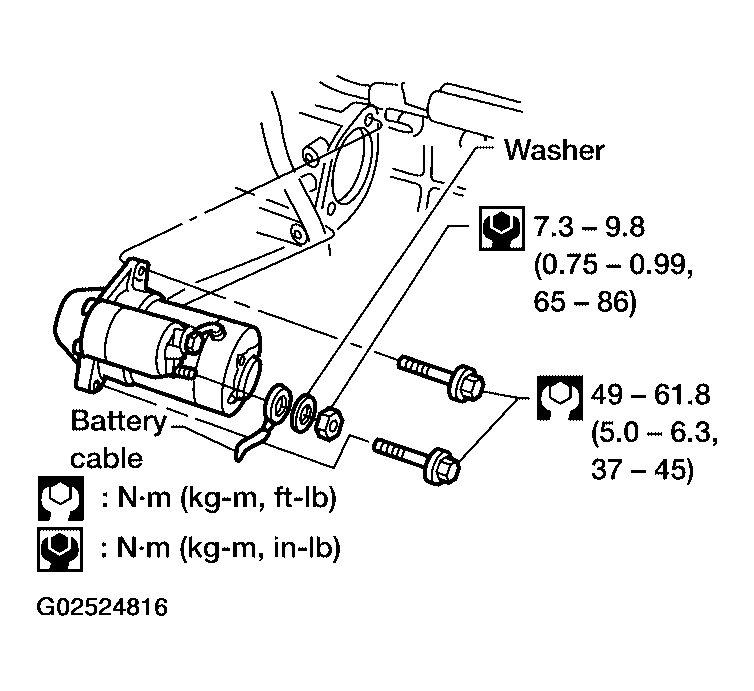

Fig 1: Installing Starter Motor With Torque Specifications

G02524816

Courtesy of NISSAN MOTOR CO., U.S.A.
