Nissan-Datsun
>>
2005
>>
Altima SE-R, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Brake Control System - TCS/Abs
>>
Actuator And Electric Unit (Assembly)
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

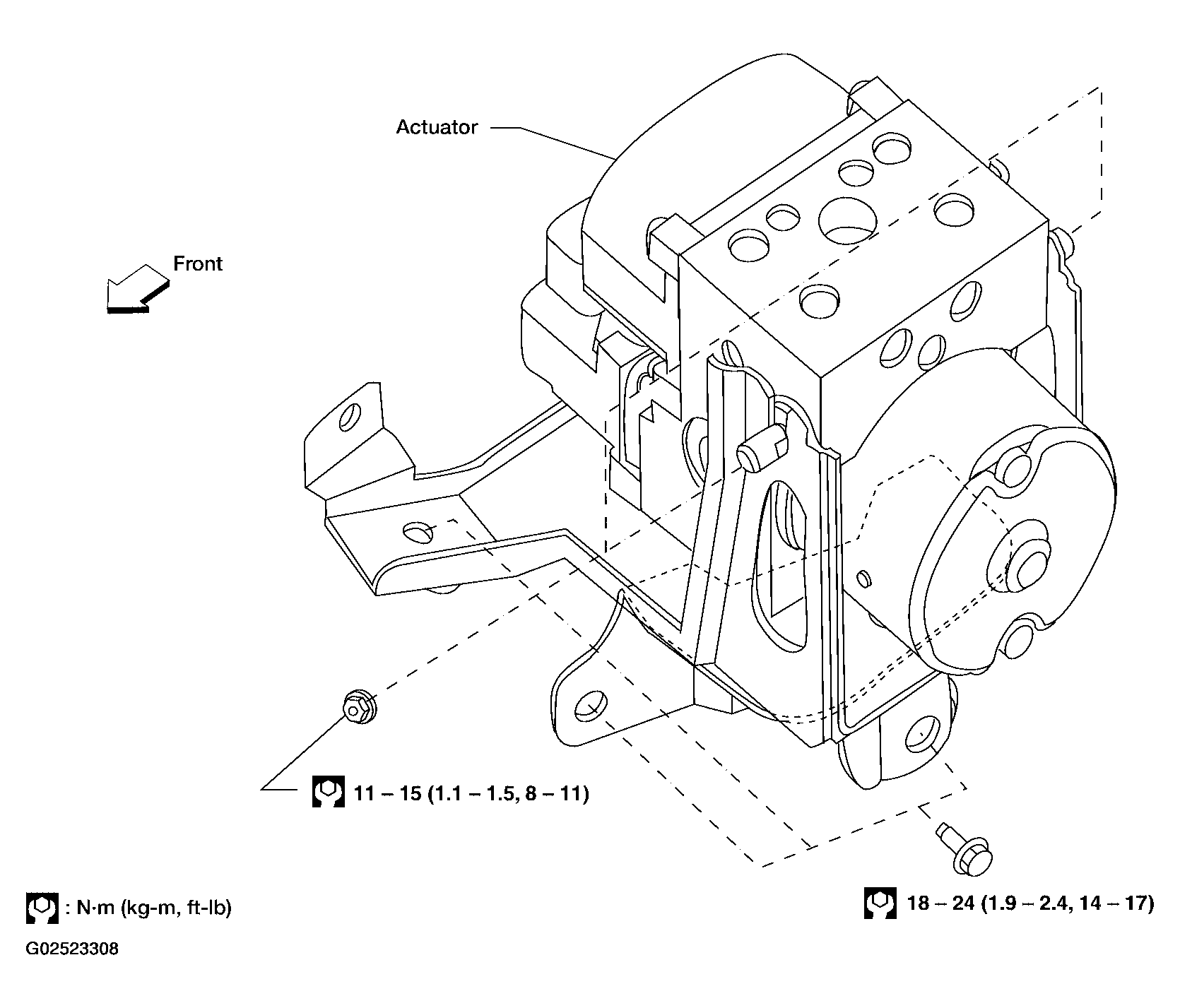

Fig 1: Identifying Actuator And Electric Unit (Assembly)
Courtesy of NISSAN MOTOR CO., U.S.A.
