Home >> Nissan-Datsun >> 2005 >> Altima SE-R, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass, Window System & Mirrors >> Rear Window Defogger >> Terminal and Reference Value for BCM

Terminal and Reference Value for BCM

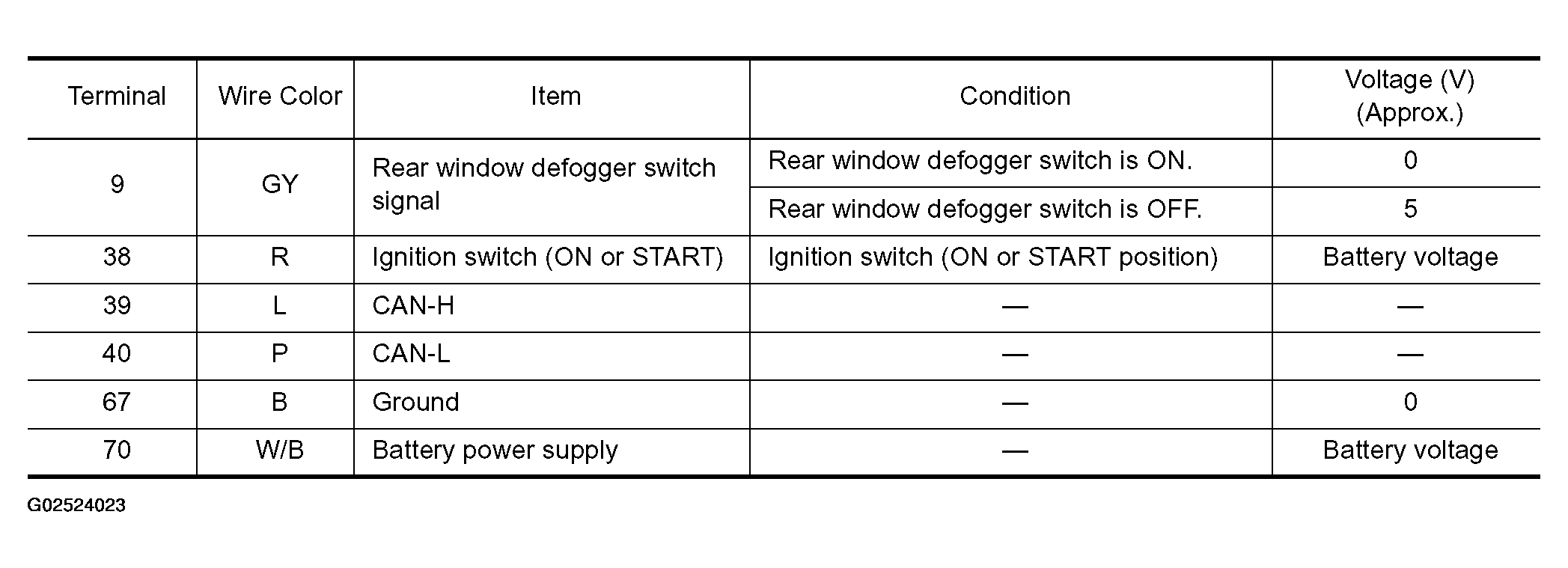

Fig 1: Terminal And Reference Value For BCM Table

G02524023

Courtesy of NISSAN MOTOR CO., U.S.A.
