Rear Door Lock: Components

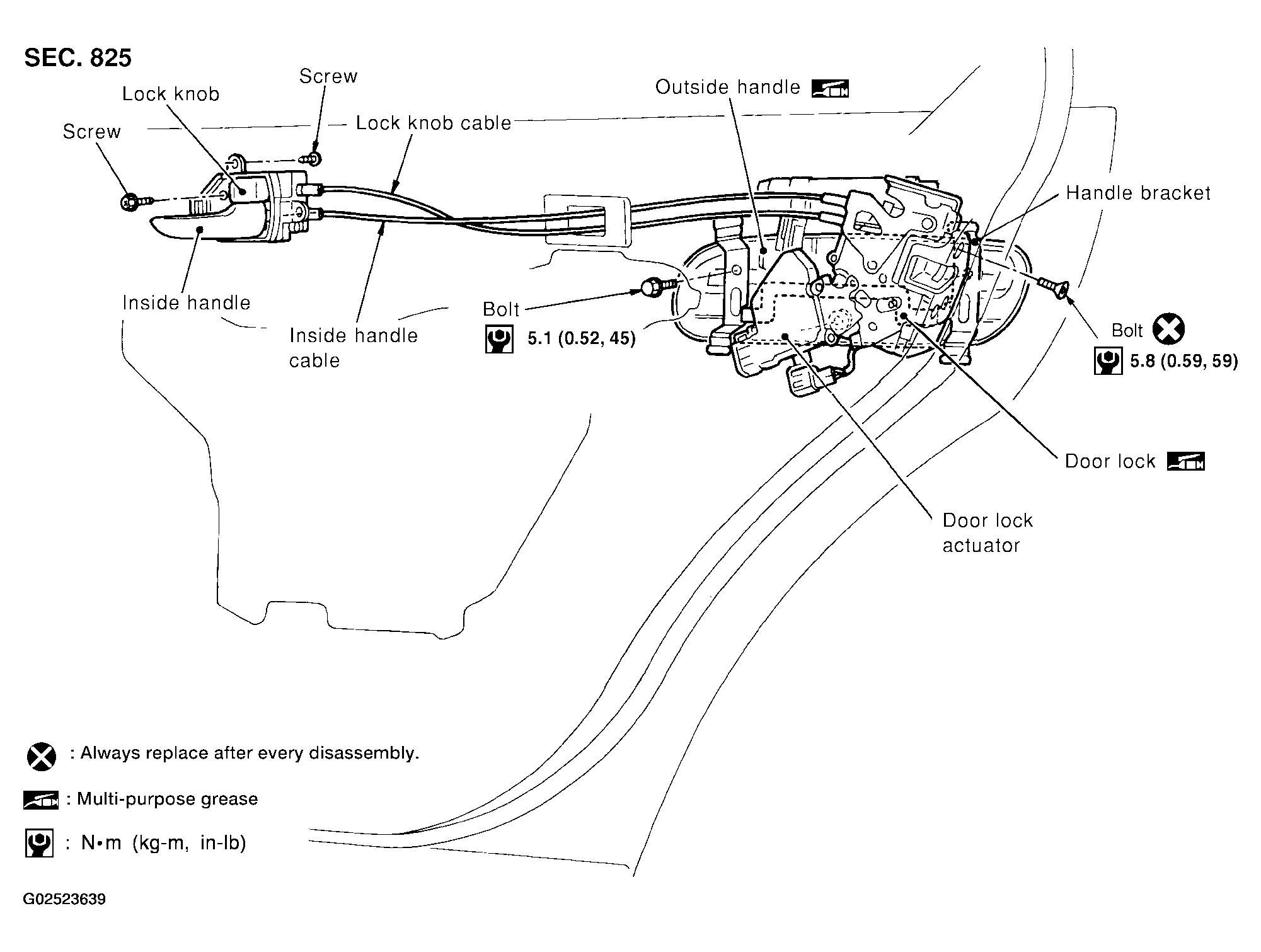

Fig 1: Identifying Rear Door Lock Components

G02523639

Courtesy of NISSAN MOTOR CO., U.S.A.
