Power Door Lock System: Schematic

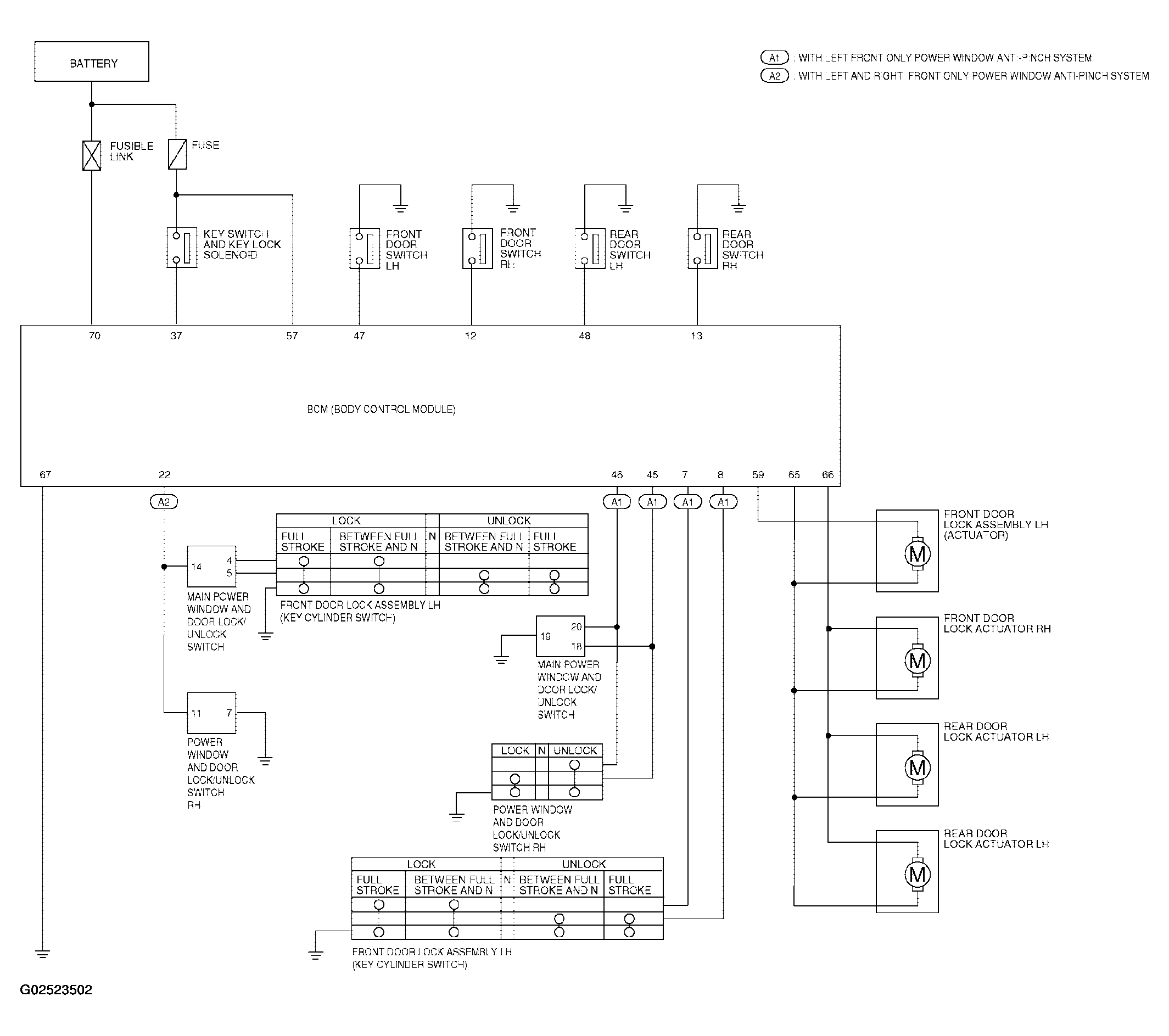

Fig 1: Identifying Power Door Lock Schematic

G02523502

Courtesy of NISSAN MOTOR CO., U.S.A.
